28U Single Wall Anticorrosive Outdoor Telecom Cabinet Theftproof

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  28U Single Wall Anticorrosive Outdoor Telecom Cabinet Theftproof

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET6565150-EQ
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case with Pallet
Delivery Time: 15 to 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1800PCS per month
Detailed Product Description
Dimension: W×D×H 650×650×1500mm Material: Galvanized Steel,single Wall Without Insulation
Surface: Outdoor Powder Coating, Anti-corrosion Door: One Front Door, Hidden Zinc Alloy Hinge
IP Level: IP55 User Space: 28U
High Light:

Anticorrosive Outdoor Telecom Cabinet


Single Wall Outdoor Telecom Cabinet


Theftproof Base Station Enclosure


28U Single Wall Steel Anticorrosive Outdoor Telecom Cabinet IP55 Theftproof Base Station Enclosure




The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.


The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.




● Short construction period, less land occupation, broader application and lower construction cost

● High integration, compact structure, easy installation and migration on later stage

● High-performance cooling solution

● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device

● Perfect air duct design to avoid cold and hot gas mixed flow effectively

● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor and tilt & shock sensor

● Professional outdoor anti- corrosion powder coating, strong weather resistance

● Independent environmental monitoring system can realize remote real-time monitoring and human intervention on the equipment in the cabinet. And can be designed to achieve remote maintenance and detection capabilities, thus greatly reducing the operation and maintenance costs of the later period.




The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.


Technical Parameters


Configuration Item Technical Parameter
Cabinet Body Model ET6565150-EQ
Size External Size: 650mm×650mm×1500mm(W×D×H)
Component The whole cabinet is composed of two parts: top cover and cabinet body. The installation method is ground mounted.
Material Galvanized steel, 1.5mm thickness
  • Single wall
  • One front door, hidden zinc alloy hinge
  • Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device
  • Door stopper / wind lock is installed on the inside of the cabinet door
  • Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof
  • The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced.
  • Include standard 19“ rack inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made.
  • Equipped with cable manager
  • Cable inlets at the bottom of cabinet
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Outdoor polyester light grey RAL 7035 coating or custom made
Ingress Protection IP55 or custom made
Working Temperature -40°C~+75°C
Cooling Method Compressor Air Conditioner /
Heat Exchanger /
TEC Air Conditioner /
Fan /
Ventilation Louver Located on the left and right side. Inside the louver can install fan.






Monitoring Unit /
Smoke Sensor /
Vibration Sensor /
Water Sensor /
Door Sensor When unlawfully opened, provide real-time alarm.
Temperature & Humidity Sensor /
Other /
Other Illumination LED light, 48VDC, including one lamp switch

Dimension Diagram


28U Single Wall Anticorrosive Outdoor Telecom Cabinet Theftproof 0

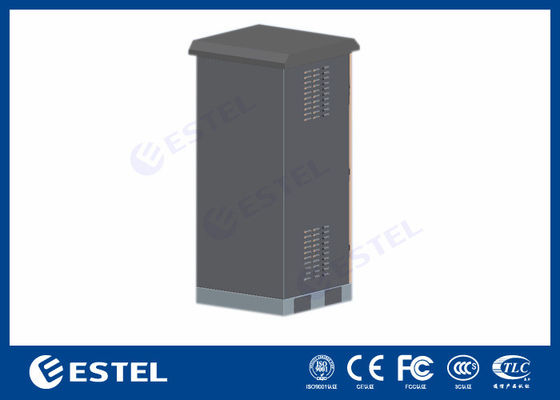

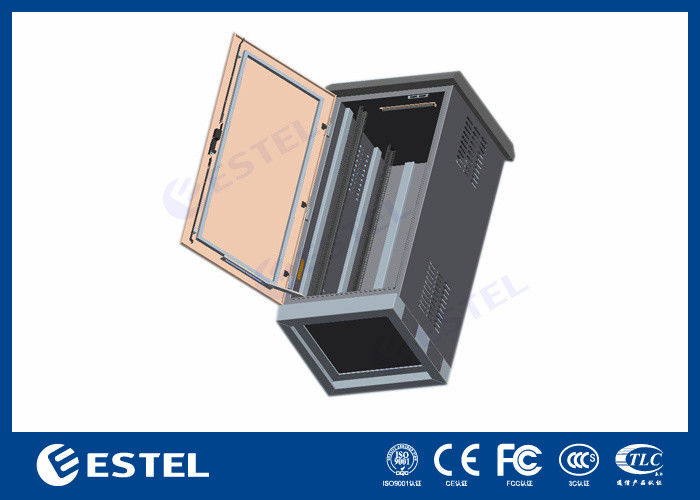

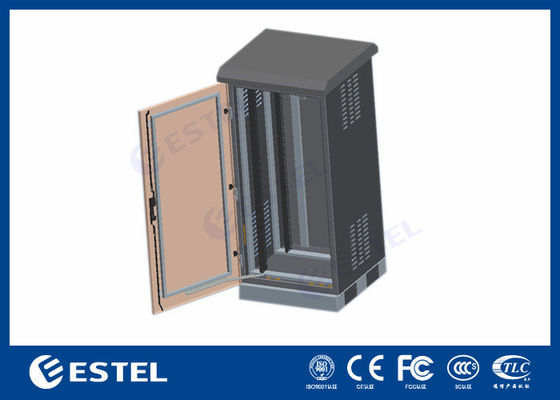

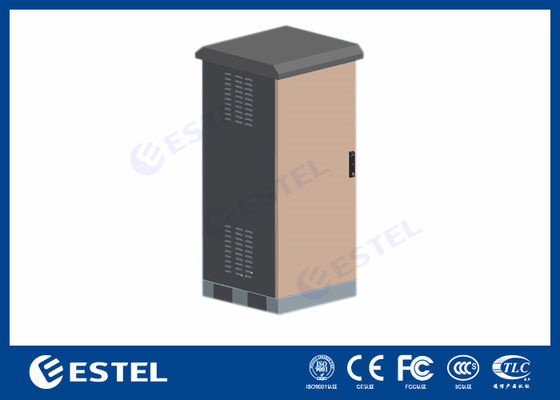

3D Drawing


28U Single Wall Anticorrosive Outdoor Telecom Cabinet Theftproof 1

28U Single Wall Anticorrosive Outdoor Telecom Cabinet Theftproof 2

28U Single Wall Anticorrosive Outdoor Telecom Cabinet Theftproof 3
