1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment

1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment
1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment 1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment 1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment 1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment 1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment

Large Image :  1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET7077100-EQB
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Depending on order quantity
Packaging Details: Wooden case
Delivery Time: 20 to 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets per month
Detailed Product Description
Protection: IP55 Exterior Dimension: 700×770×1000mm (W×D×H)
Rack Space: 15U Thermal Management: Fan And Filter
Material: 1.5mm Thick Electro-galvanized Steel (corrosion-resistant) Door: Two Doors: One Front Door And One Rear Door
Paint: Outdoor Polyester Light Gray RAL7035 Coating Cable Entry: Bottom Back Cable Access Through 6×PG29 Glands.
High Light:

IP55 Outdoor Solar Cabinet

,

15U Outdoor Solar Cabinet

,

1.5mm 19 Inch Equipment Cabinet



15U IP55 Outdoor Solar Cabinet for 19 inch Equipment With Front And Rear Door



Model: ET7077100-EQB





Introduction





The outdoor solar cabinet is new generation designed to fit customer needs, configuration flexibility and supports variety of applications. The cabinet is well suited for power, batteries and telecom equipment.



The outdoor solar cabinet is designed to protect equipments from external climate threats such as high temperature, snow, rain, wind etc.





Applications





The outdoor cabinet is well suited for a wide range of telecom applications such as:



• Radio access networks (2G, 3G, 4G/LTE/WiMax)

• Optical networks

• Cable TV

• DSL

• SCADA

• Solar power for telecom energy solution

The cabinet works very well as stand-alone power and/or battery backup solution and provides additional space for telecom equipment.





Features



● 19” rail, 15RU, to fit 19” equipment

● Dust and water protection rate: IP55

● Single bay cabinet suitable for: DC power, battery backup, telecom equipment, or combination of above

● Galvanized steel construction

● Powder coat paint, corrosion resistant

● Thermal management: fan and filter

● Fan thermostat to control fan start working temperature

● Cabinet have two doors: front door and rear door

● Wide range of options:

   Thermal insulation

   Door switch

   Document holder

   Smoke detector

   AC service socket

   Service light

   And more.





Technical Specs



Item Type Technical Parameter
Physical Specifications Exterior Dimensions (W×D×H) 700×770×1000mm
Weight 83KG
Rack Space 15U
Thermal Management System Thermal Management Fan and filter. With optional heater.
Construction Skin Material 1.5mm thick electro-galvanized steel (corrosion-resistant)
Frame Material 2.0mm galvanized steel
Powder Coat Paint Outdoor Polyester Light Gray RAL7035 coating
Door Two doors One front door and one rear door
Latches Four point latched
Gasket Door gasket rated for outdoor use
Door Stop Wind latch to hold door during maintenance (120⁰)
Other Specs Thermal Insulation Optional thermal insulation
Cable Entry

Bottom back cable access through 6×PG29 glands.

Various glands available upon request.

Plinth Footprint(W×D): 700×770mm, height:154mm
Other Options Door switch, document folder, smoke detector, AC service socket, service light, etc.




Dimension

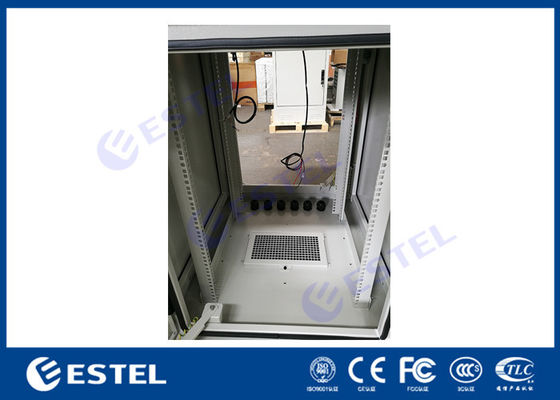

1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment 0

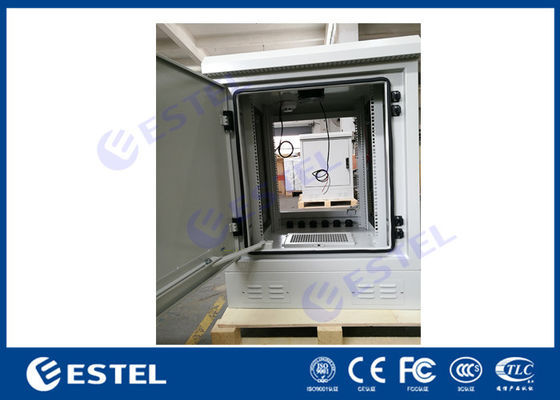

1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment 1

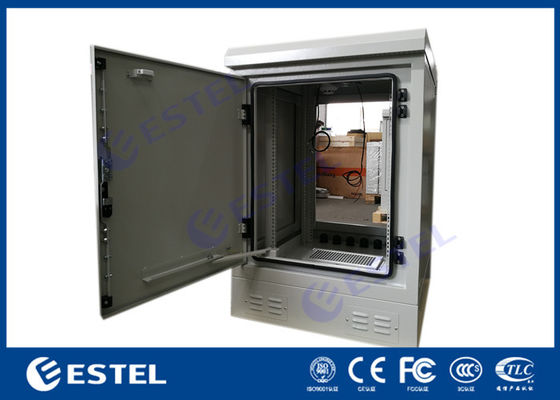

1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment 2

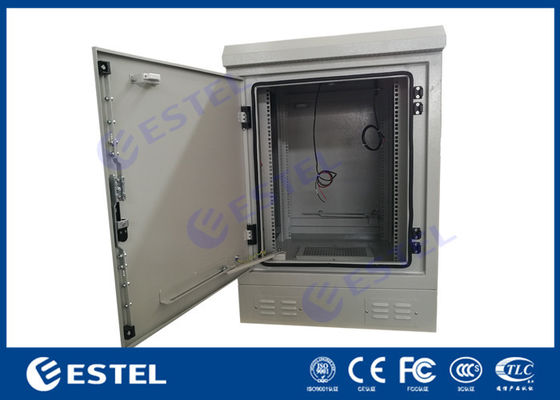

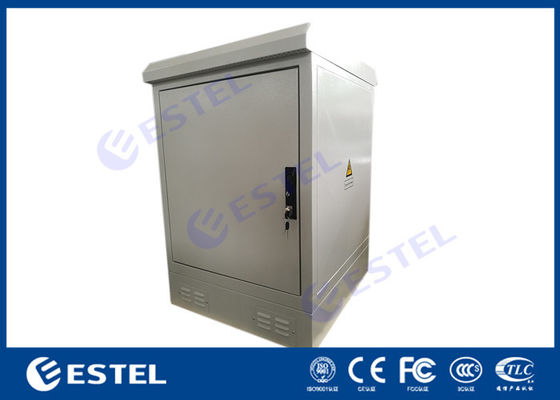

1.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment 31.5mm 15U IP55 Outdoor Solar Cabinet For 19 Inch Equipment 4
