Fan Cooling Galvanized Steel 42U Outdoor Telecom Cabinet
  • Fan Cooling Galvanized Steel 42U Outdoor Telecom Cabinet
  • Fan Cooling Galvanized Steel 42U Outdoor Telecom Cabinet
  • Fan Cooling Galvanized Steel 42U Outdoor Telecom Cabinet

Fan Cooling Galvanized Steel 42U Outdoor Telecom Cabinet

Place of Origin Shenzhen, China (Mainland)
Brand Name ESTEL
Certification ISO9001, CE, 3C, FCC, TLC, IP55
Model Number 331090921050009
Product Details
Material:
Galvanized Steel
Protection Level:
IP55
Cooling System:
Air Conditioner
Structure:
One Compartment
Cabinet Door:
One Front Door
Cable Entry:
From Cabinet Bottom
Door Lock:
Anti-theft Three Point Lock
Certificates:
CE
High Light:

42U Outdoor Telecom Cabinet

,

Galvanized Steel Outdoor Telecom Cabinet

,

Fan Cooling Outdoor Data Cabinet

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
15-20 working days
Payment Terms
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability
8,000 sets per month
Product Description



42U Air Conditioner Cooling Outdoor Power Cabinet Includes Racks And Shelves



1. Cabinet Instruction



The outdoor power cabinet is widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G.This series outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub. We provide the Outdoor Cabinet, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.



2. Cabinet Parameters



Item Type Technical Parameter
Structure Dimension

External Dimension W×D×H 900×900×2100mm

Layout One compartment;upper part is for equipments and lower part is for batteries
Equipment Installation Method 19” standard rack and battery shelves
Door One front door,with three point lock for outdoor cabinet (support padlock)
Material

Galvanized steel,double wall

Structure Assembled
Ingress Protection IP55
Temperature Control Cooling Air conditioner
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2



3. Cabinet Features



  • External Dimension is W×D×H 900×900×2100mm
  • Galvanized steel,double wall
  • Anti-theft three point lock
  • The cabinet includes 19” standard installation rack and battery shelves
  • The cabinet cooling uses 2 air conditioners.
  • Including -48VDC illumination lamp.
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
  • At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
  • IP55 protection level.



4. Cable Inlet



All feeder cable and other external cables all use bottom wiring method.



Fan Cooling Galvanized Steel 42U Outdoor Telecom Cabinet 0

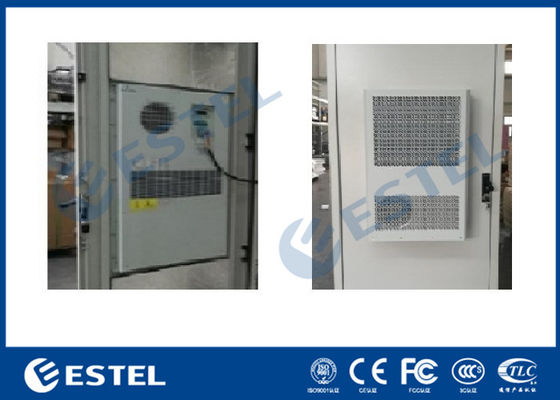

5. Cooling System



There is one air conditioners,which is 1500W cooling capacity , installed on the front door of the cabinet.



Fan Cooling Galvanized Steel 42U Outdoor Telecom Cabinet 1



6.Internal Installation



The cabinet includes 19" rack and battery shelves.



7. Cabinet Production



Fan Cooling Galvanized Steel 42U Outdoor Telecom Cabinet 2



8. Cabinet Package



Wooden case with pallets



Fan Cooling Galvanized Steel 42U Outdoor Telecom Cabinet 3
