| Place of Origin | Place of Origin: Shenzhen,China (Mainland) |
| Brand Name | ESTEL |
| Certification | ISO9001,CE,3C,FCC,TLC |
| Model Number | 333160816050001 |

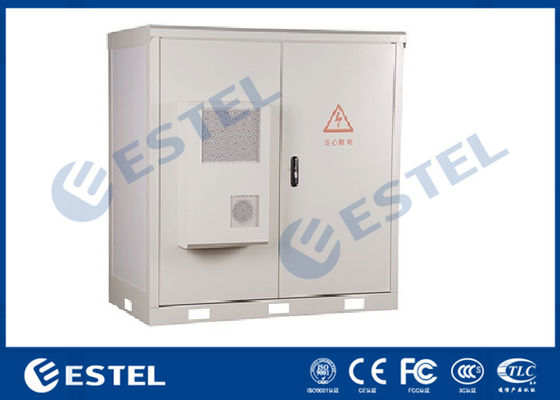

IP65 Air Conditioner Cooling System Outdoor Control Cabinet Two Compartments
1.Cabinet Description
This series two compartments outdoor cabinet is a perfect combination of quality and styling that shields your system effectively and presents it in an attractive package of which you can be proud. They can protect equipment against things like dust, heat, water, or other environmental hazards.
This series two compartments outdoor cabinet offers standard 19” racking rails, is a new design for telecom projects and surveillance projects. These enclosures have provision of floor mounting. This series enclosures offer all the protection needed for outdoor requirements. Ultimate security is provided by a three-point locking system.
2.Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | H×W×D 1600×800×1600mm |
| Layout | Two compartments (left compartment and right compartment, with middle division plate). | |
| Equipment Installation Method | Left compartment: 19” rack; right compartment: 19” rack and battery shelf | |
| Door | With two front doors, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; Double wall | |
| Heat Insulation | 20mm PEF. | |
| Structure | Assembled | |
| Ingress Protection | IP65 | |
| Temperature Control | Cooling | air conditioner |
| Lighting | LED lamp | 48V LED lamps; The lamps will be on when the cabinet door is open, and will be off when the cabinet door is closed. |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
3. Oil Socket
There is one oil socket inside of the cabinet.
4.Cooling System
There is one air conditioner with 2000W cooling capacity installed on the front door.
6. Cabinet Package
Wooden case with pallets
