|Material:||Galvanized Steel, Double Wall With Insulation||Door Type:||With One Front Door|
|External Dimension:||W×D×H 900×900mm×2000mm||Ingress Protection:||IP55|
|Temperature Control:||Air Conditioner And Fan||Package:||Wooden Case With Pallets|
telecom equipment cabinet,
outdoor telecom enclosure

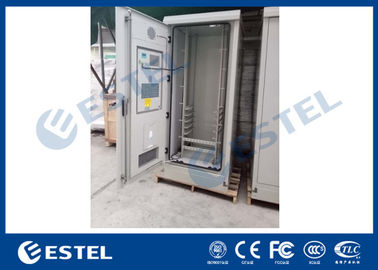

Galvanized Steel Double Wall Outdoor Telecom Cabinet With Air Conditioner And Fan
1. Cabinet Application
This series outdoor telecom cabinet is made of galvaznied steel,it is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2. Cabinet Parameters
|Component||The whole cabinet includes three parts: the top cover, the cabinet body and the base. The installation method is floor mount.|
|Material||Galvanized steel,double wall with heat insulation.|
|Surface Treatment||Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification|
|Color||Anti-corrosion outdoor powder coating RAL7035|
Cooling capacity: 1000W; Power Supply: DC48V;
Installed on front door
|Fan||DC48V,installed on the front door|
|Package||Package||Wooden case with pallets|
3. Cabinet Key Features
(1) Galvanized Steel, double wall with insulation.
(2) Cabinet cooling system: air conditioner with 1000W cooling capacity and fan.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5)Protection grade :IP55.
(6)Security design: Embedded doors, embedded hinges, 3-point security locks.
4. Cooling System
There is one 1000W cooling capacity air conditioner and one fan installed on the front door.
5. Cabinet Instruction
There is one door sensor installed inside of the cabinet
There is one led installed on the top of the cabinet

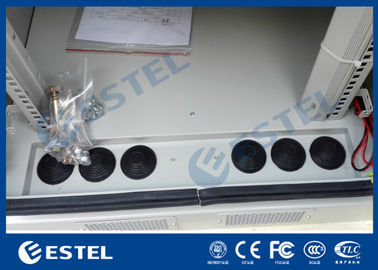

There are cable inlets at the bottom of the cabinet
6. Cabinet Package
Wooden case with pallets.
