Product Details:
Payment & Shipping Terms:
|
| Application: | Outdoor Telecom Site | Material: | Galvanized Steel, Single Wall With Heat Insulation |
|---|---|---|---|
| Space: | 33U 19" Rack | Coating: | Anti-corrosion Polyester Outdoor Powder Coating |
| Protection Level: | IP65 | Type: | Telecom Outdoor Cabinet,Outdoor Cabinet For BTS |
| Color: | RAL7035 GREY | Cooling System: | 500W 1000W 1500W 2000W Compressed Air Conditioner |
| Size: | 700x800x33U | ||
| Highlight: | outdoor communication cabinets,outdoor telecom enclosure,Thermostatic Telecom Enclosure |
||

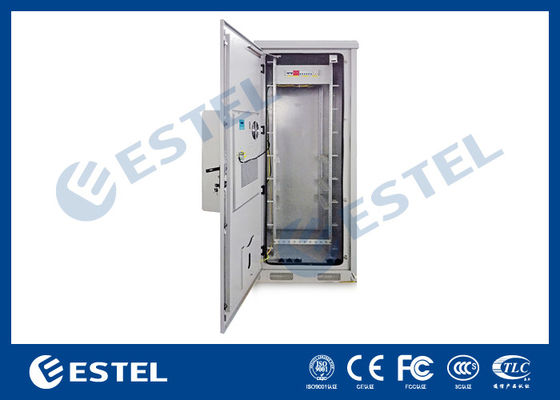

IP65 33U Thermostatic Outdoor Telecom Cabinet / Outdoor Communication Cabinet / Outdoor Telecom Enclosure
Summary
● The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
Features
●Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● High-performance cooling solution
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● Professional outdoor anti- corrosion powder coating, strong weather resistance
Technics
● The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET7080180-EQ |
| Size | External Size W×D×H: 700mm×800mm×1800mm (19”,33U) | |
| Component | The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount. | |
| Material | Galvanized steel, single wall with heat insulation. | |
| Structure |
|
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Grey | |
| Ingress Protection | IP65 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Compressor Air Conditioner | AC220V, 50Hz 1000W |
| Heat Exchanger | / | |
| TEC Air Conditioner | / | |
| Fan | / | |
| Monitoring | Monitoring Unit | / |
| Smoke Sensor | / | |
| Vibration Sensor | / | |
| Water Sensor | / | |
| Door Sensor | / | |
| Temperature & Humidity Sensor | / | |
| Other | / | |
| Other | Illumination | LED light, 48VDC |
2D Drawing
Similar Pictures
