DC 60kw And AC 43KW Electric Car Charging Stations EV Charging Station Charger
Product Details
DC 60kw Electric Car Charging Stations
,AC 43KW Electric Car Charging Stations
,FCC EV Charging Station
3 Gun Ocpp Support DC60kw And AC43 Electric Charger Car Station Ev Charge Ev Charging Station Charger
1.Technical Parameters
The DC charger is in compliance with IEC 61851-1:2017, EN 61851-1:2010, EN 61851-23:2014, EN 61851-24:2014, IEC 61851-21-2:2018, GB/T18487.1-2015, and the corresponding communication standards GB/T 27930-2015, GB/T 34657.1-2017, GB/T 34658-2017. The communication protocol with central management system (CMS) is in compliance with OCPP 1.6 based on ARM architecture and Linux / Android platform.
The basic design of this DC charger series is in compliance with the IEC standards and the Chinese national standards.
Nomenclature: E3P-60K-AD3-100A-EU01
| 3P | Three phase input |
| 100A | Rated output power |
| AD3 | DC or AC output with 3 charging connector |
| DC100A AC63A | Rated current of charging connector |
| EU01 | version 02 |
2.Specification
| Item Number | 3P-60K-AD3-100A-EU01 | |
| Power input | Input rating | 400V 3ph 170A max. |
| Number of phase / wire | 3ph / L1,L2,L3,N,PE | |
| Power factor | >0.98 | |
| Current THD | <5% | |
| Efficiency | >95% | |
| Power output | Output power | DC gun: 60Kw + AC43KW |
| only one DC gun is available in a charging session. The AC charging gun is independent | ||
| Output rating | 200V-1000V DC + AC380V | |
| Protection | Protection | Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault |
| User interface & control | Display | 10” touch screen |
| Support language | English (Other languages available upon request) | |
| Charge option | Charge options to be provided upon request: Charge by duration, Charge by energy, Charge by fee | |

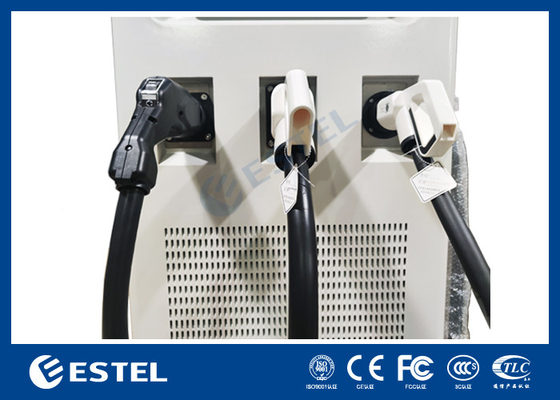

| Charging interface | DC1 ( CHAdeMO )/DC2 (CCS2) /AC1 (CCS2) | |
| User authentication | Paypal and (or) NFC card | |
| Communication | Network interface | Ethernet (standard); Wi-Fi, 4G (optional) |
| Open Charge Point Protocal | OCPP1.6 | |
| Environmental | Operating temperature | minus 20 ℃to+55℃ (derating when over 55℃) |
| Storage temperature | -40 ℃to+70℃ | |
| Humidity | < 95% relative humidity, non-condensing | |
| Altitude | Up to 2000 m (6000 feet) | |
| Mechanical | Ingress protection | IP54 |
| Enclosure Protection againstExternal Mechanical Impacts | IK10 according to IEC 62262 | |
| Cooling | Forced air | |
| Charging cable length | 5m | |
| Dimension (W*D*H) mm | 700*750*1750 | |
| Weight | 280kg | |
| Regulation | Certificate / Compliance | CE / EN 61851-1/-23 |
3.Service environment
Operation temperature: -20⁰C...+55⁰C
RH: 5%...95%
Attitude: <2000m
Installation environment: without strong magnetic interference.
Peripheral space: >0.1m

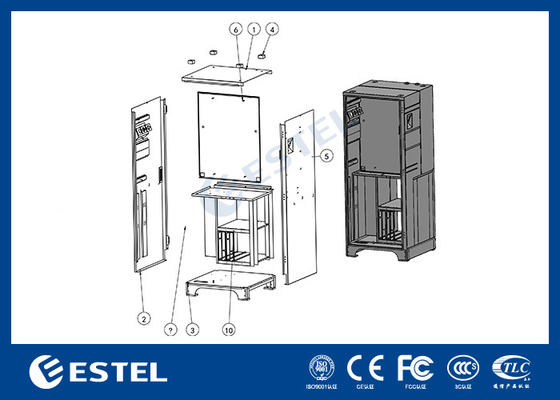

4.Dimension Diagram
5.installation condition
The charger should be installed on a flat concrete foundation, with a cable entrance reserved.
The vertical inclination is less than 5%.
Fix the bottom of the charger by eight M8 screws embedded in the foundation.
Keep at least 100cm spacing around the charger for heat dissipation and operation
An Awning is recommended.
6.Electrical connection
The electric supply system is 380VAC 3 phase Wye.
Connect the external cable to the internal terminals according to the symbol, La, Lb, Lc, N and PE (earthing).
Cross area of cable:
| Power of charger | Cross section area |
| 100kW | 3*50mm2+2*25mm2(LA LB LC / N+PE) |

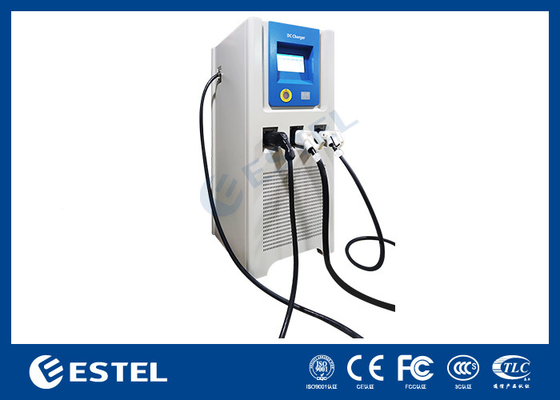

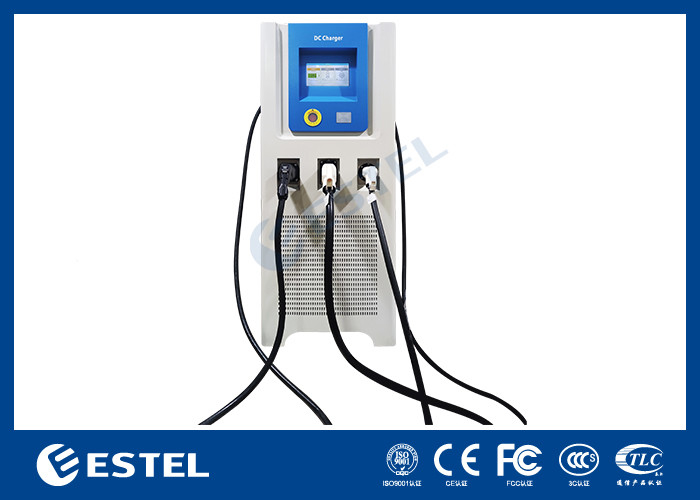

7.DC Charging Station Details
8.Project case presentation
9.
Packing
-
