IP55 Anti Corrosion network Outdoor Telecom Cabinet Power Distribution Unit

IP55 Anti Corrosion network Outdoor Telecom Cabinet Power Distribution Unit
IP55 Anti Corrosion network Outdoor Telecom Cabinet Power Distribution Unit IP55 Anti Corrosion network Outdoor Telecom Cabinet Power Distribution Unit IP55 Anti Corrosion network Outdoor Telecom Cabinet Power Distribution Unit

Large Image :  IP55 Anti Corrosion network Outdoor Telecom Cabinet Power Distribution Unit

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET7575175-EQ-1F
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: L/C, D/A, D/P, T/T, etc
Supply Ability: 5000 pcs/month
Detailed Product Description
Material: Galvanized Steel External Dimension: W×D×H 750×750×1750mm
Internal Dimension: W×D×H 650×650×1450mm (32U) Equipment Installation Method: 19” Rail
Door: With One Front Door Cooling: Fans
High Light:

Anti Corrosion Outdoor Telecom Cabinet

,

IP55 waterproof Outdoor Telecom Cabinet

,

Anti Corrosion outdoor network enclosure

IP55 Anti Corrosion network Outdoor Telecom Cabinet Power Distribution Unit



1. Description



Cabinets are floor mountable with bottom entry equipped for cable or conduit entrance. Input, output and remote alarm connections are wired to internal terminal lugs that are easily accessible.Output voltage, current limits and alarm levels are easily adjustable. Has the advantages of high integration, small floor area, flexible expansion, simple installation, energy saving, etc.



2. Features



1. Perfect air duct design to avoid cold and hot gas mixed flow effectively.

2. Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor, etc.

3. Professional outdoor anti- corrosion powder coating, strong weather resistance.

4. Independent environmental monitoring system can realize remote real-time monitoring.





3. Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Dimension: W×D×H 750×750×1750mm

Internal Dimension: W×D×H 650×650×1450mm (32U)

Layout 1 compartment
Equipment Installation Method 19” rail
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized Steel,single wall with heat insulation
Ingress Protection IP55
Temperature Control Cooling Fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2





4. Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 PC

(1) External Dimension: W×D×H 750×750×1750mm

Internal Dimension: W×D×H 650×650×1450mm (32U)

(2) One compartment: 19” installation

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

2 Auxiliary Direct Ventilation Fans 2 PC DC48V, installed on the front door.
3 LED Lamp 1 PC AC220V
4 LED Lamp Switch 1 PC For controlling LED lamp on/off
5 Power Distribution Unit 1 PC

Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4;

DC Output: 16A/1P×4

Input Voltage: AC220V, 50Hz

6 Package 1 PC Wooden Case

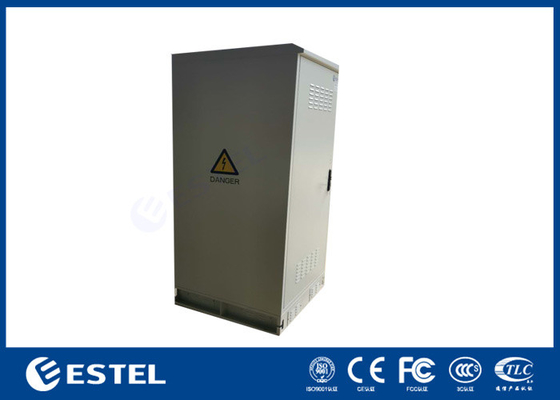

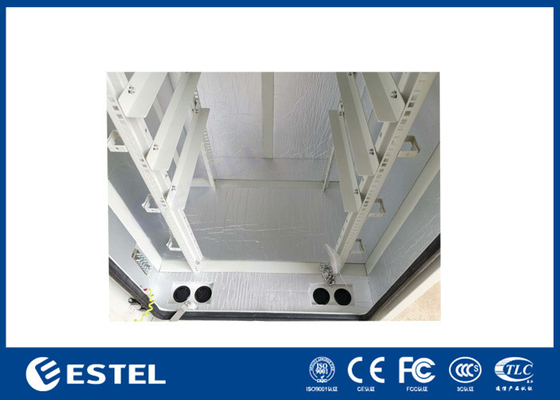

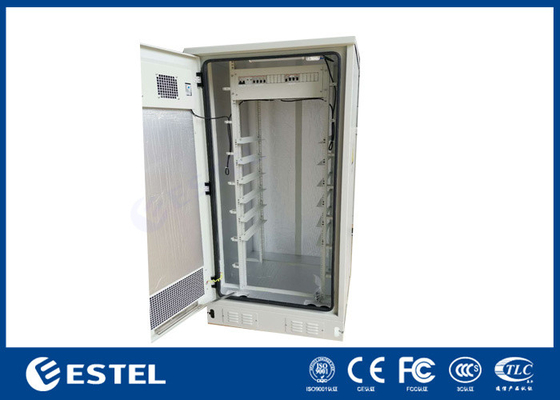

5. Cabinet Picture



IP55 Anti Corrosion network Outdoor Telecom Cabinet Power Distribution Unit 0





6. Cabinet Dimension



(1) External Dimension: W×D×H 750×750×1750mm

Internal Dimension: W×D×H 650×650×1450mm (32U)

(2) One compartment: 19” installation

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)





7. Power Distribution Unit



Grade B Lightning Proof AC Input: 63A/2P×1;

AC Output: 16A/1P×4;

DC Output: 16A/1P×4

Input Voltage: AC220V, 50Hz





8. Cabinet Quality Control Instruction



Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.

Our is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.



IP55 Anti Corrosion network Outdoor Telecom Cabinet Power Distribution Unit 1
