SNMP Remote 220V AC RS232 Environment Monitoring System EMU

19-inch Rack-mount Environment Monitoring System 220V AC Or 48V DC Power Supply

1.Product Profile

Environment Monitoring Unit is a network monitoring host designed for integrated network rooms that integrates UPS monitoring and extended power environments. Adopting the popular 19-inch rack-mount design style, supporting 220V AC or 48V DC power supply, supporting more than 12-way switching value, multi-way relay control output and ambient temperature and humidity expansion, with SMS monitoring and control functions, more secure and more reliable. It will be the best choice for modern unmanned duty rooms.

2.Product Feature

1. Working power supply: support AC 220V or DC 48V power supply, more widely used.

2. RS232 universal interface: synchronous acquisition of UPS real-time data.

3. SNMP remote network monitoring: with network interface and intuitive web page display for remote monitoring.
4. Modbus field integrated monitoring: With 485 interface, using the popular modbus protocol, it can realize integrated monitoring of non-network room, form synchronous monitoring single room or multi-room monitoring data, and optional 7-inch touch screen as display.

5. 6-way relay control output: flexible output control interface, which can realize control power output and passive switch mode, such as control fan, air conditioner and other corresponding power switch devices.

6. 15-way switching value input detection: It can be used to monitor various room environment equipment such as smoke, flooding, access control, door magnetism, etc..

7. Human-computer interaction interface: LCD widescreen display makes it easier for users to confirm the parameter settings and operation of the system.

8. LED indication function: more intuitive understanding of the operating status of the GSM equipment site.

9. 4 way of analog value: can be used with a variety of transmitters to achieve power, temperature, pressure and other aspects of the detection; input range: 0-5V.

10. Built-in GSM module: Support GSM dual-frequency, 900/1800MHz; realize remote SMS alarm function through SMS.

11. Support a wider range of UPS protocols: APC, MGE, Eaton, SANTAK, KSTAR, KELONG and many other domestic and foreign brands.

3.Installation Configuration Requirements

1. A UPS with RS-232 communication interface;

2. A computer (with administrative rights) with RS-232 communication interface and 10M/100M Ethernet adapter card for initial parameter setting;

3. complete network environment;

4. Series of function expansion options for network monitoring, monitoring, and management of UPS power and computer room environments and peripherals (optional).

4.Panel Introduction And Wiring Port Definition

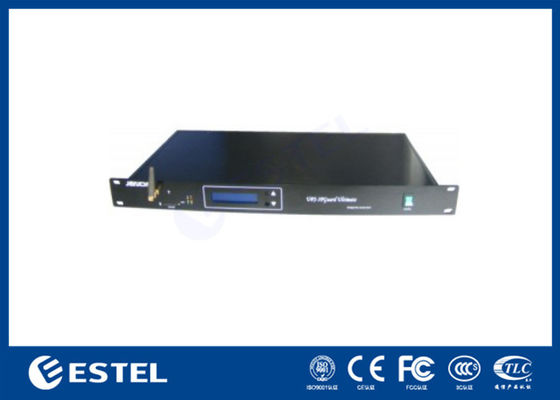

Front Panel:

• POWER: on/off switch;

• P:Keep constant brightness during normal operation；

• R: Running indicator; flashes once per second during normal operation;

• S: The SMS sending status light; the light keep constant brightness when the device is idle, and the light flashes when the device is busy;

• E: GSM module indicator; it is starting up when flashing, and it starts successfully flashing every two seconds;

• RESET: reset button; long press for more than 3 seconds to reset the GSM module.

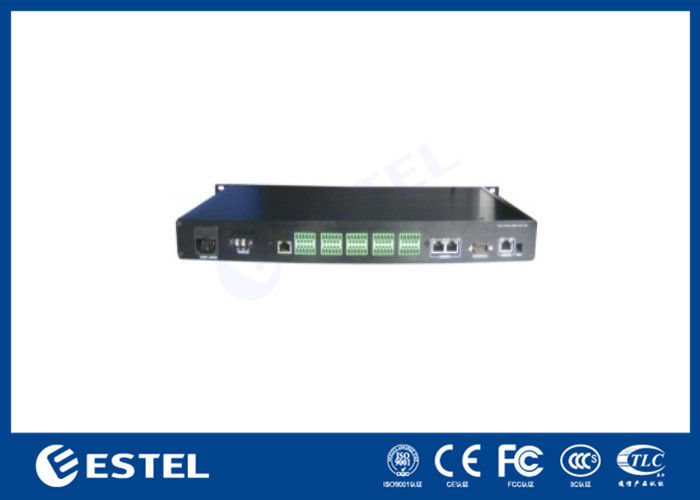

Back Panel:

• AC220V-50(60)Hz : AC 220V input(optional)

• DC48V/2.5A : DC 48V input(optional)

• RS485/EXT: RS485 communication port, used to expand the monitoring environment temperature and humidity or other device;

• RS232/Device: Serial port communication interface for parameter configuration and UPS information query with PC;

• Ethernet : UTP 10/100M RJ45 Ethernet interface;

• Default: IP configuration; restore the default IP when NO.1 dials down.
