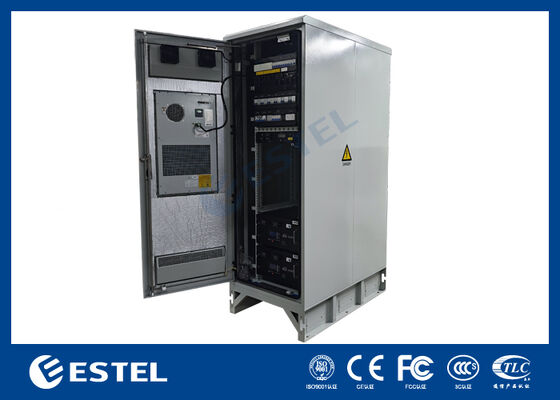

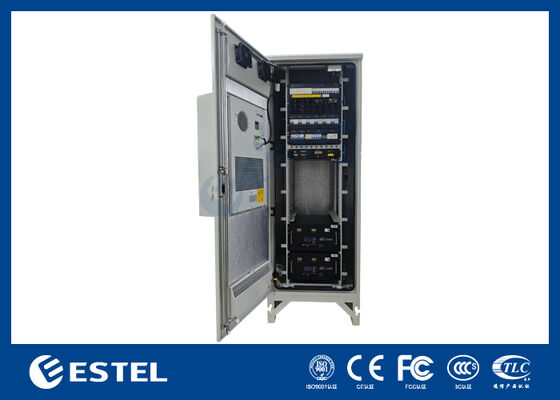

96% High Efficiency 12U 16kw Hybrid Power Rectifier System RS485 Communication

96% High Efficiency 12U 16kw Hybrid Power Rectifier System RS485 Communication
96% High Efficiency 12U 16kw Hybrid Power Rectifier System RS485 Communication 96% High Efficiency 12U 16kw Hybrid Power Rectifier System RS485 Communication 96% High Efficiency 12U 16kw Hybrid Power Rectifier System RS485 Communication 96% High Efficiency 12U 16kw Hybrid Power Rectifier System RS485 Communication

Large Image :  96% High Efficiency 12U 16kw Hybrid Power Rectifier System RS485 Communication

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 987-2327 usd
Packaging Details: wooden case/carton
Delivery Time: 25-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2,500 sets per month
Contact Now
Detailed Product Description
Rectifier Dimension: 482.5mm(W)*350mm(D)*12U(H) AC Input Volatage: Single-phase 220VAC
DC Input Voltage: 120VDCto 425VDC Output Capacity: 16kw+18kw(N+1 Redundancy)
Rectifier Module: 4*4kw, 16kw PV Module: 6*3kw, 18kw
Load Protection: LLVD/BLVD Communication: RS485/SNMP
Highlight:

30kw hybrid power rectifier

,

12U telecom power system

,

RS485 communication rectifier

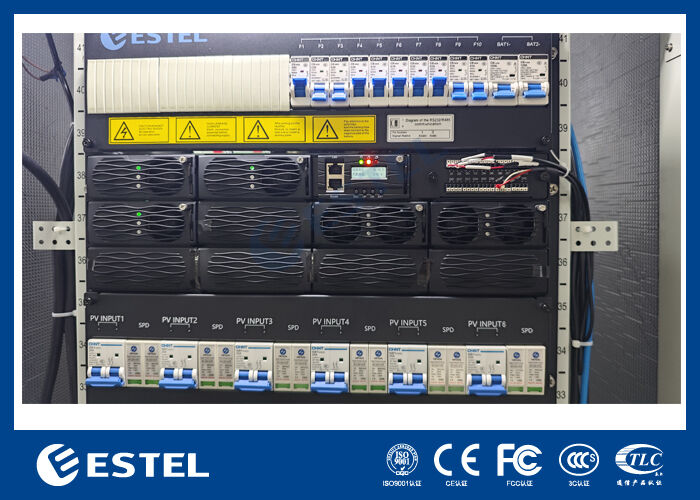

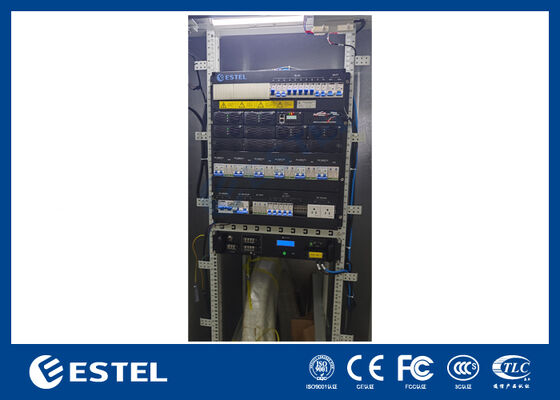

96% High Efficiency 12U Hybrid Power Rectifier System RS485 Communication

The Intelligent telecom Power Distribution Unit integrates AC and DC power management in a compact, reliable design, ideal for telecom, industrial controls, and renewable energy.

AC Distribution of 12U 16kw Hybrid Power Rectifier System
The AC input accepts single-phase 220VAC at 45–65Hz (rated 50Hz/60Hz). It features dual 125A 2P input breakers, with 1 serving as a dedicated backup. Outputs deliver 110VAC via 2 x 63A 1P and 3 x 32A 1P circuits. A built-in SPD provides 20/40kA protection (8/20µs).

DC Distribution of 12U 16kw Hybrid Power Rectifier System
The DC side supports a wide input voltage range of 120VDC to 425VDC, managed by 6 x 25A 2P breakers. Output voltage is adjustable from -43VDC to -58VDC, with a nominal rating of -53.5VDC. Total output capacity reaches 34kW with N+1 redundancy, combining 6 x 3kW PV modules (18kW) and 4 x 4kW rectifier modules (16kW). A dedicated battery breaker (2 x 125A 1P) ensures safe battery integration. Load breakers include 1 x 63A 1P BLVD, 3 x 20A 1P, and 6 x 10A 1P outputs. The DC side also features a 20/40kA, 8/20µs SPD.



Features of 12U 16kw Hybrid Power Rectifier System



  • High reliability: Dual AC breakers with backup + N+1 redundancy

  • Wide compatibility: 45~65Hz AC frequency & 120~425VDC input range

  • Comprehensive protection: 20/40kA surge protection on both sides

  • Flexible output: Multiple load breakers for various equipment

  • Seamless integration: Supports PV, rectifier modules, and battery backup

Application Scenarios of 12U 16kw Hybrid Power Rectifier System

  • 5G telecom base stations: Reliable DC power with battery backup

  • Off-grid solar systems: Wide DC input range for PV integration

  • Industrial control cabinets: Stable 110VAC and -53.5VDC outputs

  • Data center auxiliary power: Redundant architecture ensures uptime

  • Remote monitoring stations: Surge protection for harsh environments

  • Telecom shelters & outdoor cabinets: Compact, rugged, and field-proven



Basic Specification of 12U 16kw Hybrid Power Rectifier System

Dimension 482.5mm(W)*350mm(D)*12U(H)
Weight ≤50kg (without rectifiers)
Cooling mode Natural cooling
Installation mode 19-inch rack mounted
Maintenance Front maintenance, module grade change supported
Protection grade IP20



Power Distribution of 12U 16kw Hybrid Power Rectifier System



AC Distribution

 Input volatage single-phase 220VAC
Input breaker 2*125A 2P(one for backup)
Input frequency 45~65Hz, rated value: 50Hz/60Hz
Output 110VAC, 2*63A 1P, 3*32A 1P
SPD 20/40KA, 8/20us




DC Distribution




 Input voltage 120VDCto 425VDC
Input breaker 6*25A 2P
SPD 20/40KA, 8/20us
Output voltage -43~-58VDC, rated value: -53.5VDC


Output capacity

16kw+18kw(N+1 redundancy)
PV module: 6*3kw
Rectifier moudle: 4*4kw
Battery breaker 2*125A 1P circuit breaker
Load breaker BLVD: 1*63A/1P+3*20A/1P+6*10A/1P



Rectifier Module of 12U 16kw Hybrid Power Rectifier System

Input voltage 85VAC～300VAC, rated 220VAC
Efficiency >96%
Rated power 4000W(176~300VAC)
Working temperature -40℃~+75℃(50℃ @ fully output)
Dimension 106.5mm(W)×286mm(D)×44.5mm(H)(1U height)
Weight ≤2kg
Cooling mode Forced cooling
Power factor ≥0.99
THD ≤5%
DC output –43 ~ –58VDC, rated –53.5VDC, 55A maximum


 PV Module of 12U 16kw Hybrid Power Rectifier System

Input voltage 120 to 425VDC.rated 340VDC
Efficiency >96%
Rated power 3000W((200 to 425VDC)
Working temperature -40℃~+75℃(50℃ @ fully output)
Dimension 106.5mm(W)×286mm(D)×44.5mm(H)(1U height)
Weight ≤2kg
Cooling mode Forced cooling
Power factor ≥0.99
THD ≤5%
DC output –43 ~ –58VDC, rated –53.5VDC, 55A maximum


Controller of 12U 16kw Hybrid Power Rectifier System

Controller Model: MC2900
Signal input 2 AI, 6 DI
Alarm output 6 DO
Communication

RS485: Supported
SNMP: Supported
Display mode LCD screen



Environment of 12U 16kw Hybrid Power Rectifier System

Operating
temperature		 -40℃ ~ +65℃ (full output below 50℃)
Storage temperature -40℃~+70℃
Operating humidity 5%~95%(non-condensing)


Altitude

 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)


96% High Efficiency 12U 16kw Hybrid Power Rectifier System RS485 Communication 0

96% High Efficiency 12U 16kw Hybrid Power Rectifier System RS485 Communication 196% High Efficiency 12U 16kw Hybrid Power Rectifier System RS485 Communication 2
