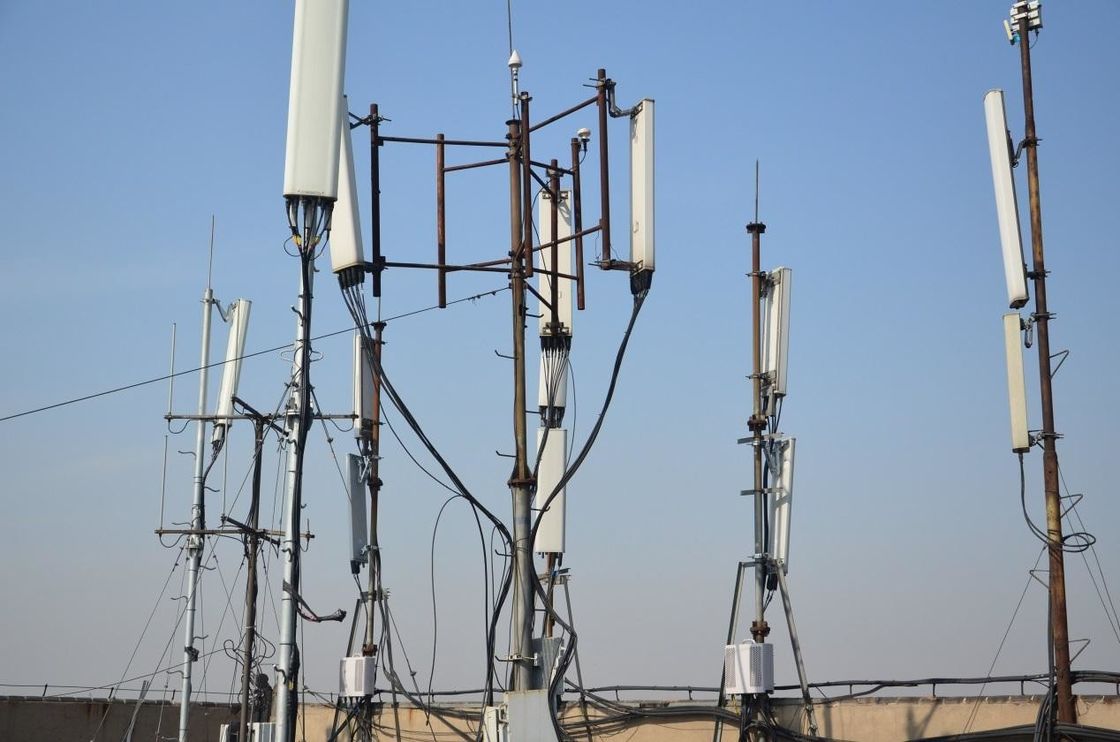

Frequency Range: | 1880-1920MHz 2010-2025MHz | Gain: | ≥14 DBi |
---|---|---|---|
VSWR: | ≤1.5 | Polarization: | 0/3/6/9° |
High Light: | cellular base station antenna,mobile base station antenna |
1. Frequency range: 1880-1920MHz 2010-2025MHz
2. Electrical down-tilt range: 0/3/6/9°
3. Electrical accuracy: ±1
4. Coupling factor between gauged terminal and all radiate terminals: -26±2dB
5. Maximum altitude deviation between gauged terminal and all radiate terminals: ≤0.7dB
6. Maximum phase deviation between gauged terminal and all radiate terminals: ≤5°
7. VSWR between gauged terminal and all radiate terminals: ≤1.5
8. The 0 isolation between the homo-polarized radiation ports: ≥20dB
9. The 3° isolation between the homo-polarized radiation ports: ≥25dB
10. The 6° isolation between the homo-polarized radiation ports: ≥28dB
11. The 9° isolation between the homo-polarized radiation ports: ≥28dB
12. The 0° isolation between the hetero-polarized radiation ports: ≥25dB
13. The 3° isolation between the hetero-polarized radiation ports: ≥28dB
14. The 6° isolation between the hetero-polarized radiation ports: ≥30dB
15. The 9° isolation between the hetero-polarized radiation ports: ≥30dB
16. Unit beam horizontal half power beam width:
17. Unit beam gain: ≥14dBi
18. Unit beam ±60° margin power decrease: /
19. Unit beam vertical half power beam width: /
20. Unit beam cross polarization ratio (axis direction): ≥18dB
21. Unit beam cross polarization ratio (±60°): ≥18dB
22. Unit beam front-to-back ratio: ≥23dB
23. Unit beam upper side-lobe restrain: /
24. Broadcast beam horizontal half power beam width: 65±5°
25. Broadcast beam gain: ≥14dB
26 .Broadcast beam ±60° margin power decrease: 12±2dB
27. Broadcast beam vertical half power beam width: ≥6.5°
28. Broadcast beam cross polarization ratio (axis direction): ≥22dB
29. Broadcast beam cross polarization ratio (±20°): ≥20dB(1880-1920MHz)
30. Broadcast beam cross polarization ratio (±60°): ≥10dB
31. Broadcast beam front-to-back ratio: ≥28dB
32. Broadcast beam upper side-lobe restrain: ≤-16dB
33. Broadcast first Down Null-Fill : ≥-18dB
34. Business 0° pointing beam gain: ≥20dBi
35. Business 0° pointing beam horizontal half power beam width: ≤26°
36. Business 0° pointing beam horizontal side-lobe electrical level: ≤-12dB
37. Business ±60° pointing beam gain: ≥17.5dB
38. Business ±60° pointing beam horizontal half power beam width: ≤32°
39. Business ±60° pointing beam horizontal side-lobe electrical level: ≤-5dB
40. 0° cross polarization ratio (axis direction): ≥22dB
41. 0° front-to-back ratio: ≥28dB
Mechanical index:
1. Polarization method: ±45°
2. Input impedance: 50Ω
3. Power capacity: 50W (for unit terminal) 2W (for verify terminal)
4 .Interface type: 9*N-Female
5. Product size (without package): 1400*300*95mm
6. Product size (with package): 1670*330*150mm
7. Product weight: 13.3kg
8. Whole weight: 20.5kg
9. Wind load area:0.45m²
10. Wind resistance: 60m/s
11. Antenna shield material: UPVC
12. Interface position: bottom
13. Mechanical down-tilt: 0~15°
14. Operating temperature: -55~+65℃
15. Pole mounted: ¢50~¢115mm
16. Ante-lightning protection: DC to ground
17. IP protection level: IP55
Product feature:
TD-SCMA antenna uses 3G criterion that is an evolution version of GSM. It uses TDD and TDMA/CDMA as multiple accesses that aim to establish high spectrum efficiency, economic and advanced mobile communication system.
