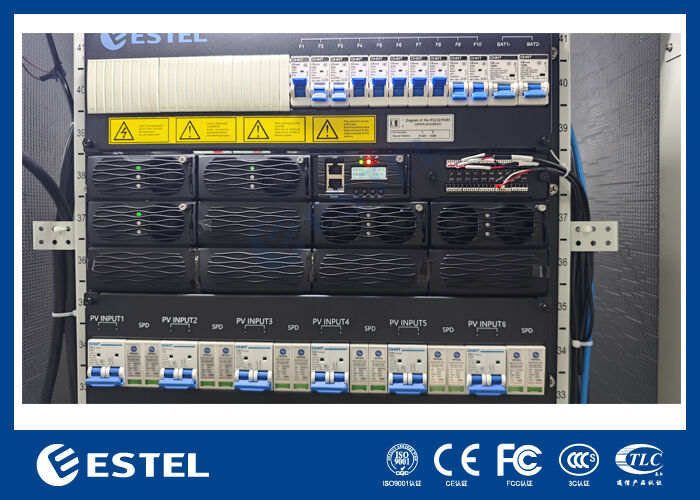

96% High Efficiency 12U 30kw Hybrid Power Rectifier System RS485 Communication

96% High Efficiency 12U 30kw Hybrid Power Rectifier System RS485 Communication
96% High Efficiency 12U 30kw Hybrid Power Rectifier System RS485 Communication 96% High Efficiency 12U 30kw Hybrid Power Rectifier System RS485 Communication

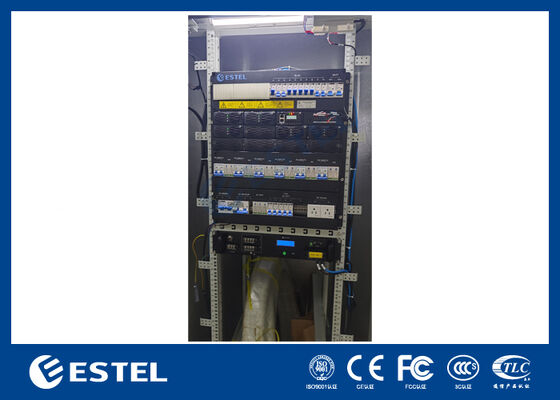

Large Image :  96% High Efficiency 12U 30kw Hybrid Power Rectifier System RS485 Communication

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 987-2327 usd
Packaging Details: wooden case/carton
Delivery Time: 25-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2,500 sets per month
Contact Now
Detailed Product Description
Rectifier Dimension: 482.5mm(W)*350mm(D)*12U(H) AC Input Volatage: Single-phase 220VAC
DC Input Voltage: 120VDCto 425VDC Output Capacity: Maximum: 30kw (10*3kw, N+1 Redundancy)
Rectifier Module: 4*3kw PV Module: 6*3kw
Load Protection: LLVD/BLVD Communication: RS485/SNMP
Highlight:

30kw hybrid power rectifier

,

12U telecom power system

,

RS485 communication rectifier

12U 30kw 96% High Efficiency Hybrid Power Rectifier System RS485 Communication


Product Overview of 12U 30kw Hybrid Power Rectifier System


Designed for telecommunications infrastructure, medium-to-large data centers, and demanding environmental conditions, the 30kW Hybrid Power Rectifier System delivers stable AC and DC power distribution. It accepts dual inputs—220V AC and photovoltaic (PV)—and produces a precisely regulated DC output adjustable from –43V to –58V (typically –53.5V). In addition, the system provides a 110V AC output at 16A, complete with Class C surge protection. With a maximum capacity of 30kW and conversion efficiencies exceeding 96% across most of its load range, the unit substantially reduces energy consumption and associated cooling demands.



Built for continuous operation, the rectifier accommodates up to 10 hot-swappable 3000W modules (6 powered by PV and 4 by AC), supporting N+1 or higher redundancy configurations. Each module features forced-air cooling, active Power Factor Correction (PFC ≥ 0.99), and low Total Harmonic Distortion (THDi ≤ 5%), ensuring clean grid interaction and stable output. All components are installed in a 12U, 19-inch rack-mountable chassis rated IP20. Front-access hot-swap capability simplifies maintenance, while rear-mounted copper busbars provide a low-impedance, high-current connection path.



The integrated DC distribution includes battery low-voltage disconnect (BLVD), enabling prioritized load shedding to preserve critical battery reserves during outages. An advanced system controller offers comprehensive monitoring and programmable logic via analog inputs (AI), digital inputs (DI), and digital outputs (DO). Remote management is supported through RS485 and SNMP interfaces, giving operators full visibility into alarms, performance metrics, and rectifier status. A front-panel LCD also allows convenient on-site configuration and diagnostics.



Basic Specification of 12U 30kw Hybrid Power Rectifier System


Dimension 482.5mm(W)*350mm(D)*12U(H)
Weight ≤50kg (without rectifiers)
Cooling mode Natural cooling
Installation mode 19-inch rack mounted
Maintenance Front maintenance, module grade change supported
Protection grade IP20




Power Distribution of 12U 30kw Hybrid Power Rectifier System




AC Distribution

 Input volatage single-phase 220VAC
Input breaker 2*125A 2P(one for backup)
Input frequency 45~65Hz, rated value: 50Hz/60Hz
Output 110VAC, 2*63A 1P, 3*32A 1P
SPD 20/40KA, 8/20us




DC Distribution




 Input voltage 120VDCto 425VDC
Input breaker 6*25A 2P
SPD 20/40KA, 8/20us
Output voltage -43~-58VDC, rated value: -53.5VDC


Output capacity

30kw(10*3kw, N+1 redundancy)
PV module: 6*3kw
Rectifier moudle: 4*3kw
Battery breaker 2*125A 1P circuit breaker
Load breaker BLVD: 1*63A/1P+3*20A/1P+6*10A/1P



Rectifier Module of 12U 30kw Hybrid Power Rectifier System


Input voltage 85VAC～300VAC, rated 220VAC
Efficiency >96%
Rated power 3000W(176~300VAC)
Working temperature -40℃~+75℃(50℃ @ fully output)
Dimension 106.5mm(W)×286mm(D)×44.5mm(H)(1U height)
Weight ≤2kg
Cooling mode Forced cooling
Power factor ≥0.99
THD ≤5%
DC output –43 ~ –58VDC, rated –53.5VDC, 55A maximum



PV Module of 12U 30kw Hybrid Power Rectifier System


Input voltage 120 to 425VDC.rated 340VDC
Efficiency >96%
Rated power 3000W((200 to 425VDC)
Working temperature -40℃~+75℃(50℃ @ fully output)
Dimension 106.5mm(W)×286mm(D)×44.5mm(H)(1U height)
Weight ≤2kg
Cooling mode Forced cooling
Power factor ≥0.99
THD ≤5%
DC output –43 ~ –58VDC, rated –53.5VDC, 55A maximum



Controller of 12U 30kw Hybrid Power Rectifier System


Controller Model: MC2900
Signal input 2 AI, 6 DI
Alarm output 6 DO
Communication

RS485: Supported
SNMP: Supported
Display mode LCD screen


Environment of 12U 30kw Hybrid Power Rectifier System


Operating
temperature		 -40℃ ~ +65℃ (full output below 50℃)
Storage temperature -40℃~+70℃
Operating humidity 5%~95%(non-condensing)


Altitude

 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)
