DC48V 750A Telecom DC Power Systems for Base Station SNMP RS485 Supported

Large Image : DC48V 750A Telecom DC Power Systems for Base Station SNMP RS485 Supported

Product Details:

Place of Origin:	Shenzhen, China (Mainland)
Brand Name:	ESTEL
Certification:	ISO9001, CE, 3C, FCC
Model Number:	ET48750

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	651-2468 usd
Packaging Details:	carton/wooden case
Delivery Time:	35-40 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	5,000 sets per month

Contact Now

Detailed Product Description

Dimension:	482.6(W)350.0(D)6U(H)	Weight:	≤30kg (without Rectifiers)
Rectifier Power:	30kw	Rectifier Module:	10*3KW
SNMP:	Support	RS485:	Support
Customizable:	Yes	Package:	Carton/wooden Case
Highlight:	AC48V telecom power system with SNMP , 750A DC power system for base stations , RS485 supported telecom power system

DC48V 750A Telecom DC Power Systems for Base Station SNMP RS485 Supported

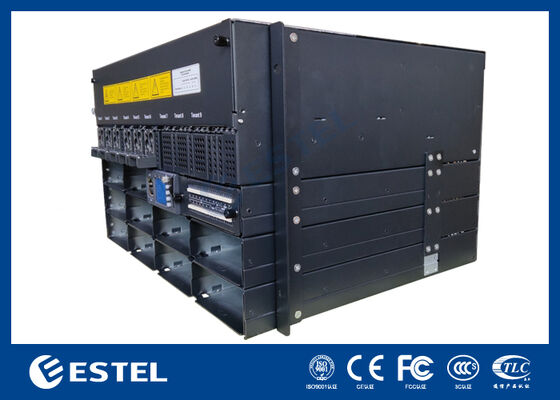

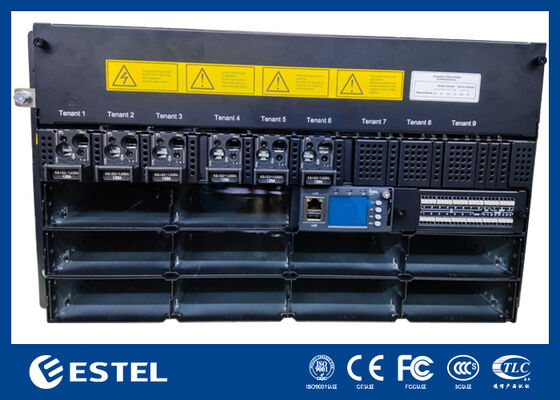

Product Overview of 48VDC 750A Base Station Rectifier Power Supply

The ET48750-M7E106 DC rack power system is a high-capacity, carrier-grade power conversion platform engineered for core telecom nodes, large-scale data centers, and mission-critical industrial facilities where power continuity is essential. It interfaces via terminal blocks—configured as L1×3, L2×2, L3×2, and N×6—to support AC inputs. The system delivers a precisely regulated DC output adjustable from –43VDC to –58VDC, with a nominal setpoint of –53.5VDC. Rated at a full 30kW output capacity, it sustains conversion efficiency above 96% even under heavy load, significantly reducing energy loss and operational expenditure.

DC48V 750A Telecom DC Power Systems for Base Station SNMP RS485 Supported 0

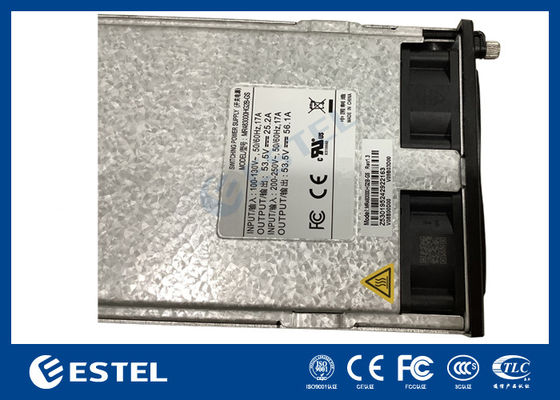

Rectifier Module of 48VDC 750A Base Station Rectifier Power Supply

The architecture is fully modular and fault-tolerant, supporting up to ten 3000W hot-swappable rectifier modules in an N+1 or higher redundancy scheme. Each rectifier module weighs under 2kg and leverages forced-air cooling alongside advanced power factor correction (≥0.99) and very low total harmonic distortion (THDi ≤5%), ensuring grid-friendly operation and consistent power quality. The entire system is housed in a 6U-high chassis built to fit standard 19-inch racks. Front-access hot-swap maintenance and top-panel cable routing simplify installation and field service, while the IP20-rated enclosure protects against accidental contact and ingress of solid foreign objects.

DC48V 750A Telecom DC Power Systems for Base Station SNMP RS485 Supported 1

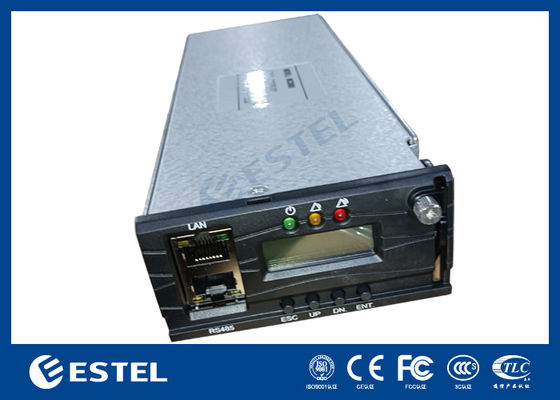

Controller of 48VDC 750A Base Station Rectifier Power Supply

MC2600 is the new generation DC power controller developed by ESTEL. The controller adopts ARM32-bit Cortex-M4 CPU as primary processor. MC2600 offers many features and functions, and a morerobust, user-friendly, and easy-to-use interface. The controller provides powerful hybrid powermanagement functions, including management of diesel generator,VRLA and lithium-ion batteries andsolar modules.

Key Features

Automatic battery test,including advanced scheduledtest, constant current test and short test
Configuration file upload feature enable minimizedinstallation time
Energy saving standby function for rectifiersrealizes lower operating cost
Manages from 1 to up to 40 rectifiers

DC48V 750A Telecom DC Power Systems for Base Station SNMP RS485 Supported 2

Specifications of 48VDC 750A Base Station Rectifier Power Supply

Type		ET48750
System	Dimension	482.6(W)350.0(D)6U(H)
	Weight	≤30kg (without rectifiers)
	Cooling mode	Natural cooling
	Installation mode	Installed on 19-inch rack
	Cabling mode	Top inlet and top outlet
	Maintenance mode	Front maintenance, support module grade change
	Protection level	IP20
AC Distribution	Input mode	Terminal block L1×3, L2×2, L3×2, and N×6
	Input frequency	45~65Hz, rated value: 50Hz/60Hz
DC Distribution	Output voltage	-43~-58VDC, rated value: -53.5VDC
	Maximum capacity	30kw(10*3000w, N+1 redundancy)
	Battery breakers	RTN+ BATT-busbars
	Load breakers	LLVD: Circuit Breaker 6125A/1PN + 3≤125A/1PN (reserved slots) BLVD: RTN+GND-busbars
Rectifier	Input voltage	85VAC～300VAC, rated 220VAC
	Efficiency	>96%
	Rated power	3000W(176~300VAC)
	Working temperature	-40℃~+75℃(fully output below 50℃)
	Dimension	106.5mm(W)×286mm(D)×41.5mm(1U/H)
	Weight	≤2kg
	Cooling mode	Forced cooling
	Power factor	≥0.99
	THD	≤5%
	DC output	–43 ~ –58VDC, rated –53.5VDC, maximum 55A
Controller	Signal input	4 AI(3ambient temp, 1 humidity) ,8 DI
	Alarm output	7 dry contact
	RS485	Yes
	SNMP	Yes
	Display mode	LCD
Environment	Operating temperature	-40℃ ~ +65℃ (full output below 50℃)
	Storage temperature	-40℃~+70℃
	Operating humidity	5%~95%(non-condensing)
	Altitude	0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)
