Product Details:
Payment & Shipping Terms:
|
| Product Name: | PDU | Product Specification And Model: | 1S63XKN1D1-36E-4 （BM） |
|---|---|---|---|
| RoHS: | YES | Factory Accessories: | 4 Pcs For Each M6 Screw And Nut |
| Socket System And Number: | IEC60320 C13（36） | Internal Connecting Line: | 10AWG、12AWG Electronic Wire, Red Copper Bar |
| Power Supply Input Mode: | Open Transparent Junction Box | Cable Specifications: | Customer Self Access 3*16²㎜cable |
Power Distribution Unit
1. Power DIstribution Unit Specifications
| Customer name | NO. | Product specification parameter description | ||
| Product name | PDU | 1 | Socket system and number | IEC60320 C13(36) |
| Product specification and model | 1S63XKN1D1-36E-4 (BM) | 2 | Internal connecting line | 10AWG,12AWG Electronic wire, red copper bar |
| Product code | 3 | Power supply input mode | Open transparent junction box | |
| Product quantity | 4 | Cable plug system | / | |
| RoHS | YES | 5 | Cable specifications | Customer self access 3*16²㎜cable |
| Customer product code | / | 6 | Cable installation mode | Upper input |
| Customer product specification and model | 7 | Cable fixing | Fixed wire base | |
| 8 | Shell color | Black | ||
| Special product description |
The product has four hydraulic circuit breaker controls, with corresponding A1, A2, B1, and B2 markings on the circuit breaker and the product. The background colors are red and yellow, The product is equipped with an internal circuit breaker power monitoring module,Metering per Branch Circuit Breaker |
9 | Size and specification(L*W*H) | 1812*52*44.4mm |
| 10 | Fixed hole center distance | 1792.5mm(Distance between back hanging nail holes 933mm) | ||
| 11 | Aluminum alloy shell length | 1758mm | ||
| 12 | Product installation mode | Bracket installation | ||
| 13 | Installation direction of bracket | Vertical reverse installation | ||
| Factory accessories |
4 pcs for each M6 screw and nut
|
14 | Control indication function | 4*1P/16A HCB |
| 15 | Protection monitoring function | KN-1 | ||
| Product identification | Product name | PDU | ||
| Customer specifications and models | 1S63XKN1D1-36E-4 | |||
| Rated voltage and current | 200-240V AC 63A | |||
| Safety certification mark | / | |||
| LOGO | / | |||
| Manufacturer | ESTEL | |||
|
|
||||

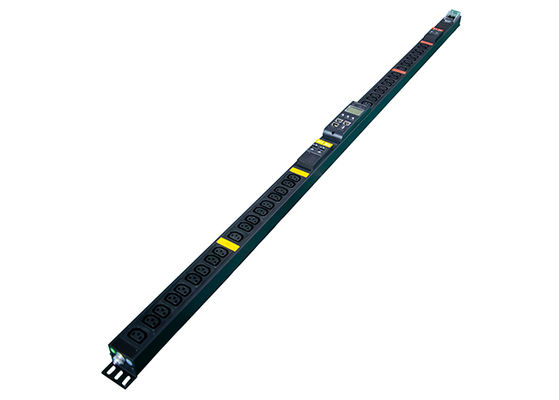

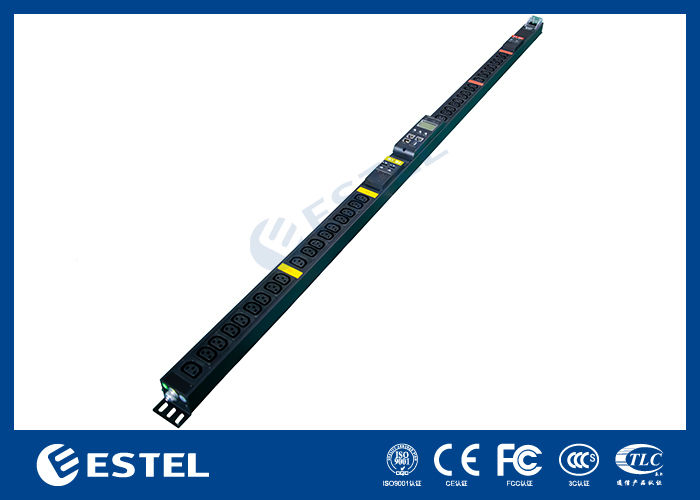

2. Product Pictures
