Outdoor Telecom Cabinet With 18kW 300A Telecom Power System for Telecom Equipment DC Power Supply Rectifiers

Outdoor Telecom Cabinet With 18kW 300A Telecom Power System for Telecom Equipment DC Power Supply Rectifiers

1. Introduction

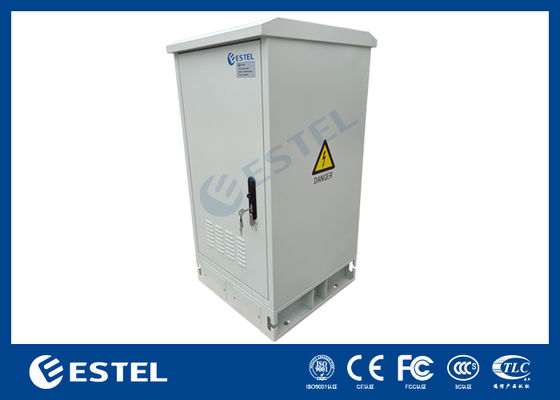

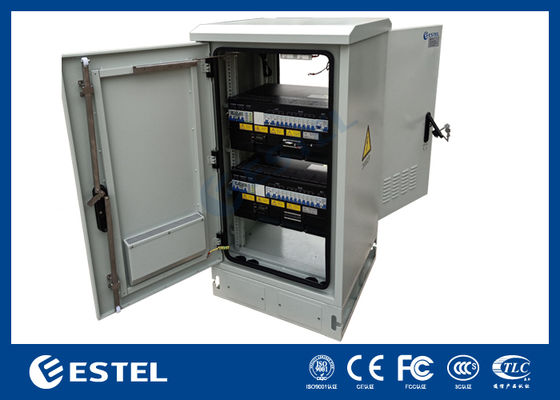

ET6565100A-18kW-300A is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor

telecommunication equipment which need DC power supply.

2. Applications

This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

3. Cabinet Features

• High protection grade: IP55
• Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
• Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
• Support remote management, improve security and minimize customer’s operation cost

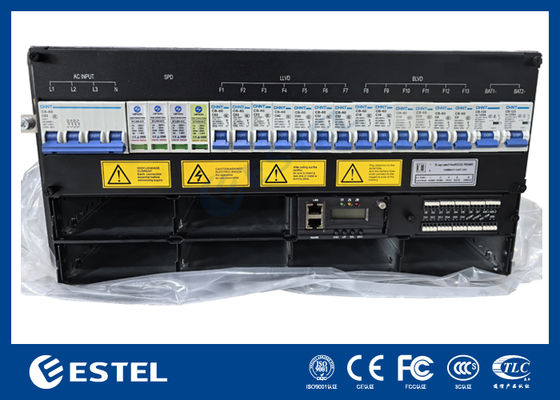

3. Rectifier Power System Features

• Power system capacity: 18kW, 300A, 6 rectifier modules + 1 monitoring module;
• Power system height: 5 rack units;
• Rectifier module specification: 3kW (50A)
• Monitoring module: support SNMP;
• Power distribution:

              - LLVD: 3x 63A/1P, 2x 40A/1P, 2x 32A/1P;

              - BLVD: 2x16A/1P, 2x 10A/1P, 2x 6A/1P;

4. Cooling System Features

Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.

5. Technical Parameters
