1. FSU Description

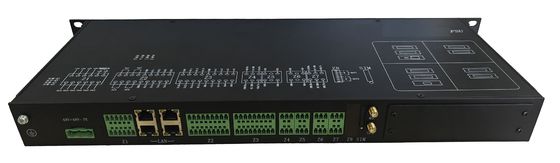

PM5000TT3.0 is a high-performance low-cost FSU (Field Supervision Unit) device
integrating Data Acquisition, intelligent protocols processing and communication
module.
As a smart DAC(Data Acquisition Controller) installed in every telecommunication
station or base station in Power Supply & Environment Surveillance System, FSU
accesses different sensors to get various environment data and non-intelligent
devices status and communicates with intelligent devices (including switching power
supply, Lithium Battery BMS, air-conditioner, etc.) via RS232/485, Modbus or other
kinds of communication interface. FSU captures the following data in real time and
delivers to surveillance center via B-Interface, SNMP protocol.
Power Supply Parameters
Voltage and current of 3-phase AC power supply
Power Rate and Power Factor of AC power supply
Voltage and current of -48VDC Switching power supply
Operating Status of Intelligent Switching power supply
Charging/discharging Voltage and current of backup battery group
Voltage of Single cell battery
Surface Temperature of Single Cell battery
Operating Status of Intelligent Air-Conditioner
Remote Control of Intelligent Air-Conditioner
Status and remote control of Diesel Generator
Embedded over 1000 intelligent devices protocols
Embedded WEB server
Environment Status and Control
Temperature and Humidity - via T&H Sensor
Smoke status - via Smoke Sensor
Motion Detection - via Infrared and Microwave Dual Passive Sensor
Water Logging Status - via Water Sensor
1PM5000 Field Supervision Unit
Video Snapshot and Storage - via IP camera
Remote Lighting Control - via Lighting controller
Remote Entrance Control - via Entrance Guard Controller
2. FSU Dimension
L: 482mm,W: 220mm,H; 44mm
3. FSU Operation Environment
3.1 Environment Temperature
Operation Temperature: -20℃～60℃
Storage & Transportation Temperature: -40℃～70℃
3.2 Environment Humidity
Operation Relative Humidity:<95%
Storage & Transportation Relative Humidity: <95%(40±2℃)
3.3 Altitude
<5000m
3.4 Protection Level
IP20
