Telecom Rectifier System providing RS485 internet port dry contacts and remote monitoring capabilities for network management and control

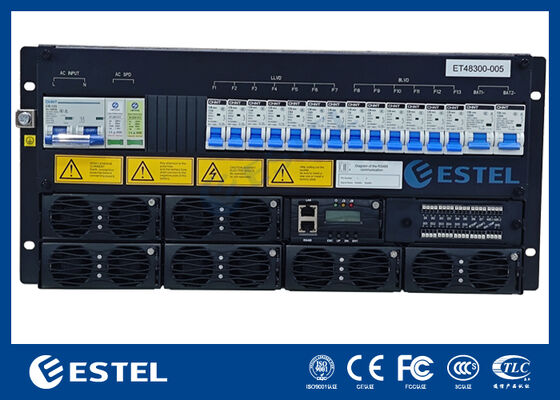

Large Image : Telecom Rectifier System providing RS485 internet port dry contacts and remote monitoring capabilities for network management and control

Product Details:

Place of Origin:	Shenzhen, China (Mainland)
Brand Name:	ESTEL
Certification:	ISO9001, CE, 3C, FCC, TLC
Model Number:	ET48300-005

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	358-2143 usd
Packaging Details:	carton/wooden case
Delivery Time:	7-10 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	20,000 sets per month

Contact Now

Detailed Product Description

Dimension:	482.0(W)350.0(D)5U(H)	Weight:	≤25kg (without Rectifiers)
Cooling Mode:	Natural Cooling	Installation Mode:	Installed On 19-inch Rack Or Inside The Cabinet
Cabling Mode:	Top Inlet And Top Outlet	Maintenance Mode:	Front Maintenance, Support Module Grade Change
Highlight:	Safe Operation EV Charging Station , IP54 EV Charging Station , Multiple Safety Protections EV Charging Station

Introduction

ET48300-005 sub-rack power supply 5U height compact design to meet critic

alapplication needs of fiber and microwave transmission, access device,

switch. The system maximum power is 300A, with AC/battery/load MCBs.

The cables are front accessing with MCB and busbar.

Key Features

Standard 19-inch width which has the advantage of wide use

5U height compact design, space and installation cost can be saved

Front operation and cable accessing, good-looking and safe maintenance

Perfect battery management, prolongs the life of the battery well provide various communication ports, RS485, internet port, dry contacts, etc. which enables flexible networking and remote monitoring

Rectifier and controller are hot pluggable, easy and quick on-line maintenance

Wide input voltage range(85-300Vac) the power grid is adaptable

Application Scenarios

Wireless base station

Transmission network

Communication network of enterprises

Specifications

Type		ET48300-005
System	Dimension	482.0(W)350.0(D)5U(H)
	Weight	≤25kg (without rectifiers)
	Cooling mode	Natural cooling
	Installation mode	Installed on 19-inch rack or inside the cabinet
	Cabling mode	Top inlet and top outlet
	Maintenance mode	Front maintenance, support module grade change
	Protection level	IP20
AC Distribution	Input mode	380VAC three-phase
	Input capacity	1×63A/4P
	Input frequency	45~65Hz, rated value: 50Hz/60Hz
	AC SPD	20kA/40kA, 8/20μs
DC Distribution	Output voltage	-43~-58VDC, rated value: -53.5VDC
	Maximum capacity	18kW
	Battery breakers	2× 125A/1P
	Load breakers	LLVD:32A/1P×2+40A/1P×2+63A/1P×3 BLVD:6A/1P×2+10A/1P×2+16A/1P×2
	DC SPD	10kA/, 8/20μs
Rectifier	Input voltage	85VAC～300VAC, rated 220VAC
	Efficiency	>96%
	Rated power	3000W(176~300VAC)
	Working temperature	-40℃~+75℃(fully output below 50℃)
	Dimension	106.5mm(W)×286mm(D)×41.5mm(1U/H)
	Weight	≤2kg
	Cooling mode	Forced cooling
	Power factor	≥0.99
	THD	≤5%
Controller	Signal input	4 AI(3 Battery temp., 1 ambient temp) ,7 DI(SPD, 6 common DI)
	Alarm output	6 dry contact
	Communication port	RS485, SNMP
	Display mode	LCD
Environment	Operating temperature	-40℃~+75℃(fully output below 50℃)
	Storage temperature	-40℃~+70℃
	Operating humidity	5%~95%(non-condensing)
	Altitude	0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)

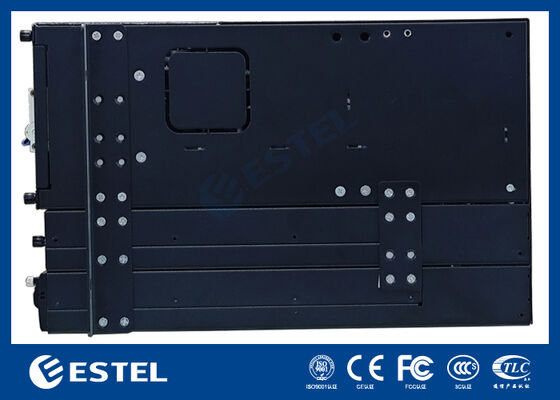

Telecom Rectifier System providing RS485 internet port dry contacts and remote monitoring capabilities for network management and control 0
