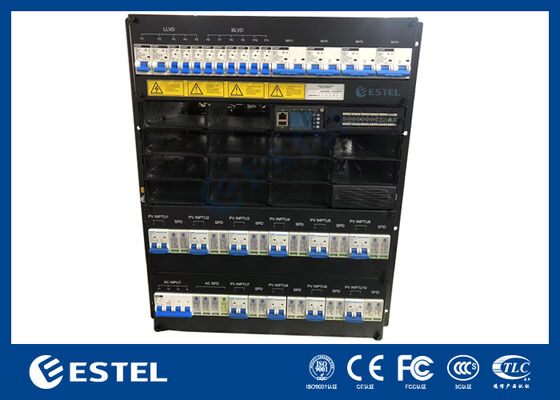

Power Core for Data Center for up to 1000A DC Power Supply
1. Overview
ESTEL’s 1000A Power Core is a high capacity DC power core specially designed for telecom rooms and data centers applications, it converts 220VAC single-phase or 380VAC three-phase AC power into high quality DC power for supplying power to telecom and IT equipment.
2. Applications
- Telecom sites center power supply
- Data center telecom power supply
- Satellite ground station
- Microwave station power supply
3. Compositions & Features
This 1000A power core is mainly consist of smart power controller, high-quality rectifier modules, circuit breakers and SPD devices for AC input power and DC output circuit.

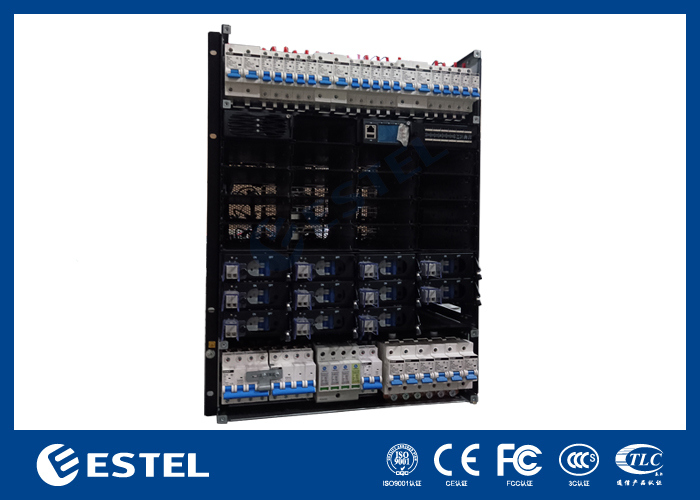

1)Power Core Subrack or Power Core Cabinet:
The 1000A Power Core system can either be built in a 19’’ rack mountable subrack or in a cabinet with 19’’ racks. It depends on client’s requirements for the power capacity and installation space. It is manufactured as an assembly subrack or cabinet, with all the power controller, rectifier modules slots, power distribution breakers and SPD integrated inside.
2) Smart power controller:
It has a LCD screen for displaying the power system operation info and local parameter setting, it not only support parameter read and writing, but also support parameter upload and download. It provides local monitoring and control function via Web browser, and it supports SNMP for remote monitoring and control function.
| Remote Metering |
Remote Control |
Battery Management |
Energy Saving Mode |
Alarms & Events |
|
AC voltage & current
DC voltage & current
Battery current & temperature
Ambient temperature
Rectifier module voltage & current
|
Equalizing and floating charging of battery
Voltage regulating of rectifier modules
Current limiting of rectifier modules
On/Off control of rectifier modules
Load disconnect
Battery disconnect
|
Boost charge
Temperature Compensation
Battery Test
Low Voltage Disconnection
High Temperature Disconnection
Battery Capacity Prediction
|
High/standard efficiency rectifiers
mixture management
Rectifiers running cyclic
Rectifiers running dormancy
|
SPD, Load fuse, Battery discharge, Current imbalance, Load disconnect, Rectifier AC input fail, Rectifier communication fail,
etc
|
| Above is a non-exhaustive list, to know the full functions, please contact us. |
3) Rectifier module:
Rectifier modules converter AC power into high quality DC power, they are hot-swappable. Base on client’s different requirements for total current capacity, AC to DC conversion efficiency, budget range, power load quantity and specification, etc., different number of modules, and different model of modules will be used. All the module inside is configured with fan for forced air cooling.
| Item |
Parameter |
Item |
Parameter |
| Operating Voltage |
85Vac to 290Vac
|
Output voltage
|
42V DC~58V DC, Rated value is 53.5V |
| Frequency |
45Hz~66Hz, Rated value is 50Hz/60Hz |
Linear power
derating
|
3000W( 176V AC~290V AC)
3000W~1250W( 175V AC~85V AC)
|
|
Input current
|
≤18A |
Regulated voltage
precision
|
≤±0.6％V |
| Power factor |
≥0.99(220Vac@20%~100% load) |
Standby power |
≤4W |
| THD |
≤5％(50%~100% load)
|
Startup duration
|
3s~8s( Instant start mode)
|
| Dimensions |
41.5mm(H)×106.4mm(W)×291mm(D)
|
Weight(Without
packaging)
|
2Kg
|
| Above is a non-exhaustive feature list of one model, to know the full functions and more rectifier modules, please contact us. |
4) AC input breakers & SPD:
Different brands of breakers are available. And all the breakers are configured based on the features of client’s input power types and requirements. ESTEL will recommend commonly used SPD configuration, client’s specially requirement is also supported.
5) DC output breakers & SPD:
DC output breakers and SPD configuration is based on client’s needs, will need information about totally how many power consumption equipment, and what is the power of each consumption equipment, should spare how many breakers for future purpose, etc. All these are negotiable.
6) Others:
Battery breakers, bypass, service outlets, etc. all can be included in the power core system based on client’s needs.
