Product Details:
Payment & Shipping Terms:
|
| Features: | IP55 | Output Voltage: | 48V DC |
|---|---|---|---|
| Emergency Cooling: | -48VDC Fan | Certifications: | CE, RoHS |
| Ip Grade: | IP55 | Illumination: | DC48V LED Lamp |
| Cooling System: | Air Conditioner | External Size: | H×W×D1750×900×900mm |
| Cooling: | DC48V Fans | Thickness: | 1.2/1.5/2.0mm(Can Be Customized) |
| Voltage Range: | 115~295VAC(±3VAC) | Backup Time: | Customized |
| Internal Size: | H×W×D 700×520×520mm | Door: | With One Front Door |
| Installation: | Pole Mounted/wall Mounted | Protection Level: | IP54/IP55/IP65/IP66 |
| External Size: | 1200x1000x300mm | Type: | Outdoor Cabinet |
| Material: | Galvanized Steel | Color: | RAL7035 Or Customized |
| Product Name: | Waterproof Outdoor Battery Cabinet | Application: | Telecommunication,Outdoor Electronic Equipment |
| Size: | Customer's Requst,800*800*2100 Mm | Cooling System: | Air Conditioner Or Fans |
| Warranty: | 1 Year | Service: | OEM/ODM |
| Usage: | Control | Function: | Electrical Parts |
| Weight: | 330KGS | Customization: | According To Client's Requirement |
| Surface Finish: | Powder Coating Finish | Name: | Stainles Steel Enclosure |
| Highlight: | 48VDC Outdoor Battery Cabinet,Telecom Outdoor Battery Cabinet,Embedded Power System Outdoor Battery Cabinet |
||

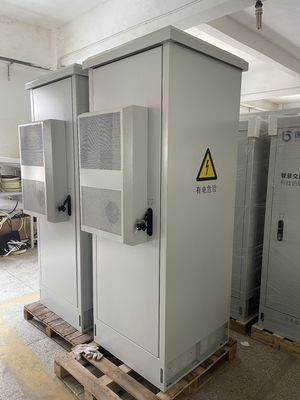

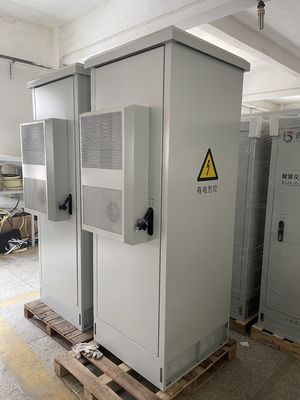

High protection grade: IP65
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
● Comprehensive protection: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.
● Support remote management, improve security and minimize customer’s operation cost

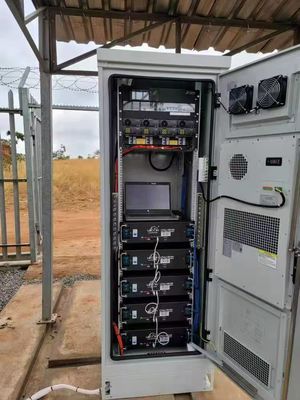

The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6565125-22U |
| Protection Level | IP65 | |
| External Dimension | H1250mm×W650mm×D650mm (can be customomized) | |
| Internal Dimension | 19 inch rail, 22U | |
| Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted,roof mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Cooling | Optional | AC air conditioner |
| Cooling Capacity | 500W | |
| Input Voltage | 220VAC 50Hz | |

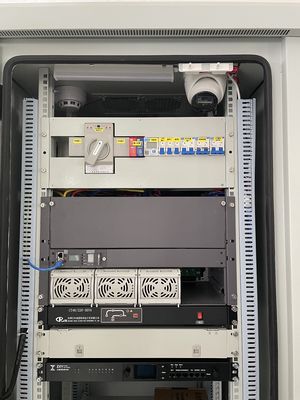

| PDU |
Mode:1US-M6-F Voltage:250VAC 6-position 10A universal hole+1-position lightning protection module, 2 meters of 3G1.5 square cable, 10A national standard three core plug. |
|
| Others | 220VAC 50HZ LED lamp | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
