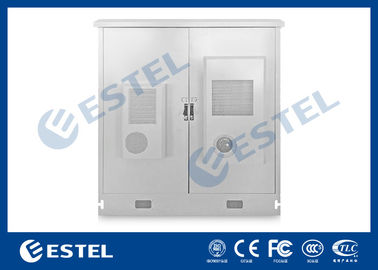

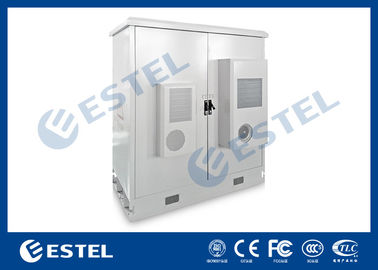

BTS outdoor cabinet,
outdoor data cabinet
Good Seal Metal Outdoor Base Station Enclosure For Installing Battery And 19” Equipment
|Place of Origin: Shenzhen, China (Mainland)||External Size H×W×D 2000×1800×900mm|
|Brand Name: ESTEL||Structure: sandwich structure, double wall, with insulation|
|Model Number: ET18090200||Cabinet Layout: two compartments|
|Product Name: base station cabinet||Cabinet Lock: anti-theft three point lock|
|Certification: ISO9001, CE, 3C, FCC, TLC, IP55||Protection Level: IP55|
|Application: outdoor telecom base station||Cable Entry: at cabinet bottom|
|Material: galvanized steel||Illumination: DC48V LED lamp|
|Heat Insulation: PEF||Grounding Protection: copper bar|
|Color: grey (support custom made)||Cooling: AC220V air conditioner|
|Coating: anti-corrosion outdoor powder coating||Accessories Options: PDU, environment monitoring system|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, Paypal, etc|
|Supply Ability:||6,000 sets per month|
|Delivery Time:||15-20 working days|
|Packaging Details:||wooden case|
(1) Technical Parameters
|Structure||Dimension||External Size H×W×D 2000×1800×900mm|
|Equipment Installation Method||19” standard rack and battery shelf|
|Door||With two front doors, and anti-theft three point lock for outdoor cabinet (support padlock)|
2.Double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 20mm heat insulation between two walls
|Temperature Control||Cooling||AC220V air conditioner|
|Lighting||LED lamp||DC48V LED lamp|
|Temperature||Temperature||Working Temperature: -40°C ~ +55°C|
|Storage Temperature: -50°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1124 × (1±5%)W/m2|
|1||Two Compartments Outdoor Telecom Cabinet||1||Set||External Size H×W×D 2000×1800×900mm|
Cooling Capacity: 1500W
Power Supply: AC220V, 50Hz
Cooling Capacity: 500W
Power Supply: AC220V, 50Hz
|4||Power Distribution Unit||1||Set||
Grade B Lightning Proof
AC Input: 63A/2P *1;
AC Output: 16A/1P*4;
DC Output: 16A/1P*4.
|5||Environment Monitoring Unit||1||Set||SM2400|
|6||Temperature and Humidity Sensor||2||PC|
|7||Door Sensor||4||PC||Two for controlling LED lamp on/off, the other two for door open alarm|
The ET18090200 Outdoor Integrated Telecom Enclosure is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

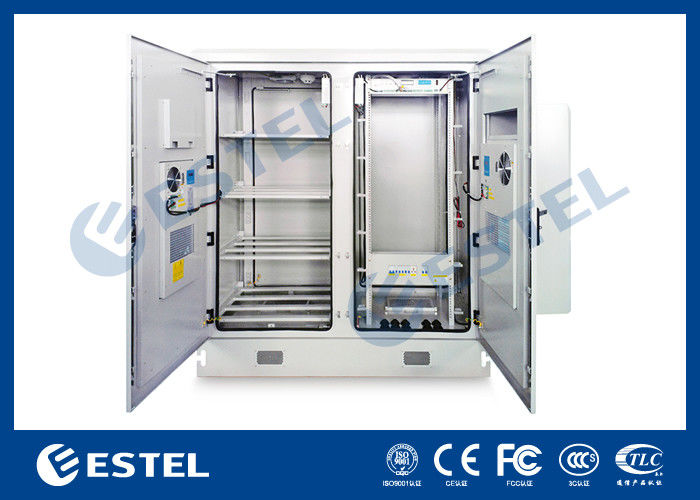

The cabinet, made of galvanized steel, is divided into equipment compartment and battery compartment. The right part of the cabinet is equipment compartment, which is separated from the battery compartment for heat insulation of the equipment space. The battery compartment is used for installing batteries. The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet also has roofs which is sun proof and water proof. There’re ventilations for releasing harmful gas generated by the batteries.
The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock. There’s open door alarm sensor, which works together with the environment monitoring unit.
4. Cabinet Structure
4.1 Door and Door Limit
(1) Cabinet door options: vertical hinge door, horizontal hinge door.
(2) The door limit device can limit the door position when it is open.
(3) The door limit function is automatically activated when the door is open, and should be canceled manually when the door is closed
(4) When the door is fully opened, the largest open angle is larger than 95°. If it is horizontal hinge door, it can prevent outside water from flowing into the equipment compartment from the upper side. The bottom edge of the door limit device is higher than the hinge level, which can offer enough operating space.
(5) After 1000 times open and close operation, the door and door device will have good function and have no excessive wear and tear.
(6) At the door limit status, the door limit device can bear the static load by door opening and closing at 22m/s wind, without mechanical failure and function failure.
The cabinet include grounding copper bar, 4mm thick, with 10×M6 flare-in nuts, 2×M8 flare-in nuts, 2×M10 flare-in nuts. The grounding bar is nickel plated. The screw is made from copper bar and with passivation surface treatment.
4.3 Theft Proof Design
4.4 Cable Entry
Feeder cable and other external cables all use bottom wiring method.
4.5 Appearance and Surface Treatment
Outdoor powder coat, with gray color. The coat is anti-shock, anti-aging, anti-solvent, anti-low temperature.
