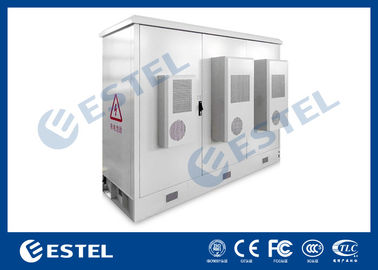

DDTE053B Integrated Outdoor Telecom Cabinet / Double Wall Outdoor Base Station Cabinet



Quick Details:



Place of Origin: Shenzhen, China (Mainland)

External Size H×W×D 2000×2400×800mm

Internal Size H×W×D 1700×2350×750mm

Brand Name: ESTEL

Structure: sandwich structure, double wall, with insulation,

Model Number: DDTE053B

Cabinet Layout: three compartments

Product Name: Outdoor Integrated Telecom Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: AC220V Air Conditioner and DC48V Fans

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU, environment monitoring system, battery



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, etc
Supply Ability: 7,000 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Dimension: H×W×D 2000×2400×800mm

Internal Dimension: H×W×D 1700×2350×750mm

Layout 3 compartments
Equipment Installation Method 19” rack
Door With three front doors, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; double walls.
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Welded or Assembled
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
semperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension:

H×W×D 2000×2400×800mm

Internal Dimension:

H×W×D 1700×2350×750mm

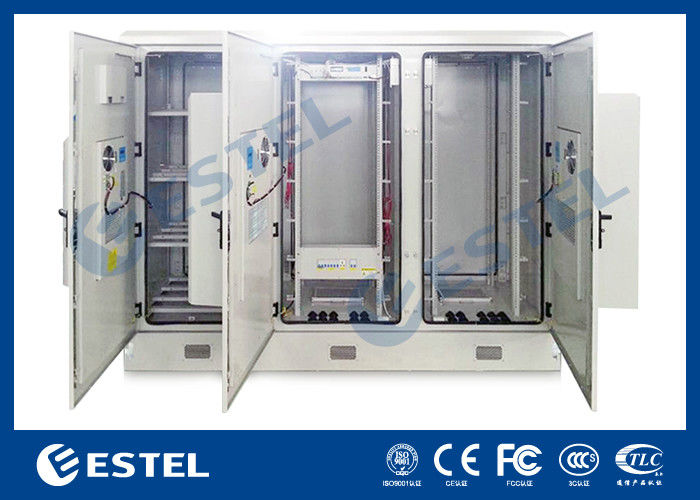

(2) 3 compartments: the left part is battery compartment, the middle and the right parts are equipment compartments;

(3) With three front doors, and special lock for outdoor cabinet (support padlock) ;

(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;

2

Air Conditioner

(for equipment compartment)

2 Set

Cooling capacity: 1.5KW;

AC220V, 50HZ;

Model:TC06-150JFH/B,

3

Air Conditioner

(for battery compartment)

1 Set

Cooling capacity: 500W, AC220V, 50HZ;

Model:TC06-50JFH/01

4 Fan 5 PC 12038, DC48V, start work at 35°C. Fans are individually connected with a 35°C temperature control switch. When temperature inside the cabinet is higher than 35°C, fans will start working; when temperature inside the cabinet is lower than 35°C, fans will stop working.
5 Environment Monitoring Unit 1 Set Model: SM2400
6 Water Sensor 3 PC
7 Smoke Sensor 3 PC
8 Temperature and Humidity Sensor 2 PC
9 Door Sensor 6 PC Three for controlling LED lamp, the other three for open door alarm
10 LED Lamp 3 PC DC48V
11 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4

12 Battery 8 Set 12V, 200AH; Model: 6GFMJ-200
13 Package 2 Set Wooden case, one for packing cabinet, one for packing batteries.



2. Description



The cabinet is three compartments cabinet. The cabinet cooling use air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.



2.1 Wire Routing Design



Feeder cable and other external cables all use bottom wiring method.



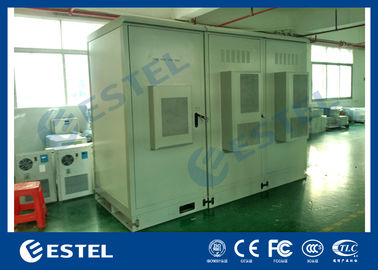

DDTE053B Base Station Cabinet 0



2.2 Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.



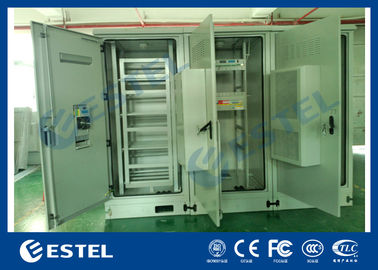

DDTE053B Base Station Cabinet 1



2.3 Door lock theft proof design



(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.



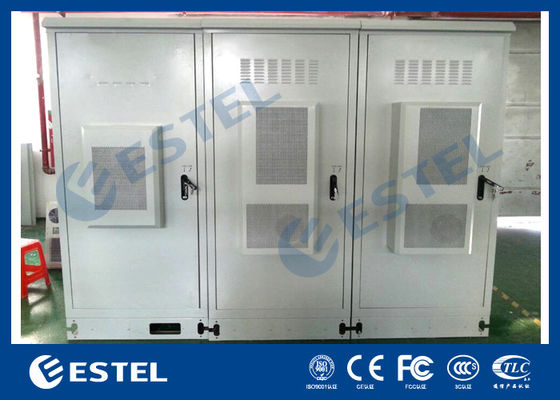

DDTE053B Base Station Cabinet 2



(2) Three point lock



 DDTE053B Base Station Cabinet 3

DDTE053B Base Station Cabinet 4



2.4 Connection and Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.

DDTE053B Base Station Cabinet 5



2.5 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



3. Applications



The DDTE053B Integrated Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



4. Features



  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • The equipment compartment cooling: air conditioner and fans. (Other cooling option: heat exchanger). MTBF≥50000h
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
  •  All the cables used in the cabinet are made from flame retardant materials.
