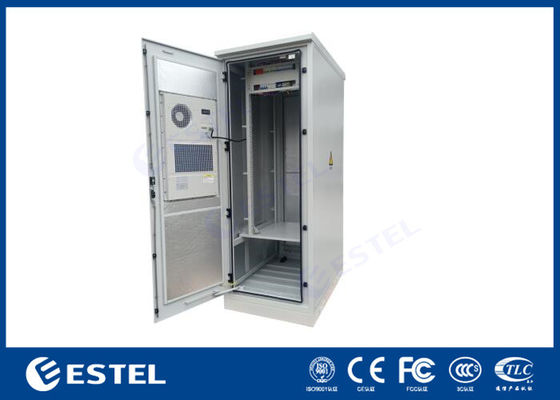

19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof

19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof
19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof 19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof 19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof 19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof

Large Image :  19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: DDTE067
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 6,000 sets per month
Detailed Product Description
External Size: H×W×D 1800×800×800mm Thickness: 1.2/1.5/2.0mm(Can Be Customized)
Standard: IEC Standard Illumination: 48V LED Lamps (immovable), With Protective Circuit Breaker
Grade B Lightning Proof: Nominal: 60KA, Max.: 100KA Applicaiton: Outdoor Telecom Base Station
Coating: Anti-corrosion Outdoor Powder Coating Protection Level: IP55
Material: Stainless Steel Function: Electrical Parts
Highlight:

outdoor equipment cabinet

,

outdoor power enclosure

,

Dustproof Outdoor Battery Enclosures

19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof





1. Application

An outdoor battery cabinet is a type of enclosure that is designed to house batteries used in outdoor applications. These cabinets are typically made of weather-resistant materials and are designed to protect the batteries from environmental factors such as rain, snow, and extreme temperatures.



2. Some features of outdoor battery cabinets include:



  • Material: Outdoor battery cabinets are typically made of materials that are resistant to weather and corrosion, such as aluminum, stainless steel, or powder-coated steel.
  • Cooling: fans and air conditioner. (Other cooling option: heat exchanger). MTBF≥50000.
  • Protection: Outdoor battery cabinets are designed to protect batteries from the elements, as well as from physical damage and theft. They may have locking doors or other security features to prevent unauthorized access.
  • Size: Outdoor battery cabinets come in a range of sizes to accommodate different battery sizes and quantities. The size of the cabinet will depend on the number and type of batteries it needs to house.
  • Mounting: Outdoor battery cabinets can be mounted on a variety of surfaces, such as walls, poles, or concrete pads. The type of mounting will depend on the location and application of the batteries.
  • Battery management: Some outdoor battery cabinets may have integrated battery management systems, which monitor battery performance, voltage, and temperature. These systems can help to optimize battery life and performance, as well as alert users to potential issues.



3. Technical Parameters





Item

Type Technical Parameter
Structure Dimension External Dimension: W×D×H 800×800×1800mm
Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Stainkless steel 1.2mm
Heat Insulation The insulation material is 20mm PEF.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: W×D×H 800×800×1800mm

(2) One compartment: the upper part is equipment compartment, the lower part is battery compartment;

(3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: stainless steel 1.2mm

(5)The insulation material is 20mm PEF.

2 Air Conditioner 1 Set

Cooling capacity: 0.5KW,

Power Supply: AC220V, 50HZ;

Model:TC06-50JFH/01

3 Auxiliary Direct Ventilation Fans 2 PC 12038 DC48V
4 Door Sensor 1 PC Used for controlling LED lamp
5 LED Lamp 1 PC DC48V
6 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4

7 Package 1 Set Wooden Case



4.  Cabinet Structure



The cabinet includes 19” equipment installation rack and battery shelf. The cabinet includes one air conditioner, installed on front door.

5. Cabinet Door and Lock



The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.

5.1 Door lock theft proof design

  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.



 19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof 0  19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof 1



  • Three point lock

19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof 2

19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof 3

5.2 Cable Inlet



Feeder cable and other external cables all use bottom wiring method.



19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof 4



5.3 Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof 5

5.4 Connection and Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.

19 Inch Equipment Rack Outdoor Battery Enclosures Anti Corrosion Dustproof Sunproof Rainproof 6

5.5 Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.





6.FAQ:



1. What types of equipment can be housed in an outdoor cabinet?

Outdoor cabinets can be used to house a wide range of equipment, including telecommunications equipment, electrical equipment, batteries, network equipment, and security systems.



2. What materials are used to make outdoor cabinets?

Outdoor cabinets are typically made of materials that are resistant to weather and corrosion, such as aluminum, stainless steel, or powder-coated steel. The specific material used will depend on the application and environmental conditions.



3. What features should I look for in an outdoor cabinet?

When selecting an outdoor cabinet, it's important to consider factors such as size, cooling, security, and cable management. Other features to consider may include ventilation, access panels, and mounting options.



4. Can outdoor cabinets be customized?

Yes, outdoor cabinets can often be customized to meet specific requirements. This may include modifications to the size, material, or features of the cabinet.



5. How do I maintain an outdoor cabinet?

To ensure the longevity of an outdoor cabinet, it's important to perform regular maintenance, such as cleaning, lubricating hinges and locks, and inspecting for damage. It's also important to ensure that any cooling systems are functioning properly and that the cabinet is properly sealed to prevent water ingress.



6. How do I choose the right outdoor cabinet for my application?

Choosing the right outdoor cabinet will depend on factors such as the size and type of equipment to be housed, the environmental conditions, and any specific requirements for cooling, security, or cable management. Working with a qualified supplier can help ensure that you select the best cabinet for your needs.
