MC2900 Controller The Ultimate Solution for High-Performance Telecom Power System

MC2900 Controller The Ultimate Solution for High-Performance Telecom Power System
MC2900 Controller The Ultimate Solution for High-Performance Telecom Power System MC2900 Controller The Ultimate Solution for High-Performance Telecom Power System

Large Image :  MC2900 Controller The Ultimate Solution for High-Performance Telecom Power System

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: M2900
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton/wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20,000 sets per month
Contact Now
Detailed Product Description
IP: Lpv4 Static/DHCP,lpv6 Static/DHCP, TCP/IP, UDP,HTTPS, SNMP V1/V2C/V3 Display: Multilingual LCD And Web Display
Firmware: Controller Firmware Upgrading Via USB/WEB/WIFl/bluetooth Rectifiers: Manages From 1 To 48 Rectifiers

MC2900 Controller



Introduction



Mc2900 is the latest generation DC power controller developed. It is based on ARM Cortex-A8 CPU, 256Nflash, 512M SRAM and linux operating system. Mc2900 offers a more robust, user-friendly, and easy-to-use interfaceThe controller provides the management function of rectifier, solar module, wind module, Dc/Dc module, HVDC modulediesel, VRLA battery and lithium-ion battery.



Key Features



  • lpv4 static/DHCP,lpv6 static/DHCP, TCP/IP, UDP,HTTPS, SNMP V1/V2C/V3
  • Multilingual LCD and web display
  • Controller firmware upgrading via USB/WEB/WIFl/bluetooth
  • Manages from 1 to 48 rectifiers





Measurement

22 x Analog & 12 x digital imput readings including: system voltage, load current, battery current, battery temperature,Ambient temperature,ambient humidity,12*Dl. 8*DO.etc.



Communication

The controller communicates with the host computer in 2 modes: Rs485 and ethernet (TcP/p, UDp, https and SNMp). Setting and editinooperational parameters, downloading operational history and alarm history are available vid WEB browser. Communication betweenthe controller and the rectifiers and the solar modules utilizes CAN communication.

SNMP protocol supports GET, SET and TRAP 4xRS485 ports for battery BMS, DG or extension function boards



Alarm History Log

200000 history alarms and 100000 history events



System Statrs Log

5000 battery test logs, 5000 battery charge logs, 5000 battery discharge logs, 5000 DG running logs



LCD&LED

128 x 160 LCD screen display to access current operating conditions, alarms, user settings; green/yellow/red LEDsindicate operation status and alarms



Collection and Management



  • Rectifier,solar module, wind module,DC/DCmodule, DC/AC module, HVDCmodule data
  • Narada and shoto lithium battery packdata collection
  • Lithium battery of any modbus/YDT-1363protocol based on RS485 or CAN interface
  • Jiangsu yaao batteryinspection datdacquisition
  • Smart AC meter or self-developed ACmetering board data collection
  • Smart DC meter data collectionSmart DG data collection and management
  • Smart ATS data collection and managementClimate data collection and managementSmart CB data collection and management
  • Energy calculation



Battery Management



l Boot and float management

l Charge current limitmanagement

l Temperature compensation

l LVD

l Battery test

l Midpoint voltageCapacity calculation

l Peak cut

l Lithium battery management

l Switch according tobattery capacity

l Switch according tobattery voltage

l DG test

l Remaining fuelcalculation

l Energy input prioritymanagement

l Rectifier energy savingmanagement

l Rectifier rotation



Alarms/Events



  • SPD alarm
  • Digital input alarm
  • Load fuse alarm
  • Manual mode alarm
  • Current imbalance
  • Ambient temperature alarm
  • Load disconnect
  • AC power failure
  • Battery fuse alarm
  • Battery discharge
  • Battery test fail

















  • Batteryimbalance
  • Battery disconnect
  • Battery temperature sensor fault
  • Battery temperature alarm
  • BMS communication fail
  • Rectifier AC input failure
  • Rectifier fault
  • Rectifier fan fault















  • Rectifier protection activated
  • Rectifier on/off status
  • Rectifier communication fail
  • System energy-saving mode
  • Energy-saving mode interruption
  • Solar module communication fail

















  • Solar module fault
  • Solar module fan fault
  • Solar module protection activated
  • Solar module on/off status
  • Solar module input failure
  • AC over voltage and under voltage
  • DC over voltage and under voltage

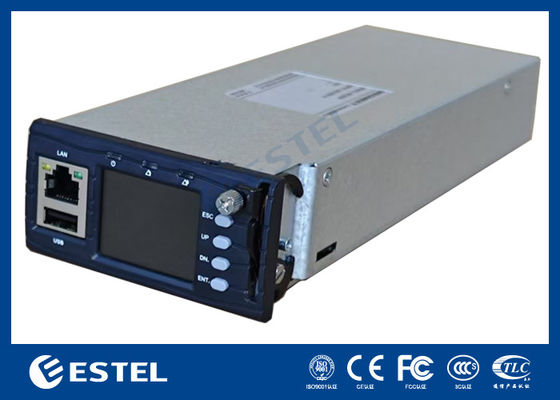

MC2900 Controller The Ultimate Solution for High-Performance Telecom Power System 0

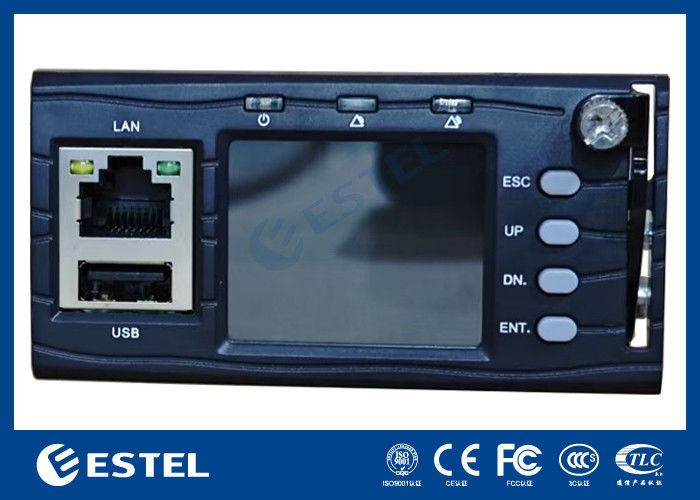

MC2900 Controller The Ultimate Solution for High-Performance Telecom Power System 1
