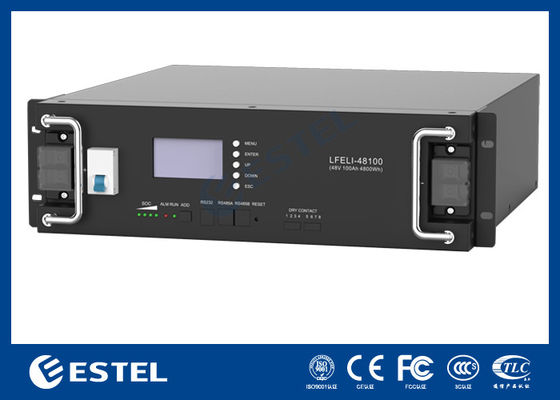

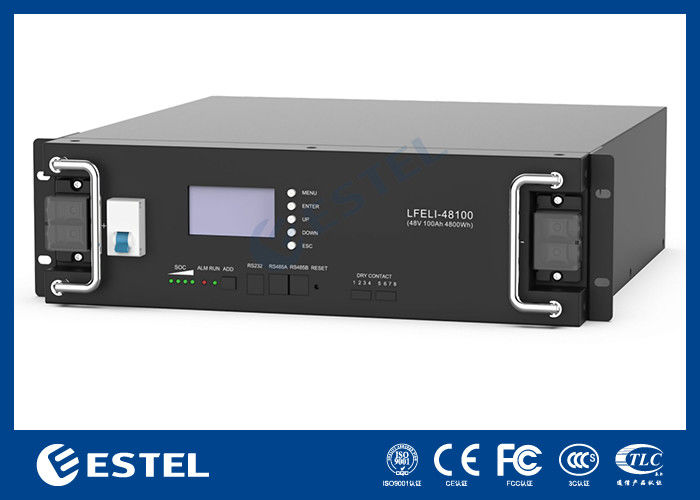

48V100Ah 48100 Lithium Iron Phosphate Battery for Telecom Power System

48V100Ah 48100 Lithium Iron Phosphate Battery for Telecom Power System
48V100Ah 48100 Lithium Iron Phosphate Battery for Telecom Power System 48V100Ah 48100 Lithium Iron Phosphate Battery for Telecom Power System

Large Image :  48V100Ah 48100 Lithium Iron Phosphate Battery for Telecom Power System

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: 48100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton/wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20,000 sets per month
Contact Now
Detailed Product Description
Model: 48100 Rated Capacity (5HR): 100 Ah
Nominal Voltage: 48V Discharge Ending Voltage: 40.5V
Charging Limited Voltage: 54V Max. Charging/Discharge Current: 100A

Lithium Iron Phosphate Battery



         48100 (48V100Ah)



Features Of LiFePO4 Battery



• Safe Lithium Iron Phosphate Technology

• Safe to use Low self-discharge rate

• Excellent high temperature performance

• High cycle times and long life

• High energy density and conversion efficiency

• Environmentally friendly without any heavy metals

• High-performance BMS battery management system

• Easy to install, 19-inch cabinet or wall-mounted installation





Physical Dimension-mm



48V100Ah 48100 Lithium Iron Phosphate Battery for Telecom Power System 0





Typical Applications



• Access Network Equipment

• Remote Switching Offices

• Mobile Communication Equipment

• Transmission Equipment

• Satellite Ground Stations

• Microwave Communication Equipment

• Communication field as backup power supply





Model 48100
Rated Capacity (5HR) 100 Ah
Nominal Voltage 48V
Discharge Ending Voltage 40.5V
Charging Limited Voltage 54V
Max. Charging/Discharge Current 100A
Weight Approx. 40KG
Energy 4800Wh
Display With LCD display
Max. number of parallel connection 15
Dimensions (W*D*H) mm 442*450*132
Design Life 20 years
Cycle Life 6000 cycles
IP Class IP30
Case Material SPCC
Operating Temperature Charging: 0 to +45℃ , Discharging: -10 to +55℃ , Storage: -20 to +60℃
Terminal M6





Constant Current Discharge Table (Amperes) at 25℃

Voltage Time 1 h 2 h 3 h 5 h 10 h
End of discharge voltage 40.5V 100A 50A 33.3A 20A 10A





                                          Constant Power Discharge Table (Watts) at 25℃
Voltage Time 1 h 2 h 3 h 5 h 10 h
End of discharge voltage 40.5V 4800W 2400W 1600W 960W 480W











48V100Ah 48100 Lithium Iron Phosphate Battery for Telecom Power System 1

48V100Ah 48100 Lithium Iron Phosphate Battery for Telecom Power System 2
