| Rectifier Module Rated power: | 3000W(176~300VAC) | System Dimension(mm): | 482.0(W)*350(D)*5U(H) |
|---|---|---|---|
| AC Distribution Input mode: | 220Vac（L-L） | DC Distribution Output voltage: | -43~-58VDC, Rated Value: -53.5VDC |
| Controller Signal input: | 4 AI (3 Battery Temp., 1 Ambient Temp) ,6 DI (SPD, 6 Common DI) | Environment Operating temperature: | -40℃~+75℃ |
5U Embedded Power System
Introduction

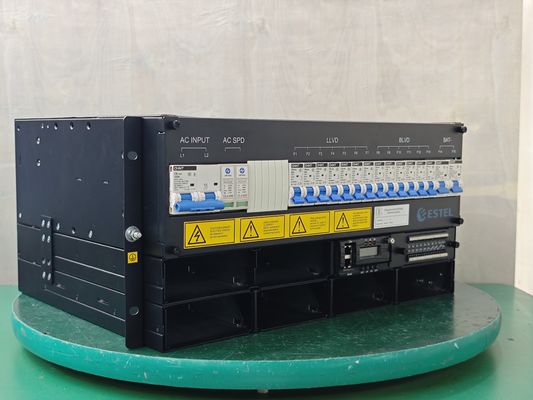

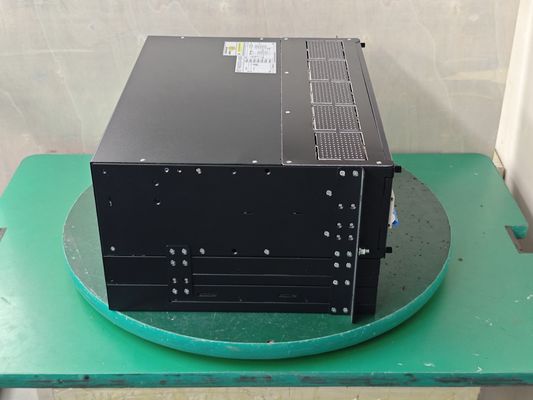

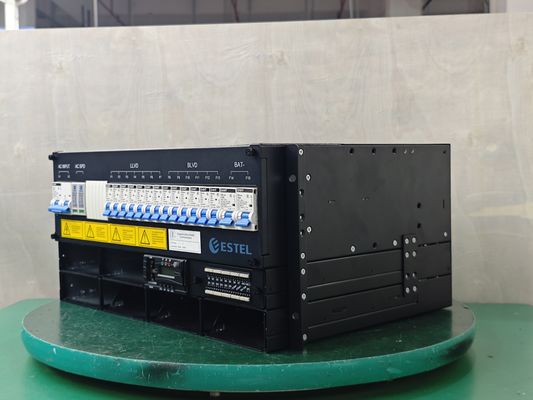

The ESTEL ET48300 M5E65A is a new embedded compact power supply, featuring a novel architectural design that delivers a small size and high power density (up to 24KW in 5U). This system prioritizes customer flexibility.
5U height compact design to meet critical application needs of fiber and microwave transmission, access device, switch. The system maximum power is 300A, with AC/battery/load MCBs. The cables are front accessing with MCB and busbar.The MR48 series rectifiers paired with the MC2600 controller guarantee safe, reliable, and flexible operation. Compact enough for most cabinets, it's an ideal replacement unit. Built on ESTEL's proven technology, the MR48 series is poised to meet future demands.
Key Features
Application Scenarios
Specifications
| Product Model | ET48300 M5E65A | ||
| System | Dimension(mm) | 482.0(W)*350(D)*5U(H) | |
| Weight | ≤20kg (without rectifiers) | ||
| Cooling mode | Natural cooling | ||
| Installation mode | Installed on 19-inch rack or inside the cabinet | ||
| Cabling mode | Top inlet and top outlet | ||
| Maintenance mode | Front maintenance, support module grade change | ||
| Protection level | IP20 | ||
| AC Distribution | Input mode | 220Vac(L-L) | |
| Input capacity | 1×125A/2P | ||
| Input voltage range | 90 ~ 300Vac | ||
| AC SPD | 20kA/40kA, 8/20μs | ||
| DC Distribution | Output voltage | -43~-58VDC, rated value: -53.5VDC | |
| Maximum capacity | 18kW(6×3KW) | 24kW(6×4KW) | |
| Battery breakers | 2×125A/1P | ||
| Load breakers |
LLVD:3×63A/1P, 2×40A/1P, 2×32A/1P BLVD:2×16A/1P, 2×10A/1P, 2×6A/1P |
||
| Rectifier Module | Input voltage | 85VAC～300VAC, rated 220VAC | |
| Efficiency | ≥96%@peak value | ||
| Rated power | 3000W(176~300VAC) | ||
| Working temperature | -40℃~+75℃(fully output below 50℃) | ||
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | ||
| Weight | ≤2kg | ||
| Cooling mode | Forced cooling with fan | ||
|
Controller
|
Signal input | 4 AI (3 Battery temp., 1 ambient temp) ,6 DI (SPD, 6 common DI) | |
| Alarm output | 6 dry contact | ||
| Communication port | LAN/RS232/RS485 interface, LAN-SNMP, TCP/IP | ||
| Display mode | LCD | ||
| Environment | Operating temperature | -40℃~+75℃ (When operating at full load, the temperature is not higher than 50℃) | |
| Storage temperature | -40℃~+75℃ | ||
| Operating humidity | 0%~95%(non-condensing) | ||
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) | ||
Diagram
MR483000HG2B-CS
| ACInput | DC Output | ||
| Input Voltage (Nominal) | 110VAC/220VAC | Output Voltage | -42 to -58VDC,rated: -53.5VDC |
| Input Voltage Range | 85 to 290VAC | Peak Efficiency | >96% |
| Max Input Current | 18A | Maximum Capacity | 3000W |
| Input Frequency | 45 to 65Hz | Maximum Output Current | 56.1A |
| Power Factor | ≥0.99 (220VAC @ 20% to 100%load) | THD | ≤5% @ 50% to 100% load |
| Control and Monitor | Environment | ||
| Communication Protocol | CAN | EMC | EN55032 class B；EN55035;IEC61000-3-2；IEC61000-3-3 |
| LED | Green-normal; yellow-alarm; red-fault | Safety | UL62368-1;EN62368-1；IEC62368-1 |
MR484000SG1-GS
l Maximum efficiency >96.5%
l Power derating from 45℃ to 75℃
l Output power derating at <176VAC
l High power density
| ACInput | DC Output | ||
| Input Voltage (Nominal) | 110VAC/220VAC | Output Voltage | -42 to -58VDC,rated: -53.5VDC |
| Input Voltage Range | 85 to 290VAC | Peak Efficiency | >96.5% |
| Max Input Current | 26A | Maximum Capacity | 4350W |
| Input Frequency | 45 to 65Hz | Maximum Output Current | 81.3A |
| Power Factor | ≥0.99 (220VAC @ 20% to 100%load) | THD | <3% @ ≥50% load |
| Control and Monitor | Environment | ||
| Communication Protocol | CAN | EMC | EN55032 class B；EN55035;IEC61000-3-11；IEC61000-3-12 |
| LED | Green-normal; yellow-alarm; red-fault | Safety | UL62368-1;EN62368-1；IEC62368-1 |
MC2600 Controller
Introduction
MC2600 is the new generation DC power controller developed by Megmeet. The controller adopts AR 32-bit cortex-M4CPU as primary processor. Mc2600 offers many features and functions, and a more robust, user-friendly, and easy-to-useinterface, Powerful hvbrid power management function includina diesel management, VRLA and ithium-ion batteriesand solar modules.
Key Features
Measurement
24 x Analog & 9 x digital imput readings including: system voltage, load curent, battery current, battery temperature, 8*Dl, 8*D0, etc
Communication
The controler communicates with the host computer in 2 modes: Rs485 and ethernet (WEB or SNMP). Setting and editing operationalparameters, downloading data logs and history alarm are available via WEB browser. Communication between the controller and therectifiers and the solar modules utiizes CAN communication.
SNMP protocol supports GET, SET and TRAP 4xRs485 ports for battery BMS, DG or extension function device
Alarm History Log
1000 event alarm history log, FlFO for system analysis
System Statrs Log
1000 records of output voltage and load current readings, and 50 records of historical battery test readings
LCD&LED
128 x 32 LCD screen display to access status, alarms, user settings; green/yellow/red LEDs indicate operation status and alarms
Battery Management
Battery Management
Alarms/Events
MC2900 Controller
Introduction
Mc2900 is the latest generation DC power controller developed by Megmeet. it is based on ARM Cortex-A8 CPU, 256Nflash, 512M SRAM and linux operating system. Mc2900 offers a more robust, user-friendly, and easy-to-use interfaceThe controller provides the management function of rectifier, solar module, wind module, Dc/Dc module, HVDC modulediesel, VRLA battery and lithium-ion battery.
Key Features
Measurement
22 x Analog & 12 x digital imput readings including: system voltage, load current, battery current, battery temperature,Ambient temperature,ambient humidity,12*Dl. 8*DO.etc.
Communication
The controller communicates with the host computer in 2 modes: Rs485 and ethernet (TcP/p, UDp, https and SNMp). Setting and editinooperational parameters, downloading operational history and alarm history are available vid WEB browser. Communication betweenthe controller and the rectifiers and the solar modules utilizes CAN communication.
SNMP protocol supports GET, SET and TRAP 4xRS485 ports for battery BMS, DG or extension function boards
Alarm History Log
200000 history alarms and 100000 history events
System Statrs Log
5000 battery test logs, 5000 battery charge logs, 5000 battery discharge logs, 5000 DG running logs
LCD&LED
128 x 160 LCD screen display to access current operating conditions, alarms, user settings; green/yellow/red LEDsindicate operation status and alarms
Collection and Management
Battery Management
l Boot and float management
l Charge current limitmanagement
l Temperature compensation
l LVD
l Battery test
l Midpoint voltageCapacity calculation
l Peak cut
l Lithium battery management
l Switch according tobattery capacity
l Switch according tobattery voltage
l DG test
l Remaining fuelcalculation
l Energy input prioritymanagement
l Rectifier energy savingmanagement
l Rectifier rotation
Alarms/Events
