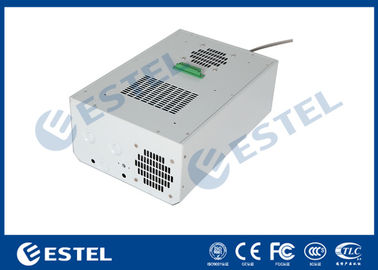

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS

Large Image : Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS

Product Details:

Place of Origin:	Shenzhen, China (Mainland)
Brand Name:	ESTEL
Certification:	ISO9001, CE, 3C, FCC, TLC
Model Number:	ETA003DC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	carton + wooden case + pallet
Delivery Time:	7-10 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	16,000 sets per month

Contact Now

Detailed Product Description

Power Supply Voltage Range:	DC45~59 V	Cooling Method:	Compressor, Active Cooling
Application:	Cooling For Telecom Cabinet, Base Station Room	Installation:	Side Mount
Working Temperature Range:	-15 - +55
Highlight:	server cabinet air conditioner , control cabinet air conditioner

Energy Saving Variable Frequency 300W DC Air Conditioner With R134a Refrigerant MODBUS Protocol IP55

Product Feature

Designed with all DC driven components like fans, compressor.
Precise temperature control through inverter digital regulation of compressor, fans.
Wide power supply voltage range: DC45~59 V
A comprehensive self-protection design to realize partial load starting, partial load operation at severe ambient condition
Low power consumption design with EER≥3.5
Energy saving reach to 50% comparing with A.C. version product
Strict process control and international brand parts deployed to ensure high quality and reliability of product
IP55 protection grade, suitable for T3 high temperature working condition, using environmentally friendly R134a refrigerant gas
The best choice for solar / wind / battery power supply cooling demand
Multiple self protection design & Interchangeable monitoring software interface, RS485 communication through MODBUS protocol.

Technical Data

Product Model		ETA003DC
Dimensions, Weight & Mount
External Dimensions (H x W x D)	MM	400x240x150
Weight	KG	7
Mounting Method		Side Mounting
Application		Outdoor
Environmental Protection & Performance
Working Temperature Range	ºC	-15 to +55
Noise Level	dB(A)	60
IP Grade	IP	IP55
Refrigerant		R134a
CE & RoHS Compliant		YES
Cooling Capacity & Operational Data
Cooling Capacity@L35 / L35 Cooling Capacity@L35 / L55	W W	300 180
Internal Airflow	M³/h	100
Power Consumption@L35/L35	W	130
Power Consumption@L35/L55	W	160
Power, Frequency & Range
Input Voltage	VDC	DC48V
Frequency	HZ	------

Cooling Performance

Item	Condition		Cooling Capacity(W)	Power Consumption(W)	EER
Item	Ambient Temperature(ºC)	Return Temperature(ºC)	ETA003DC	ETA003DC	ETA003DC
1	35	35	300W	130W	2.3
2	55	35	180W	160W	1.1

Cooling Capacity Chart and Power Consumption Chart

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS 0

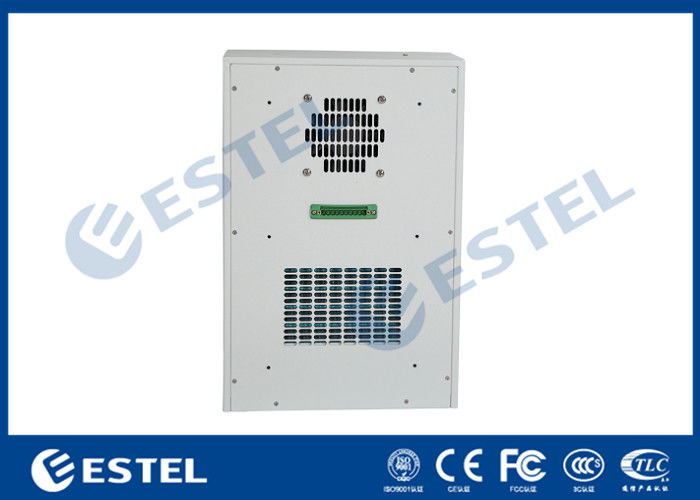

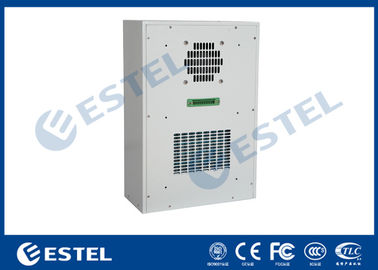

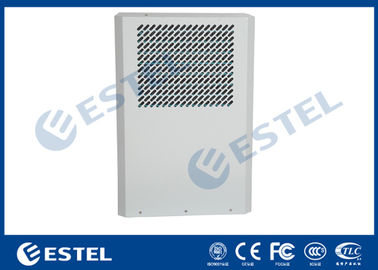

Dimension

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS 1

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS 2

Embedded Installation Used In Telecom Cabinet

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS 4

Production Process
