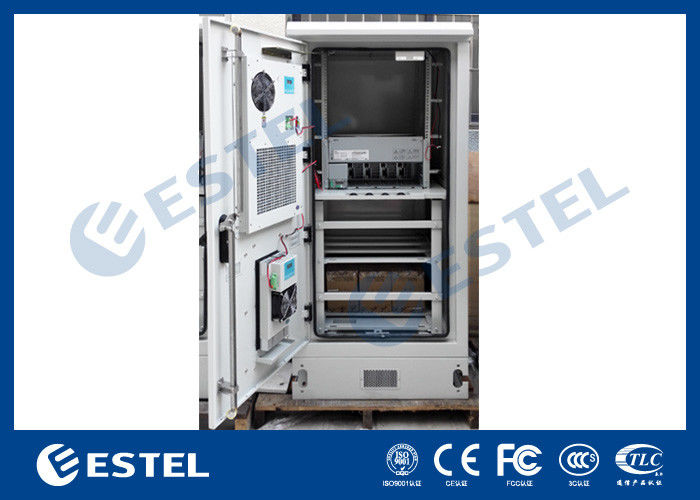

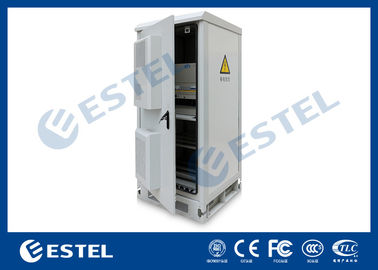

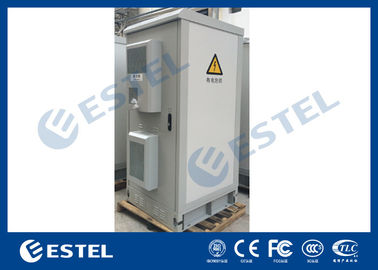

19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55

19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55
19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55 19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55 19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55 19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55 19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55 19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55

Large Image :  19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET7575175-UP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Detailed Product Description
Product Name: Outdoor Power Cabinet Material: Galvanized Steel
Coating: Anti-corrosion Outdoor Powder Coating Cabinet Lock: Anti-theft Three Point Lock
Protection Level: IP55 External Dimension: W×D×H 750×750×1750mm
Internal Dimension: W×D×H 650×650×1450mm
High Light:

power supply cabinet

,

outdoor power enclosure



Air Conditioner Type Outdoor Power Cabinet For Installing 19” Equipment and Battery, Waterproof, Dustproof



1.Quick Details



Place of Origin: Shenzhen, China (Mainland)

External Dimension: W×D×H 750×750×1750mm

Internal Dimension: W×D×H 650×650×1450mm

      Band Name: ESTEL



Structure: double wall, with insulation, s sandwich structure
Model Number: ET7575175-UP Cabinet Layout: one compartments: the upper part is equipment compartment, the lower part is battery compartment
Product Name: Outdoor Power Cabinet Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Protection Level: IP55
Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp
Heat Insulation: PEF Grounding Protection: copper bar
Color: grey (support custom made) Cooling: AC220V air conditioner and DC48V thermoelectric cooler / peltier air conditioner
Coating: anti-corrosion outdoor powder coating Accessories Options: PDU, rectifier system, environment monitoring system



2. Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Dimension: W×D×H 750×750×1750mm

Internal Dimension: W×D×H 650×650×1450mm

Layout 1 compartment
Equipment Installation Method Upper compartment: 19” rack; Lower compartment: battery shelf.
Door With one front door, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Ingress Protection IP55

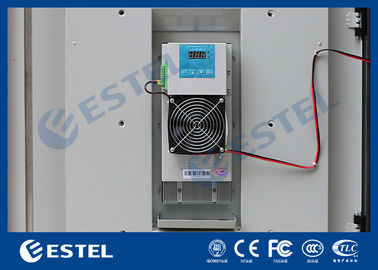

Temperature Control Cooling AC220V air conditioner and DC48V TEC air conditioner
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



3. Application



The ET7575175-UP outdoor power supply cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



4. Features

  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • Cabinet cooling: air conditioner. MTBF≥50000h.(other option: heat exchanger and fans).
  • Including -48VDC illumination LED lamp.
  • The cabinet includes power and environment monitoring unit, which can send power failure alarm, door open alarm, temperature and humidity alarm, smoke alarm, water alarm etc.
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are cable inlets separately for power cable, signal cable and optical cable.
  • All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
  • The cabinet includes 19” standard installation rack and battery shelf.
  • Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
  • Cabinet load bearing: ≥600kg
  • Flame retardance: comply with GB5169.7 test A
  • Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
  • Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
  • Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.

5. Components Installation

5.1 LED lamp, LED lamp sensor, smoke sensor, door sensor and temperature & humidity sensor are installed at the top of the cabinet.



19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55 0



5.2 Water sensor is installed at the bottom of the cabinet.

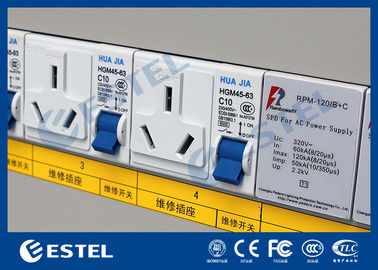

5.3 PDU, environment monitoring unit and rectifier system are installed on 19” rack.

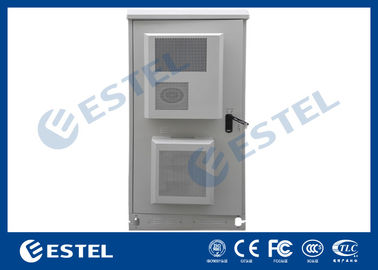

5.4 The cabinet includes totally two air conditioners, installed on front door.



6. Cable Inlet

Feeder cable and other external cables all use bottom wiring method.



19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55 1

7. Grounding Protection

  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.



8. Theft Proof Design

8.1 Door lock theft proof design

  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55 2

  • Three point lock

                         19 Inch Rack Outdoor Power Cabinet Waterproof and dustproof IP55 3

8.2 Connection and Fastening

  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.

8.3 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
