Detailed Product Description
Model Number: DDTE002B Paint: Anti-rust
Installation: Pole Mounted/wall Mounted Structure: Double Wall, With Insulation, Sandwich Structure
Protection Leve: IP55 Cooling: Fans
High Light:

outdoor wall mount cabinet

,

wall mounted enclosure

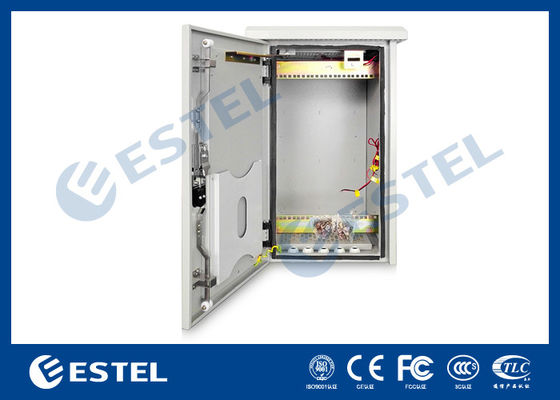

Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure



Quick Details:



Place of Origin: Shenzhen, China (Mainland)

External Size: W×D×H 435×460×736mm

Internal Size: W×D×H 6U× 380×19”mm

Brand Name: ESTEL Structure: double wall, with insulation, sandwich structure.
Model: DDTE002B Cabinet Layout: one compartment, for installing 19” equipment
Product Name: Outdoor Wall Mounted Cabinet Protection Level: IP55
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Cabinet Lock: anti-theft three point lock
Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized Steel Illumination: DC48V LED lamp
Heat Insulation: PEF Cabinet Door: one front door
Color: grey (support custom made) Cooling: fans
Coating: anti-corrosion outdoor powder coating Installation: wall mounted(also support pole mounted)



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10,000 sets per month
Delivery Time: 10-15 working days
Packaging Details: wooden case



1. Application



The DDTE002B Wall Mounted or Pole Mounted Outdoor Telecom Cabinet is widely used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



2. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Size: W×D×H 435mm×460mm×736mm

Internal Size: W×D×H 6U× 380×19”

Layout One compartment
Equipment Installation Method 19” standard rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material

1.Galvanized steel;

2.Double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

Structure Assembled
Ingress Protection IP55
Temperature Control Cooling DC48V fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -20°C ~ 55°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2



Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Size:

W×D×H 435×460×736mm

Internal Size:

W×D×H 6U× 380×19”mm

(2) One compartment;

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock).

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 20mm PEF heat insulation between two walls.

2 Fans 4 PC DC48V
3 Door Sensor 1 PC Used for controlling led lamp
4 LED lamp 1 PC DC48V
5 Package 1 Set Wooden Case



3. Structure



The cabinet is made of hot dip galvanized steel, double walls structure. There are heat insulation between the two walls. It is easy for installation and with perfect sealing performance.




Equipment Compartment: The DDTE002B Cabinet is used for installing telecom equipments. The cabinet is a double-wall cabinet, with 20mm heat insulation between the two walls. It uses 4 fans for cooling. It is sunproof and waterproof.



Door and Door Lock: The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.



Cabinet External Size : 435mm×460mm×736mm (W×D×H),



Cabinet Internal Size : 6U× 380×19” (W×D×H)

Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 0



4. Cabinet Layout



Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 1 Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 2



Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 3Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 4



Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 5Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 6



5. Features



5.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

5.2 The cabinet use fans for cooling.

5.3 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.

5.4 All the cables used in the cabinet are made from flame retardant materials.



6. Technical Specs



6.1 Applicable environment conditions:

Environment temperature: -40°C ~ + 60°C

Environment humidity (RH): ≤95% (at + 40°C)

Air pressure: 70kPa ~ 106kPa

6.2 Material: hot dip galvanized steel

6.3 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

6.4 Cabinet load bearing: ≥300kg

6.5 Ingress protection: IP55

6.6 Flame retardance: comply with GB5169.7 test A

6.7 Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).

6.8 Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.

6.9 Mechanical strength: each surface can bear upright pressure>980N; after the door is open, its outer end can bear upright pressure >200N.



7. Sensors Installation



LED illumination lamp, door sensor, fans are installed at the top part of the cabinet.



8. Cable Entrance



All outside cables use bottom entrance method.





Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 7



9. Grounding Protection



(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.





Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 8



10. Theft Proof Design



10.1 Door lock theft proof design

(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.



Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 9









(2) Three point lock



Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 10





10.2 Connection and Fastening

  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.

Anti Rust Paint 6U Outdoor Wall Mounted Cabinet , Outdoor 19 Rack Enclosure 11



10.3 Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



11. Leading Time



Usually about 15-20 days. The exact lead time need to be confirmed according to the quantity of order.



12. Packing and Shipping



The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
