AC220V Outdoor Cabinet Air Conditioner

China AC220V Outdoor Cabinet Air Conditioner supplier
AC220V Outdoor Cabinet Air Conditioner supplier AC220V Outdoor Cabinet Air Conditioner supplier AC220V Outdoor Cabinet Air Conditioner supplier AC220V Outdoor Cabinet Air Conditioner supplier AC220V Outdoor Cabinet Air Conditioner supplier AC220V Outdoor Cabinet Air Conditioner supplier

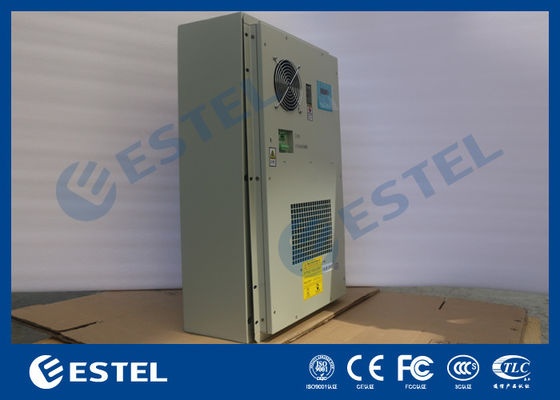

Large Image :  AC220V Outdoor Cabinet Air Conditioner

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: TC06-100JFH/01(KT049)

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton + wooden case + pallet
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, etc
Supply Ability: 14,000 sets per month
Contact Now
Detailed Product Description
Features: High Reliability Dimension Diagram: H×W×D: 695×424×220mm
Protection Level: IP55 Rated Cooling Capacity: 1000W
Cooling Method: Compressor, Active Cooling Working Temperature: -20°C ~ +55°C
Application: UPS Room



 Strong Adaptability AC220V 50HZ 1000W Industrial Cabinet Air Conditioner Cover Material(galvanized steel)


Quick Details:



Place of Origin: Shenzhen, China (Mainland) Rated Cooling Capacity : 1000W
Brand Name: ESTEL Rated Heating Capacity:300/500W (optional)
Model: TC06-100JFH/01(KT049) Dimension: H×W×D 695×424×220mm
Product Name: Outdoor Enclosure Air Conditioner Rated Input Voltage: AC220V/50Hz
Certification: ISO9001, CE, 3C, FCC, TLC Rated Input Current: 1.5A
Cover Material: galvanized steel Rated Input Power: 330W
Color: grey Working Temperature: -20°C ~ +55°C
Protection Level: IP55 Noise: ≤62dB
Installation Mode: door mounted Refrigerant: R134a
Support OEM Cooling Method: compressor active cooling



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, etc
Supply Ability: 14,000 sets per month
Delivery Time: 7-10 working days
Packaging Details: carton + wooden case+pallet



1. Specifications

(1) Technical Parameters



Environmental Performance working environmental temperature -20°C ~ 55°C
storage temperature -40°C ~ 70°C
working humidity ≤95%
Thermal Performance rated cooling capacity

1100W(L35 L35)

1000W(L25 L35)

rated heating capacity 300W/500W (optional)



Electrical Performance

rated input current

1.6A(L35 L35)

1.5A(L25 L35)

rated input power

352W(L35 L35)

330W(L25 L35)

rated input voltage AC220~240V 50HZ
Noise ≤62dB
Reliability MTBF 70000h
Refrigerant R134a



Dimension Diagram: H×W×D: 695×424×220mm



AC220V Outdoor Cabinet Air Conditioner



Size

Model

Specs A B C D E F G H I J K

TC06-100JFH/01

(KT049)

1000W 300 401 450 600 671 695 190 220 650 378 424



Door Hole-opening Diagram(mm):



AC220V Outdoor Cabinet Air Conditioner



Size

Spec

Model L M N O P Q R
1000W TC06-100JFH/01(KT049) 401 380 300 671 652 600 450





Installation Diagram



AC220V Outdoor Cabinet Air Conditioner



2. Description



TC06-100JFH/01(kt049) Air Conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information.





3. Application



The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.



4. Features



  • Strong adaptability
  • High intelligence
  • High precision
  • High reliability
  • Low noise
  • Low energy consumption
  • With 4 way switching value detection
  • With 1 way room air conditioner control
  • Voltage input range: 220VAC±15% 50Hz
  • With dry contact alarm output



5. System Principle Diagram



AC220V Outdoor Cabinet Air Conditioner



6. Electrical Wiring Diagram



AC220V Outdoor Cabinet Air Conditioner

Wiring Ports:



L N PE : power supply port (voltage input: 220VAC±15% 50Hz)

F+ F- : direct ventilation output port

AL1 AL2: general alarm output port

A+ B- SGND: RS485 communication port

N: not connected pin



7. System Control

7.1 Function and Application



ET731 intelligent air conditioner controller is a universal intelligent controller, controlling with highly integrated STC SCM. It can intelligently control thermostatic cabinet air conditioner working and hydrogen exhausting, including functions such as fault self diagnosis, power-on self start, or restart after unexpected failure caused by other reasons. The controller is compatible with all types of air conditioners in the market.



The controller, with the features of advanced performance, easy installation and setting, are widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.



7.2 Technical Parameter



  • 2×16 Chinese/English shift LCD display, user friendly;
  • Simultaneously display temperature and humidity inside the box and communication room temperature;
  • Temperature measurement accuracy: 0.1 °C; humidity measurement accuracy:5%;
  • Can store 180 days’ daily event record, 1 record every day;
  • Daily highest temperature, lowest temperature, average temperature
  • Daily event record;
  • Save the former day’s daily data at 0:00 every day; Can query 180 days’ daily record information;
  • RS485 communication, YD/T 1363.1-2005 standard protocol, support remote detection and control;
  • Control mode: pulse (Non dry contact air conditioner), conducting (dry contact air conditioner)
  • Real-time control air conditioner on/off
  • Power supply: AC185V~264V/50Hz;
  • Power consumption:≤5W;
  • Working environment: -30°C~70°C; <90%RH;
  • Installation method: guide rail, hanging;
  • Dimension(L×W×H):150mm×190mm×45mm



7.3 Operating Instruction



ET731 uses English interfaces, which can be operated easily. All the operations can be realized with four buttons. The following is the control board diagram:



AC220V Outdoor Cabinet Air Conditioner





Interface 1:



AC220V Outdoor Cabinet Air Conditioner



Line 1: temperature and humidity inside the thermostatic box (or area I);

Line 2: box air conditioner status, real time clock;

  • ------- cooling start sign;

☼ ------- heating start sign;

♂ ------- hydrogen exhaust /direct ventilation sign;

-- ------- compressor/ heater stop working.



Interface 2:



AC220V Outdoor Cabinet Air Conditioner



Line 1: environment (or area II) temperature and humidity;

Line 2: inside and outside coil temperature display (T3, T4);



Interface 3:



AC220V Outdoor Cabinet Air Conditioner



Circularly display current alarms;

When multiple alarms occur, it will display each alarm information circularly.



8. Mainboard Wiring Diagram

AC220V Outdoor Cabinet Air Conditioner



9. Leading Tme



Usually about 7-10 days. The exact lead time need to be confirmed according to the quantity of order.
