One Compartment Outdoor Telecom Cabinet IP55 Galvanized Steel Double Wall

China One Compartment Outdoor Telecom Cabinet IP55 Galvanized Steel Double Wall supplier
One Compartment Outdoor Telecom Cabinet IP55 Galvanized Steel Double Wall supplier One Compartment Outdoor Telecom Cabinet IP55 Galvanized Steel Double Wall supplier

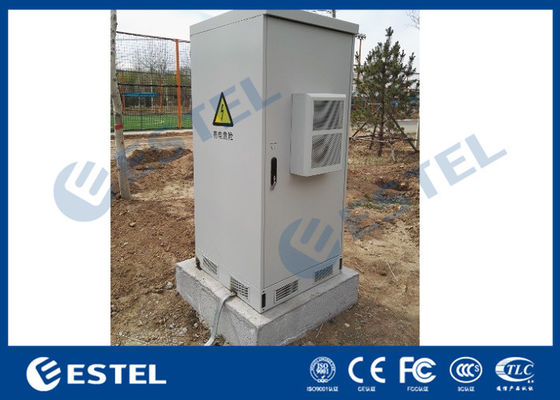

Large Image :  One Compartment Outdoor Telecom Cabinet IP55 Galvanized Steel Double Wall

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 131090920050004

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case with pallets
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Contact Now
Detailed Product Description
Material: Galvanized Steel, Double Wall With Insulation Door Type: With One Front Door
External Dimension: W×D×H 900×900mm×2000mm Ingress Protection: IP55
Temperature Control: Air Conditioner Package: Wooden Case With Pallets



One Compartment Galvanized Steel Double Wall Outdoor Telecom Cabinet IP55



1. Cabinet Application



This series outdoor telecom cabinet is made of galvaznied steel,it is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



2. Cabinet Parameters



Configuration Item Technical Parameter
Cabinet Body Size

External Size

W×D×H: 900mm×900mm×2000mm

Component The whole cabinet includes three parts: the top cover, the cabinet body and the base. The installation method is floor mount.
Material Galvanized steel,double wall with heat insulation.
Structure
  • Double wall, with insulation.
  • One front door , hidden zinc alloy hinge.
  • Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with anti-theft three-point lock(support padlock).
  • Door stopper is installed on the inside of the cabinet door.
  • Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof.
  • Include standard 19“ rack inside the cabinet
  • Cable inlets at the bottom of cabinet.
  • Grounding protection: copper bar.
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Anti-corrosion outdoor powder coating RAL7035
Ingress Protection IP55
Working Temperature -40°C~+85°C
Cooling Method



Air Conditioner



Cooling capacity: 1000W; Power Supply: DC48V; Installed on front door



3. Cabinet Key Features



(1) Galvanized Steel, double wall with insulation.

(2) Cabinet cooling system: air conditioner with 1000W cooling capacity

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.

(4) All the cables used in the cabinet are made from flame retardant materials.

(5)Protection grade :IP55.

(6)Security design: Embedded doors, embedded hinges, 3-point security locks.



4. Cooling System



There is one air conditioner with 1000W cooling capacity installed on the front door.



One Compartment Outdoor Telecom Cabinet IP55 Galvanized Steel Double Wall



5. Cabient Internal Racks



 One Compartment Outdoor Telecom Cabinet IP55 Galvanized Steel Double Wall



6.Cabinet Production



One Compartment Outdoor Telecom Cabinet IP55 Galvanized Steel Double Wall



7. Factory Introduction



Factory Size: 3000 Square Meters

No. of Main Production Lines: 5

Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered

Production Experience: 13 Year
