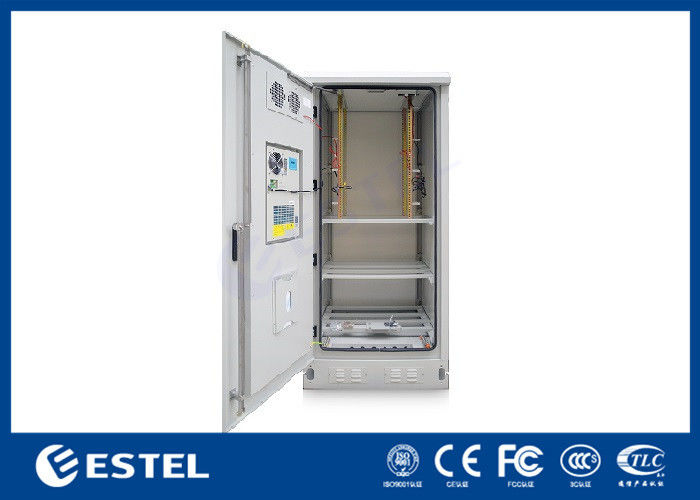

Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure

China Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure supplier
Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure supplier Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure supplier Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure supplier Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure supplier Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure supplier Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure supplier

Large Image :  Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET7070150-UP

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 6,000 sets per month
Contact Now
Detailed Product Description
Internal Size: H×W×D 1250×600×600mm Coating: Anti-corrosion Outdoor Powder Coating
Model Number: ET7070150-UP External Dimension: H×W×D 1500×700×700mm
Application: Outdoor Telecom Base Station Structure: Double Wall, With Insulation, Sandwich Structure.

Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure



Quick Details:



Place of Origin: Shenzhen, China (Mainland)

External Size H×W×D 1500×700×700mm

Internal Size H×W×D 1250×600×600mm

Brand Name: ESTEL

Structure: double wall, with insulation, sandwich structure

Model Number: ET7070150-UP

Cabinet Layout: one compartment,the upper part for installing 19” equipment, the lower part for installing battery

Product Name: Outdoor Power Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: 100W/K DC48V heat exchanger

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU, inverter



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Size H×W×D 1500×700×700mm

Internal Size H×W×D 1250×600×600mm

Layout One compartment,the upper part for installing 19” equipment, the lower part for installing battery
Equipment Installation Method 19” rack, battery tray
Door With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; double wall
Heat Insulation There are heat insulation between inner wall and outer wall.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling DC48V heat exchanger
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Size H×W×D 1500×700×700mm

Internal Size H×W×D 1250×600×600mm

(2)One compartment,the upper part for installing 19” equipment, the lower part for installing battery

(3)With one front door one back door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4)Cabinet left side, right side and back: sandwich structure panel, outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS.

(5) Cabinet door and base: outer plate: 1.5mm galvanized steel , inner plate: 0.8mm galvanized steel, insulation: 40mm PEF.

(6) Cabinet roof: sandwich structure panel (outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS. ) + 1.0mm galvanized steel.

2 Heat Exchanger 1 Set

Heat Exchange Capacity: 100W/K,

Power Supply:DC48V

3 Door Sensor 1 PC For controlling LED lamp on/off
4 LED Lamp 1 PC DC48V
5 Package 1 Set Wooden Case



Cabinet Dimension Diagram



Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure



2. Features



  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • Cabinet cooling: heat exchanger. (Other cooling option: air conditioner and fans). MTBF≥50000h
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
  • All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
  • The cabinet includes 19” standard installation rack.
  • Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
  • Cabinet load bearing: ≥600kg
  • Flame retardance: comply with GB5169.7 test A
  • Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
  • Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
  • Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.



3. Applications



The ET7070150-UP Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



4. Description

4.1 Cabinet Material



The cabinet is made of galvanized steel, with double walls, there are heat insulation between inner wall and outer wall. The insulation material PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.



4.2 Cabinet Structure



The cabinet includes 19” equipment installation rack. The cabinet includes one heat exchanger, installed on front door.



4.3 Cabinet Door and Lock



The cabinet includes one front door and one back door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.



4.3.1 Door lock theft proof design



  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

                           Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure



  • Three point lock

                                            Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure



4.4 Cable Inlet

Feeder cable and other external cables all use bottom wiring method.



                                     Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure



4.5 Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.                                        Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure



4.6 Connection and Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.



                                                              Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure



4.7 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



5. Packing and Shipping

                                                  Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.



Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure



6. Our Partner



Outdoor Power Cabinet / Battery Enclosure / IP55 19inch Rack Base Station Enclosure
