Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box

Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box
Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box

Large Image :  Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: L/C,T/T, etc
Supply Ability: 10,000 sets per month
Detailed Product Description
Model Number: ET453070P/02 Proof: Waterproof
Protection Leve: IP55 Material: Galvanized Steel
External Size: W×D×H 450×300×700mm Color: Grey
Type: Distribution Box,Control Box,OEM Aluminum Extrusion Housing,wall Mount Cabinet Outdoor Wall Mounted Cabinet 6u Rackmount,OEM Parts Protection Level: IP55
Size: 19 Inch Cabinet Standard: 19inch
Products Status: Used Surface Finish: Powder Coating
Package: Wooden Case With Pallets
High Light:

wall mounted enclosure

,

outdoor network cabinet

,

Sandwich Galvanized Steel Metal Enclosure



Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box



1. Description



Application Scope

The Outdoor Telecom Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.The Outdoor Telecom Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



Applicable Environment Conditions:

      Environment temperature: -40°C ~ + 70°C;

      Environment humidity (RH): ≤95% (at + 40°C);

      Air pressure: 62kPa ~ 102kPa.



Door and Door Lock: the cabinet includes one front door. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.



Material: galvanized steel.



Surface Treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.



Cabinet Load Bearing: ≥300kg.



Ingress Protection: IP55.



Flame Retardance: comply with GB5169.7 test A.



Insulation Resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).



Withstand Voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.



Mechanical Strength: each surface can bear upright pressure>980N; after the door is open, its outer end can bear upright pressure >200N.



2. Quick Details



Place of Origin: Shenzhen, China (Mainland)

External Size:

W×D×H 450×300×700mm

Internal Size:

W×D×H 357×214×601mm (19”, 7U)

Brand Name: ESTEL Structure: double wall, with insulation
Model: ET453070P/02 Cabinet Layout: one compartment, for installing 19” equipment
Product Name: Outdoor Wall Mounted Cabinet Protection Level: IP55
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Cabinet Lock: anti-theft three point lock
Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized Steel Illumination: DC48V LED lamp
Heat Insulation: PEF Cabinet Door: one front door
Color: grey (support custom made) Cooling: DC48V Air Conditioner
Coating: anti-corrosion outdoor powder coating Installation:wall mounted (also support pole mounted)



Payment & Shipping Terms



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: T/T, L/C, etc
Supply Ability: 10,000 sets per month
Delivery Time: 7-15 working days
Packaging Details: wooden case



3. Specifications



(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Size:

W×D×H 450×300×700mm

Internal Size:

W×D×H 357×214×601mm (19”, 7U)

Layout One compartment
Equipment Installation Method 19” standard rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material

1.Galvanized steel;

2.Double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

Structure Assembled
Ingress Protection IP55
Temperature Control Cooling DC48V air conditioner
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -20°C ~ 55°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2



(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Size: W×D×H 450×300×700mm

Internal Size:

W×D×H 357×214×601mm (19”, 7U)

(2) One compartment;

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 40mm PEF heat insulation between two walls

2 Air Conditioner 1 Set

Power Supply: DC48V

3 Fans 2 PC DC48V
4 Door Sensor 1 PC Used for controlling led lamp
5 LED lamp 1 PC DC48V
6 Package 1 Set Wooden Case





4. Feature



  1. The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  2. The cabinet use DC48V 100W peltier air conditioner and fans for cooling.
  3. The cabinet includes -48VDC LED lamp for illumination.
  4. The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re cable inlets individually for power cable, signal cable and optical cable at the bottom of cabinet.
  5. All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.
  6. The cabinet use standard 19” rack installation method.



5. Dimension Diagram

Cabinet External Size: 450mm×300mm×700mm (W×D×H).



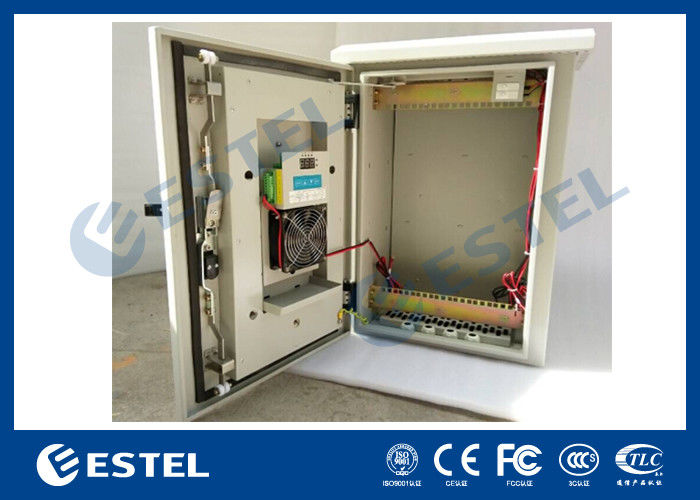

Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 0



6. Cabinet Layout



Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 1









Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 2

Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 3

Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 4

Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 5

Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 6



7. Sensors Installation

LED illumination lamp, door sensor, fans are installed at the top part of the cabinet.

8. Cable Entrance

All outside cables use bottom entrance method.



Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 7

9. Grounding Protection

(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.



Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 8



10. Theft Proof Design

10.1 Door lock theft proof design

(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.



Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 9





Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 10



(2) Three point lock



Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 11





10.2 Connection and Fastening

  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.





Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 12



10.3 Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



11. Cabinet Installation

Install the cabinet as the following diagram(also support wall mounted).



Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 13



12. Packing and Shipping



Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box 14







Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.





FAQ

Q: Are you trading company or manufacturer?
A: We are Manufacturer. We can do OEM/ODM business.

Q: What do you manufacture and supply?

A: Our company mainly produces Outdoor Telecom Cabinet

Q: Do you need drawings for quotation and production?

A: Yes, all our products are customized. We need either drawings or prototypes.
