Product Details:
Payment & Shipping Terms:
|
| Package: | Cartons | Battery Input: | 48V DC, Max 200A (Supports Li-Ion/VRLA Batteries) |
|---|---|---|---|
| Rectifier: | MR484000SG1-GS, 4000W, 96.5% Efficiency, Hot-Swappable | Ac Output: | 220VAC ±10%, 50/60Hz, 63A Max (Single-Phase) |
| Battery Distribution: | 2×125A MCB, LVD 200A, Supports Parallel Battery Banks | Dc Distribution: | -53.5VDC Nominal, 8×Load MCBs (10A-63A Configurable) |
| Input Voltage Dc: | 40-60VDC (Battery Voltage Range) | Nominal Capacity: | 12KW (3×4KW Rectifiers), Expandable To 15KW |
| Produced By: | ESTEL Power Technologies (Certified ISO 9001/14001) | Ac Output Power: | N/A (DC System Only, AC Output For Auxiliary Loads) |
| Dc Load Distributions: | 8×Configurable MCBs (10A/20A/32A/63A Per Channel) | Industrial Ac Input: | 85-300VAC, 45-65Hz, 26A Max (Per Rectifier) |
| Dc Input: | N/A (Integrated Rectifier-Battery System) | Power Capacity: | 9KW Standard, 12KW Peak (Redundant Mode) |
Introduction

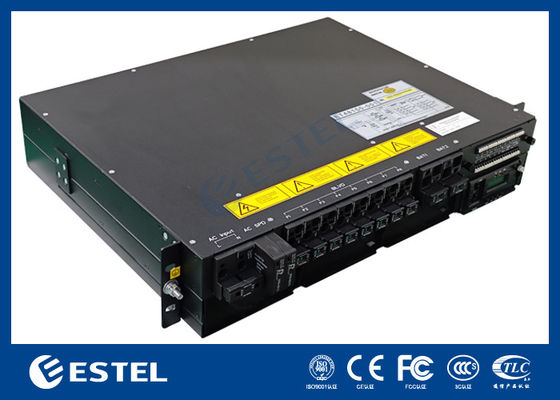

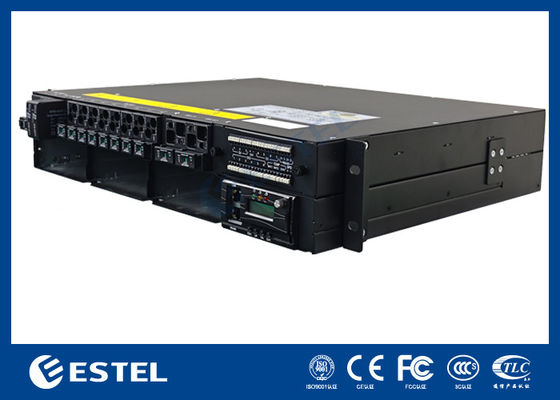

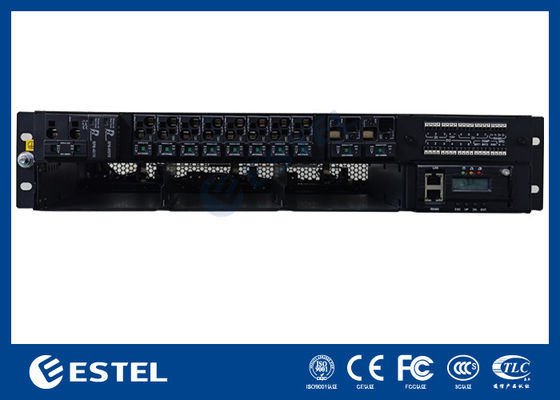

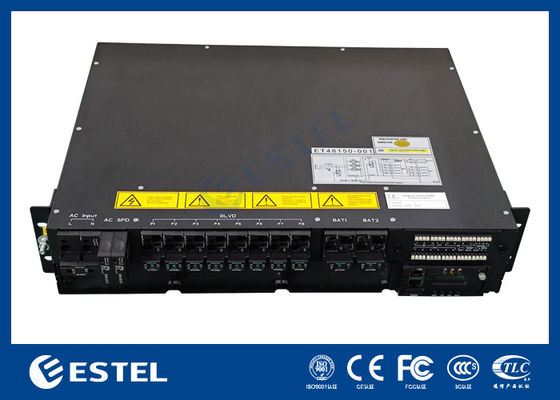

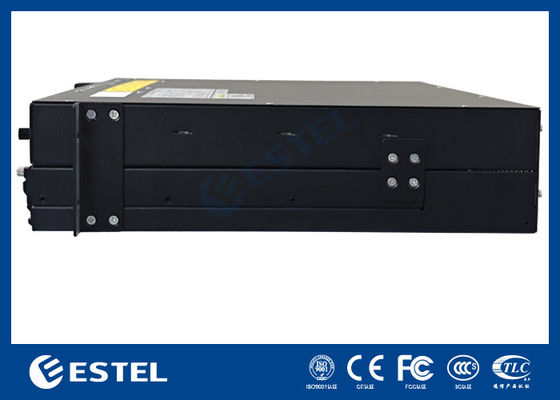

The ESTEL ET48200 M5E32A is a new embedded compact power supply, featuring a novel architectural design that delivers a small size and high power density (up to 12KW in 2U). This system prioritizes customer flexibility.
Its high-density pluggable circuit breakers and rectifiers allow for effortless field configuration to meet diverse application requirements. The MR48 series rectifiers paired with the MC2600 controller guarantee safe, reliable, and flexible operation. Compact enough for most cabinets, it's an ideal replacement unit. Built on ESTEL's proven technology, the MR48 series is poised to meet future demands.
Key Features
Application Scenarios
Specifications
| Product Model | ET48200 M5E32A | ||
| System | Dimension(mm) | 482.0(W)*350.0(D)*2U(H) | |
| Weight | < 10kg (without rectifier module and packaging) | ||
| Cooling method | Natural cooling | ||
| Installation | 19-inch rack mount | ||
| Routing method | Front inlet and front outlet | ||
| Maintenance method | Front maintenance, support hot-swap | ||
| Protection level | IP20 | ||
| AC Distribution | Input mode | Single-phase 220V | |
| Input capacity | 1 * 63A/2P | ||
| Frequency | 45~65Hz, rated value: 50Hz/60Hz | ||
| AC SPD | 10kA/20kA, 8/20μs | ||
| DC Distribution | Output voltage | -43~-58VDC, rated output: -53.5VDC | |
| Maximum capacity | 9KW (3kW*3) | 12KW (4kW*3) | |
| Battery breakers | 2 * 125A/1P | ||
| Load breakers | 2x10A/1P,2x20A/1P,2x32A/1P,2x63A/1P(Max 8 load MCBs ) | ||
| 1 x LVD 200A | |||
| Rectifier Module | Input voltage | 85VAC～300VAC, Rated value: 220VAC | |
| efficiency | ≥96.6% | ||
| Rated output power | 4000W (176Vac～300Vac) | ||
| Working temperature | -40℃~+75℃(fully output below 50℃) | ||
| Size | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | ||
| Weight | ≤2.1kg | ||
| Cooling method | Forced cooling | ||
| Power Factor | ≥0.99 @220Vac 20-100% Load | ||
| Controller | Signal input | 4 Al(3 Battery temp., 1 ambient temp),7 Dl(SPD, 6 common Dl) | |
| Alarm output | 6 dry contact | ||
| Communication ports | RS485, SNMP | ||
| Display mode | LCD | ||
| Environment | Operating temperature | -40℃~+65℃ | |
| Storage temperature | -40℃~+70℃ | ||
| Operating humidity | 5%~95%(non-condensing) | ||
| Altitude | 0~3000m (When the altitude is between 2000m and 3000m, the maximum operating temperature decreases by 1°C with every 200m increase in altitude) | ||
Diagram
MR483000HG2B-CS
| ACInput | DC Output | ||
| Input Voltage (Nominal) | 110VAC/220VAC | Output Voltage | -42 to -58VDC,rated: -53.5VDC |
| Input Voltage Range | 85 to 290VAC | Peak Efficiency | >96% |
| Max Input Current | 18A | Maximum Capacity | 3000W |
| Input Frequency | 45 to 65Hz | Maximum Output Current | 56.1A |
| Power Factor | ≥0.99 (220VAC @ 20% to 100%load) | THD | ≤5% @ 50% to 100% load |
| Control and Monitor | Environment | ||
| Communication Protocol | CAN | EMC | EN55032 class B；EN55035;IEC61000-3-2；IEC61000-3-3 |
| LED | Green-normal; yellow-alarm; red-fault | Safety | UL62368-1;EN62368-1；IEC62368-1 |
MR484000SG1-GS
l Maximum efficiency >96.5%
l Power derating from 45℃ to 75℃
l Output power derating at <176VAC
l High power density
| ACInput | DC Output | ||
| Input Voltage (Nominal) | 110VAC/220VAC | Output Voltage | -42 to -58VDC,rated: -53.5VDC |
| Input Voltage Range | 85 to 290VAC | Peak Efficiency | >96.5% |
| Max Input Current | 26A | Maximum Capacity | 4350W |
| Input Frequency | 45 to 65Hz | Maximum Output Current | 81.3A |
| Power Factor | ≥0.99 (220VAC @ 20% to 100%load) | THD | <3% @ ≥50% load |
| Control and Monitor | Environment | ||
| Communication Protocol | CAN | EMC | EN55032 class B；EN55035;IEC61000-3-11；IEC61000-3-12 |
| LED | Green-normal; yellow-alarm; red-fault | Safety | UL62368-1;EN62368-1；IEC62368-1 |
MC2600 Controller
Introduction
MC2600 is the new generation DC power controller developed by Megmeet. The controller adopts AR 32-bit cortex-M4CPU as primary processor. Mc2600 offers many features and functions, and a more robust, user-friendly, and easy-to-useinterface, Powerful hvbrid power management function includina diesel management, VRLA and ithium-ion batteriesand solar modules.
Key Features
Measurement
24 x Analog & 9 x digital imput readings including: system voltage, load curent, battery current, battery temperature, 8*Dl, 8*D0, etc
Communication
The controler communicates with the host computer in 2 modes: Rs485 and ethernet (WEB or SNMP). Setting and editing operationalparameters, downloading data logs and history alarm are available via WEB browser. Communication between the controller and therectifiers and the solar modules utiizes CAN communication.
SNMP protocol supports GET, SET and TRAP 4xRs485 ports for battery BMS, DG or extension function device
Alarm History Log
1000 event alarm history log, FlFO for system analysis
System Statrs Log
1000 records of output voltage and load current readings, and 50 records of historical battery test readings
LCD&LED
128 x 32 LCD screen display to access status, alarms, user settings; green/yellow/red LEDs indicate operation status and alarms
Battery Management
Battery Management
Alarms/Events
MC2900 Controller
Introduction
Mc2900 is the latest generation DC power controller developed by Megmeet. it is based on ARM Cortex-A8 CPU, 256Nflash, 512M SRAM and linux operating system. Mc2900 offers a more robust, user-friendly, and easy-to-use interfaceThe controller provides the management function of rectifier, solar module, wind module, Dc/Dc module, HVDC modulediesel, VRLA battery and lithium-ion battery.
Key Features
Measurement
22 x Analog & 12 x digital imput readings including: system voltage, load current, battery current, battery temperature,Ambient temperature,ambient humidity,12*Dl. 8*DO.etc.
Communication
The controller communicates with the host computer in 2 modes: Rs485 and ethernet (TcP/p, UDp, https and SNMp). Setting and editinooperational parameters, downloading operational history and alarm history are available vid WEB browser. Communication betweenthe controller and the rectifiers and the solar modules utilizes CAN communication.
SNMP protocol supports GET, SET and TRAP 4xRS485 ports for battery BMS, DG or extension function boards
Alarm History Log
200000 history alarms and 100000 history events
System Statrs Log
5000 battery test logs, 5000 battery charge logs, 5000 battery discharge logs, 5000 DG running logs
LCD&LED
128 x 160 LCD screen display to access current operating conditions, alarms, user settings; green/yellow/red LEDsindicate operation status and alarms
Collection and Management
Battery Management
l Boot and float management
l Charge current limitmanagement
l Temperature compensation
l LVD
l Battery test
l Midpoint voltageCapacity calculation
l Peak cut
l Lithium battery management
l Switch according tobattery capacity
l Switch according tobattery voltage
l DG test
l Remaining fuelcalculation
l Energy input prioritymanagement
l Rectifier energy savingmanagement
l Rectifier rotation
Alarms/Events
