19-inch Rack-mount Environment Monitoring System Model FSU1000

1. Product Parameter

Demension: W 440 mm * D 200 mm * 4 4 mm (19 inches, 1 u)

Accuracy: DC VOLTAGE ± 0.5%

Operating voltage: DC36-72V or AC90-264V

Rated power: 5W (whole machine power consumption, excluding external power Supply) operating environment temperature:-20 °c-55 °C

Storage and transportation temperature:-40 °c-70 °C

Relative humidity: 90% (40 °C ± 2 °C)

Altitude: 0-3000 M measurement

2. Environment Monitoring System Product Profile

Environment Monitoring Unit is a network monitoring host designed for integrated network rooms that integrates UPS monitoring and extended power environments. Adopting the popular 19-inch rack-mount design style, supporting 220V AC or 48V DC power supply, supporting more than 12-way switching value, multi-way relay control output and ambient temperature and humidity expansion, with SMS monitoring and control functions, more secure and more reliable. It will be the best choice for modern unmanned duty rooms.

3. Environment Monitoring System Product Feature

• FSU1000 is a hardware acquisition device for the hardware control and service of the cabinet and machine room station. The new design combines the practical needs of the project delivery and project implementation of the outdoor station ETC and the outdoor cabinet, focusing on the solution of the system maintainability, system wiring, debugging, aesthetics and other requirements, suitable for most of the front-end collection of the application environment.

• FSU1000 series power environment monitoring unit is a miniaturized, high reliability and convenient installation power environment monitoring system for Communication Base Station, integrated computer room and outdoor cabinet, it is specially used for power, environment, equipment control and remote monitoring of Communication Base Station,integrated machine room and outdoor machine cabinet.

• The FSU1000 series dynamic environment monitoring unit has the functions of detecting the dry contact signals such as entrance guard, water immersion, smoke,lightning protection, air conditioning failure, infrared, temperature and humidity detection, etc. and built-in city power cut detection and tilt vibration detection functions.

• l FSU1000 series Dynamic Environmental Monitoring Unit built-in DC voltage measurement function, and equipped with 8 Hall Effect Sensor Interface, used to measure DC current, analog measurement voltage, current transmitter.

• l FSU1000 Series Dynamic Environment Monitoring Unit has multi-channel

• l RS485/RS232 signal (up to 16) access function, can Be used for switching power supply, air conditioning, UPS, lithium batteries, smart meters, electronic door locks, voice, video equipment protocol access.

• l FSU1000 series Dynamic Environmental Monitoring Unit with a variety of communication mode selection (RS485/RS232, TCP, UDP, SNMP, NB-IOT, 4g, Wifi, etc.) , easy to network. FSU1000 series dynamic environment monitoring unit supports access to 7-inch configuration display.

3. Appearance and interface specifications

IMU-Interface:

The panels and interfaces for IMU are shown below

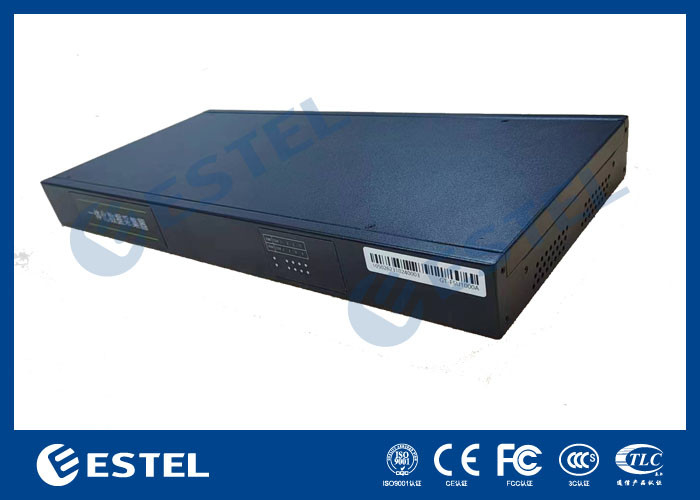

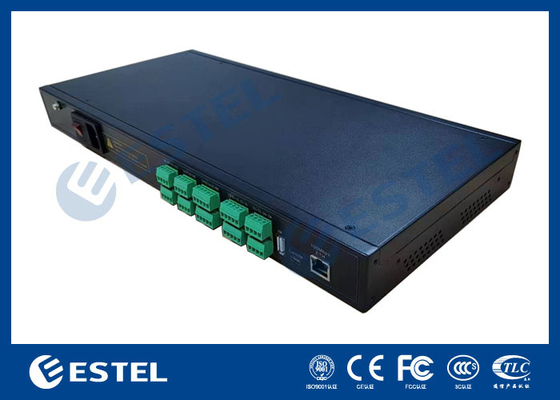

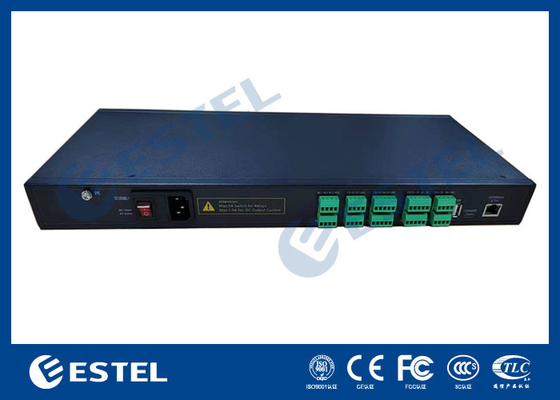

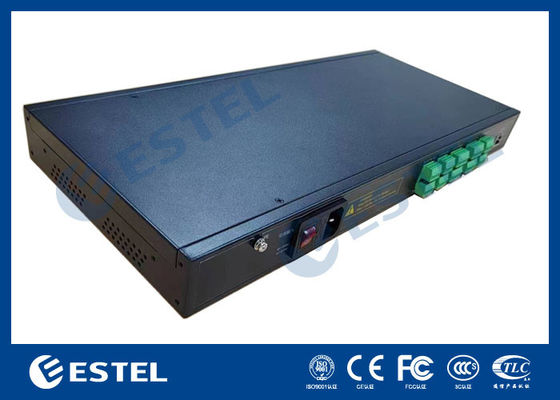

Purture 1-2 Front and Rear Imu appearance

EXTENDING THE DEFINITION OF SERIAL LINE ORDER:

4. Environment Monitoring System Installation Configuration Requirements

A UPS with RS-232 communication interface;

A computer (with administrative rights) with RS-232 communication interface and 10M/100M Ethernet adapter card for initial parameter setting;

complete network environment;

Series of function expansion options for network monitoring, monitoring, and management of UPS power and computer room environments and peripherals (optional).

5. Environment Monitoring System Advantages

1. The front panel is fitted with a 3 inch liquid crystal display for easy and intuitive operation.

2. All serial ports are equipped with indicator lights to visually display the communication status.

3. COMPACT:”1u/19"standard case, easy to install.

4. Equipped with 5 SETS OF SENSORS UP TO 15W external power supply to support a variety of

5. logic linkage

6. Support for transparent transmission and forwarding of protocol data.

7. Support a large number of sensors, equipment access, with analog, switching, RS485/RS232

8. signalaccess.

9. Standard GSP UPLOAD, open protocol.

10. Flexible power supply, AC or DC power supply.

11. Web Pages with full functionality make data presentation simple and straightforward

12. Equipped with Buzzer, alarm status local voice prompt

13. OFFERS UP TO 16485 serial ports (IMU 1016 version

14. Port adaptability is good, at the same time, the monitoring object in common use has a dedicated port
