Product Details:
Payment & Shipping Terms:
|
| Application: | Outdoor Remote Roads, Mountains, Bad Environment | Protection: | IP55 |
|---|---|---|---|
| Material: | Galvanized Steel, Single Wall | Internal Structure: | The Upper Bay Is For UPS And Power Distribution, The Lower Bay Is For Battery |
| Cooling System: | DC48V Fan, 2pcs | Surface Finish: | Anti-corrosion Grey Polyester Outdoor Powder Coating |
| Installation Mode: | Floor Mount | Lock: | Anti-theft Three-point Outdoor Cabinet Lock |
| High Light: | power supply cabinet,outdoor power enclosure |
||

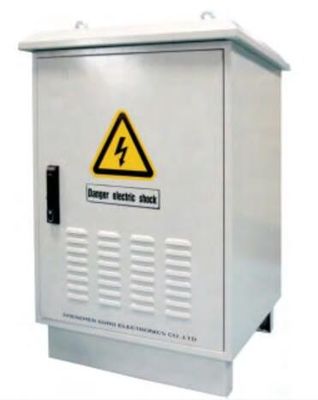

IP55 Outdoor Power Cabinet Pure Sine Wave 2KVA Outdoor UPS System Lead Acid Battery Backup
Summary
● The outdoor UPS cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
Application
This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature(+50℃)/low temperature (-40℃), severe dust, moisture, rain, mist erosion,very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area.
This communication marginal network outdoor UPS is special for wireless communication system of outdoor micro cellular base station and design of a high-performance integrated outdoor online uninterrupted power supply system, has the very high technology advancement and practicability.
Feature
●Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● High-performance cooling solution
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● Perfect air duct design to avoid cold and hot gas mixed flow effectively
● Professional outdoor anti- corrosion powder coating, strong weather resistance
Technics
● The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET8070133-UP |
| Size | External Size W×D×H: 800mm×700mm×1330mm | |
| Component | The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount. | |
| Material | Galvanized steel, single wall, 1.5mm thickness. | |
| Structure |
|
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Outdoor polyester light grey RAL 7035 coating or custom made | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Compressor Air Conditioner | / |
| Heat Exchanger | / | |
| TEC Air Conditioner | / | |
| Fan | DC48V, 2PCS, including temperature ajustable controller | |
| Monitoring | Monitoring Unit | / |
| Smoke Sensor | / | |
| Vibration Sensor | / | |
| Water Sensor | / | |
| Door Sensor | / | |
| Temperature & Humidity Sensor | / | |
| Other | / | |
| Power Distribution Unit | AC Type |
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; AC Output: 10A/1P×4. Including one maintenance socket |
| UPS | 2KVA | |
| Battery | 100Ah,12V, 8PCS | |
| Other | Illumination |
LED light, 48VDC |
2D Drawing
