outdoor communication cabinets,
telecom equipment cabinet

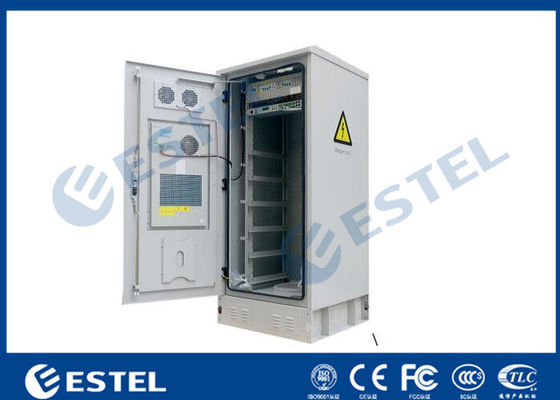

IP55 32U Outdoor Cabinet Air Conditioner Cooling / 19 Inch Rack Mount Double Wall Base Station Cabinet
External Dimension H×W×D 1750×750×750mm;
Internal Dimension H×W×D 1450×650×650mm.
|Equipment Installation Method||19” rack|
|Door||With one front door, and special anti-theft three point lock for outdoor cabinet (support padlock)|
|Material||Galvanized steel, double wall, inner wall is 0.8mm thickness, outer wall is 1.5mm thickness, there is 20mm PEF heat insulation between two walls.|
|Temperature Control||Cooling||AC220V air conditioner and DC48V fans|
|Lighting||LED lamp||48V LED lamps (immovable), with protective circuit breaker|
|Temperature||Temperature||Working Temperature: -40°C ~ +55°C|
|Storage Temperature: -50°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1120 ×(1±5%)W/m2|
|1||Outdoor Telecom Cabinet||1||Set||
(1) External Dimension H×W×D 1750×750×750mm;
Internal Dimension H×W×D
(2) One compartment,including 19” equipment rack.
(3) With one front door, and special anti-theft three point lock for outdoor cabinet (support padlock)
(4) Galvanized steel, double wall, inner wall is 0.8mm thickness, outer wall is 1.5mm thickness, there is 20mm PEF heat insulation between two walls.
Power supply: AC220V, 50HZ
Cooling capacity: 1500W
|3||Auxiliary Direct Ventilation Fan||2||PC||DC48V|
|4||Environment Monitoring System||1||Set||
1× environment monitoring unit,19”, 1U; NEM-500,SNMP communication
1× smoke sensor,
1× water sensor,
1× temperature&humidity sensor,
1× door sensor,
1× tilt&shock sensor.
|5||Power Distribution Unit||
Grade B Lightning Proof
AC Input: 63A/2P ×1;
AC Output: 16A/1P×4;
DC Output: 16A/1P×4.
|6||LED Lamp Switch||1||PC||Used for controlling LED lamp on/off|
The ET7575175-EQ Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, 4G system, access/transmission switching station, emergency communication/transmission, etc.
The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner and fans on front door.
The cabinet door uses embedded structure. And the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.
4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
4.2 The cabinet cooling uses air conditioner and fans.
4.3 Including -48VDC illumination lamp.
4.4 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
4.5 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
4.6 The cabinet includes 19” standard installation rack.
4.7 Material: good quality galvanized steel
4.8 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
4.9 Cabinet load bearing: ≥600kg
4.10 Ingress protection: IP55
4.11 Flame retardance: comply with GB5169.7 test A
4.12 Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
4.13 Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
4.14 Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
5. Components Installation
5.1 PDU and environment monitoring unit are installed on 19” rack.
5.2 Air Conditioner and fans are installed on the door of the cabinet.The air conditioner automatically control the two fans , when the temperature inside the cabinet reaches 35 degrees, the fan will start to work automatically.
6. Theft Proof Design
6.1 Three point lock
(1) Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2) Door hinges use inner hinge mode.inside installation,inside fixing, no outer screws and embedded cabinet door, these design can protect cabinet against the theft and water access. Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
7. Cabinet Picture
