| Housing: | Metal (AL5052, SPCC) | Efficiency: | 90% |
|---|---|---|---|
| Output Rated Current: | 20A | Usage: | Automobile |
| Operating Temperature: | -10°C To 60°C | Install: | Pad Mount |
| Battery Input: | 100A*2 | Warranty: | 2 Years |
| Highlight: | 5U subrack DC power system,4-12kW industrial power supply,ET48200-003 DC power system |
||
4-12kW 5U Subrack Embedded DC Power System in White or Black for Industrial Efficiency ET48200-003
Introduction

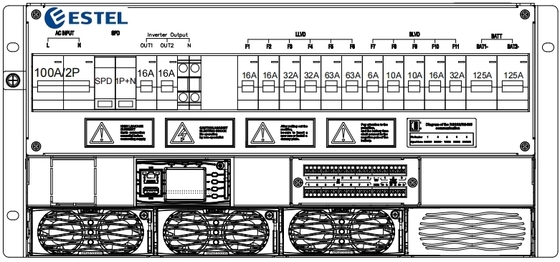

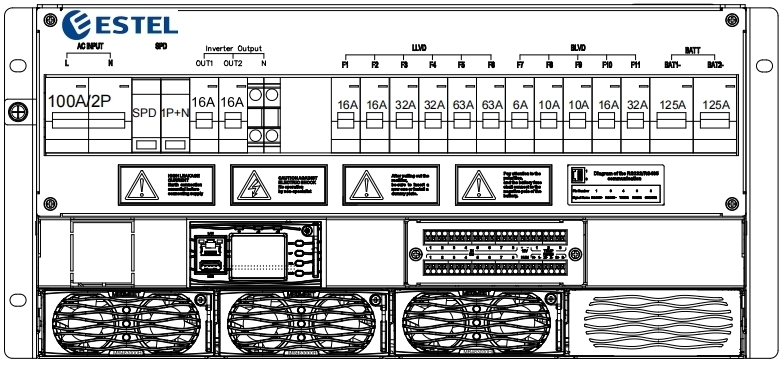

5U Sub-rack power supply, 5U height compact design to meet critical application needs of fiber and microwave transmission, access device, switch. The system's maximum current is 200A, with AC/Battery/Load MCBs. The cables are front accessing with MCB and busbar.
Key Features
Application Scenarios
ET48200-003 Specifications
| Type | 4~12kW 5U Subrack | |
| System | Dimension | 482.0(W)*350.6(D)*5U(H) |
| Weight | ≤20kg (without rectifiers) | |
| Cooling mode | Natural cooling | |
| Installation mode | Installed on 19-inch rack or inside the cabinet | |
| Cabling mode | Top inlet and top outlet | |
| Maintenance mode | Front maintenance, support module grade change | |
| Protection level | IP20 | |
|
AC Distribution |
Input mode | 220VAC single phase |
| Input capacity | 1×100A/2P | |
| Input frequency | 45~65Hz, rated value: 50Hz/60Hz | |
| AC SPD | 20kA/40kA, 8/20μs | |
| Output capacity | 1×16A/1P, 1×10A/1P | |
|
DC Distribution |
Output voltage | -43~-58VDC, rated value: -53.5VDC |
| Maximum capacity | 12kW(4KW*3) | |
| Battery breakers | 2×125A/1P | |
| Load breakers |
LLVD:2×63A/2P, 2×32A/1P, 2×16A/1P BLVD:1×32A/1P, 1×16A/1P, 2×10A/1P, 1×6A/1P |
|
| DC SPD | 10kA/, 8/20μs | |

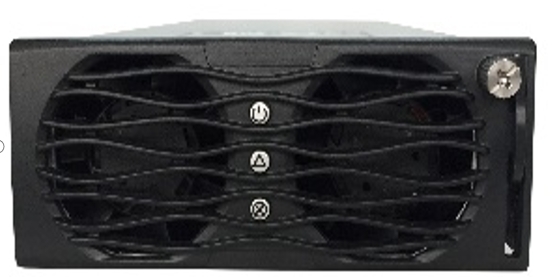

| Rectifier | Input voltage | 85VAC～300VAC, rated 220VAC |
| Efficiency | ＞96.6% | |
| Rated power | 4000W(176~300VAC) | |
| Working temperature | -40℃~+75℃(fully output below 50℃) | |
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |
| Weight | ≤2.1kg | |
| Cooling mode | Forced cooling | |
| Power factor | ≥0.99 @220Vac 20-100% Load | |
|

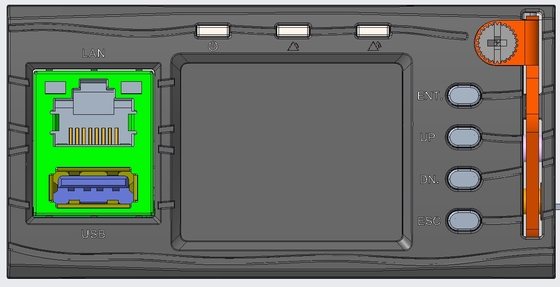

Controller
|
Signal input | 3 AI(2 Battery temp., 1 ambient temp.) ,8 DI ,2 RS485. |
| Alarm output | 8 dry contact | |
| Communication port | LAN,USB, RS485, SNMP | |
| Display mode | LCD | |
| Environment | Operating temperature | -40℃~+70℃ |
| Storage temperature | -40℃~+70℃ | |
| Operating humidity | 5%~95%(non-condensing) | |
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) | |
Q: What is the brand name of this Industrial Power Supply?
A: The brand name is ESTEL Embedded Power System.
Q: What is the model number of this Industrial Power Supply?
A: The model number is ET48200-003.
Q: Where is this Industrial Power Supply manufactured?
A: This product is manufactured in China.
Q: What is the input voltage range of the Industrial Power Supply?
A: The input voltage range is 90V-264V AC.
Q: Does the Industrial Power Supply have overvoltage protection?
A: Yes, this Industrial Power Supply is equipped with overvoltage protection.
