Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment

Certification
China Tianjin Estel Electronic Science and Technology Co.,Ltd certification
China Tianjin Estel Electronic Science and Technology Co.,Ltd certification
Customer Reviews
In the past three years, our cooperation is very cheerful, thanks for your company's technical support and patient service, the end user is very satisfied with the quality of outdoor telecom cabinet with cooling. Best wishes to our future cooperation.

—— Anthony

Timely response, professional skills, rigorous attitude, fast delivery, we are very satisfied, cooperation is very smooth.

—— Manish

From 1 sample to 45 sets, 76 sets, 200sets, we gradually established a strong trust. The cabinet quality is good and the design is reasonable.

—— Parmar

The air conditioner have been running for one and a half years. Cooling effective is good. Good after-sale service, and patiently instruct to use and solve technical problems. Environmental monitoring system is also running well, and remote monitoring the cabinet is very convenient.

—— Luis Alberto

The boxes are great we happy with it. We will order 30 sets each month in future. Cooperate Happily.

—— Andrej Sliachin

Always can provide us good suggestion and solution, we are very grateful.

—— Nelson

I'm Online Chat Now

Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment

Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment
Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment

Large Image :  Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: DDTE066/02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 8,600 sets per month
Detailed Product Description
Model: DDTE066/02 Installation: Pole Mounted/wall Mounted
Illumination: DC48V LED Lamp Protection Leve: IP55
Color: Grey (support Custom Made) Material: Galvanized Steel
High Light:

wall mounted enclosure

,

outdoor network cabinet



Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment



Quick Details:



Place of Origin: Shenzhen, China (Mainland) External Dimension: H×W×D 1100×600×650mm
Brand Name: ESTEL Structure: double wall, with insulation, sandwich structure.
Model: DDTE066/02 Cabinet Layout: one compartment, for installing batteries
Product Name: Pole Mount Enclosure/ Outdoor Wall Mounted Cabinet Protection Level: IP55
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Cabinet Lock: anti-theft three point lock
Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp
Heat Insulation: PEF Grounding Protection: copper bar
Color: grey (support custom made) Cooling: DC48V Fans
Coating: anti-corrosion outdoor powder coating Installation: pole mounted/wall mounted



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 8,600 sets per month
Delivery Time: 10-15 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension: H×W×D 1100×600×650mm
Layout 1 compartment
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Assembled or welded
Ingress Protection IP55
Temperature Control Cooling DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: H×W×D 1100×600×650mm;

(2) Battery compartment;

(3) With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; with 20mm PEF heat insulation between two walls.

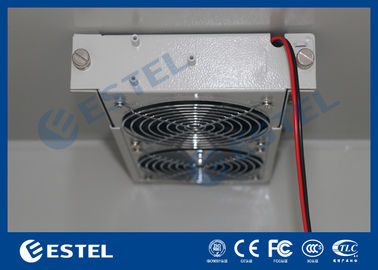

2 Auxiliary Direct Ventilation Fans 4 PC 12038 DC48V
3 Door Sensor 2 PC One for controlling LED lamp, the other for open door alarm
4 LED Lamp 1 PC DC48V
5 Package 1 Set Wooden Case



2. Application



The DDTE066/02 Pole / Wall Mounted Outdoor Battery Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3. Features



  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • The battery compartment cooling: fans (Other cooling option: heat exchanger or air conditioner.). MTBF≥50000h

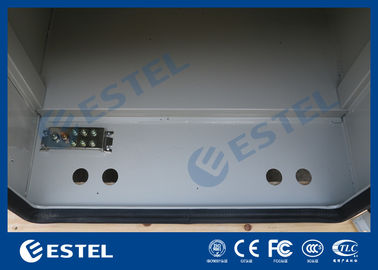

  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
  • All the cables used in the cabinet are made from flame retardant materials.



4. Packing and Shipping



Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment 0



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.



Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment 1





5. Our Partner

Waterproof Anti-theft Outdoor Wall Mounted Cabinet For Installing Battery / Equipment 2
