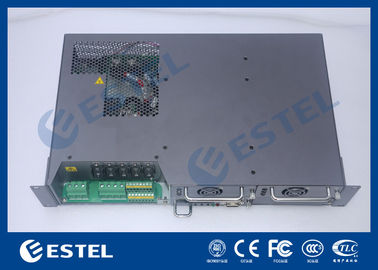

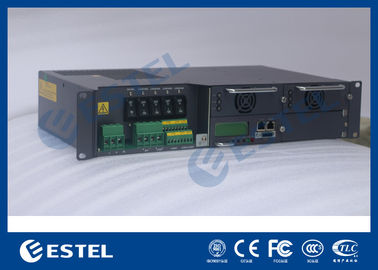

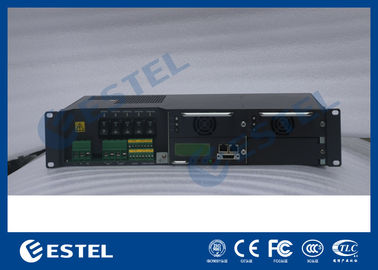

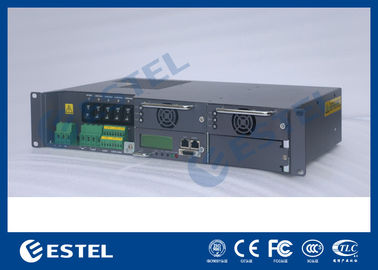

Outdoor 19 Rack Enclosure Rectifier System , Base Station Telecom Power System

Outdoor 19 Rack Enclosure Rectifier System , Base Station Telecom Power System
Outdoor 19 Rack Enclosure Rectifier System , Base Station Telecom Power System Outdoor 19 Rack Enclosure Rectifier System , Base Station Telecom Power System Outdoor 19 Rack Enclosure Rectifier System , Base Station Telecom Power System Outdoor 19 Rack Enclosure Rectifier System , Base Station Telecom Power System

Large Image :  Outdoor 19 Rack Enclosure Rectifier System , Base Station Telecom Power System

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: GPE4890B

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton/wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, , T/T, Western Union
Supply Ability: 10,000 sets per month
Detailed Product Description
Input Voltage: AC220V Power Factor: 0.98
Input Frequency: 45~65Hz Application: Outdoor Telecom Cabinet
Installation: 19" Rack Output Voltage: DC48V
High Light:

telecom rectifier module

,

dc rectifier system



Outdoor 19 Rack Enclosure Rectifier System , Base Station Telecom Power System



Quick Details:



Place of Origin: Shenzhen, China (Mainland) Input Voltage: AC220V
Brand Name: ESTEL Output Voltage: DC48V
Model Number: GPE4890B Output Current: 90A
Product Name: Telecom Rectifier System Input Frequency 45~65Hz
Certification: ISO9001, CE, 3C, FCC, TLC Input Current: 29.7A
Installation Mode: cabinet 19” rack Power Factor: 0.98
Application: outdoor telecom cabinet

      Components:

      3×30A rectifier module,

      1×monitoring module,

      power distribution



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C, D/A, D/P, , T/T, Western Union
Supply Ability: 10,000 sets per month
Delivery Time: 7-10 working days
Packaging Details: carton/wooden case



1. Application



(1) Small scale program controlled exchanger

(2) Access network

(3) Transmission equipment

(4) Mobile communication

(5) Satellite communication ground station

(6) Microwave communication



2. Features



(1) Adoption of active power factor compensation technology with factor >0.98

(2) Wide operating range of AC input voltage: 90~280Vac

(3) Operating temperature range:-25°C~+55°C

(4) Zero current/voltage switching tech with high efficiency ≥90%

(5) Perfect battery management, charge&discharge management, battery temperature compensation, low voltage protection, battery capacity test

(6) Hot-swappable

(7) Input over/under voltage protection

(8) Output over voltage protection

(9) Output over current protection

(10) Output short circuit protection

(11) Auto current sharing, parallel operation

(12) Embedded mounted



3. GPE4890B System Configuration



GPE4890B consists of distribution unit, rectifier module (up to 3 sets) and 1 monitoring module. The configuration is optional, as following table:



Configuration Rectifier Module Monitoring Module Power Distribution
Optional 1 GPR4830A GPM48D (Without Ethernet Port)

GPE4890B:

DC Output: 40A×4 (load);

Battery Output: 70A×1 (battery)

Optional 2 GPR4810A
Optional 3 GPR4815A
Optional 4 GPR4820A



4. GPE4890B Operating Principle



Under normal conditions, every parameter of rectifier modules and distribution unit are all under control of the monitoring module, operating according to the pre-set parameter or user’s commands. If AC mains fault, the system will be powered by the battery. With the battery discharge, the terminal voltage of the battery starts to descend. When the battery voltage is under 42V±0.5V, the monitoring module reports battery under voltage alarm signal and cuts off the load output, then the power system stops working. When the external AC mains recovers, the system will resume to the normal work state. (All above monitoring data are system default values that users can reset).



5. GPE4890B System Properties



Input
Parameter Min. Typical Max. Unit Remark
Input voltage range 90 220 280 Vac
Input frequency 45 50 65 Hz
Input current     29.7 A
Power factor 0.98



Output
Parameter Min. Typical Max. Unit Remark
Output voltage range -42 -53.5 -58 Vdc
Output current range 0   90 A 176~280VAC
0   45 A 90~175VAC
Ripple (Vp-p)     200 mv At rated input/output, apply 0.1uF film capacitor and 10uF HF electrolyte capacitor, oscilloscope band width of 20MHz.
Output efficiency 90 92   % 220Vac input
83 85   % 110Vac input
Regulation     ±1 %
Load regulation     ±1 %
Line regulation     ±1 %



Insulation rating
Parameter Min Remark
Input - output 2121Vdc/10mA//1min
Input-chassis 2121Vdc/10mA//1min
Output - chassis 750Vdc/10mA//1min
Insulation resistance At normal atmospheric pressure, relative humidity: 90%, testing voltage: 500vdc, insulation of input-output, input-ground, output-ground shall not be less than 10MΩ



Ambient requirements
Parameters Min. Typical Max. Unit Remark
Operating temp -25   +55 °C ≥ 55°C, output with derating power
Storage tempStorage temperature -40   +80 °C
Humidity 10   90 % Relative humidity, no condensing
Atmospheric pressure 70   106 KPa
Altitude 0   3000 m
Cooling method Forced cooling with fan



Mechanical specifications
Dimensions (Overall) 482.6mm×255mm×86.1mm
Weight(kg) (Overall)

≤11kg (Inclusive of module)

≤5.175kg (Frame + Distribution, exclusive of module)



Outdoor 19 Rack Enclosure Rectifier System , Base Station Telecom Power System 0



6. Electric Connection



Chassis connects with external electric through system interface board. As shown in figure below:



Outdoor 19 Rack Enclosure Rectifier System , Base Station Telecom Power System 1



Connector Instruction:

  • L,N,PE is power supply three-core AC input port;
  • LOAD(+) is load positive, LOAD(-) is load negative;
  • BAT(+), BAT(-) are battery port



7. Functions of Monitoring Module



Item Remark
Remote monitoring of the host The host can conduct enquiries, settings and control upon the monitoring and realize the remote message, remote sense and remote control.
Rectifier management by monitoring module To send controlling orders or to get data from the rectifier module via RS485 communication.
Battery management To manage low voltage, power down, equalizing/float charge, temperature compensation of the battery.
Output management by monitoring module To inspect and control the system
LED indicator Signal indication
6 way dry contact output Dry contact setting
COM port signal definition
LCD Display Set and revise menu
For details, please refer to specifications of “GPM48DI”.



8. Rectifier Module Property



Item Unit Min. Typical Max. Remarks
AC input voltage Vac 90 220 280
AC input voltage frequency Hz 45 50 65 Rated load
Input power factor   0.98     Rated voltage/ rated load
Output voltage range Vdc -42 -54 -58
Output current A 0 30   176~290V ac Input
Output voltage regulation       ±1%
Ripple (Vp-p) mV     200 With 0.1uF filmy capacitor and 10uF high frequency electrolyte capacitor, oscilloscope band width of 20MHz.
Output power W 0 1600   176-280V Input
W 0 800   90-175V Input
Output efficiency % 91     220V AC Input
% 83     110V AC Input
Input over-voltage protection Vac 285 305   Tested with 15A, auto recoverable
Input over-voltage recovery set point Vac 280     Hysteresis not less than 5V.
Input under-voltage protection Vac     85 Tested with 4A, auto recoverable
Input under-voltage recovery set point Vac     90 Hysteresis not less than 5V.
Output over-voltage protection set point V -58.5 -59 -61.5 Lock up
Output current limiting A 32 33 34 Auto recoverable
Short circuit protection A Long-term short circuit endurable; Hiccup when short circuit detected; Auto recoverable
Thermal protection   Auto recoverable under ambient temperature of 65°C.
For details, please refer to specifications of “GPR4830A1”.
