Side Mounted Outside Cabinet Intelligent Ventilation System IVS With Four Fans

China Side Mounted Outside Cabinet Intelligent Ventilation System IVS With Four Fans supplier
Side Mounted Outside Cabinet Intelligent Ventilation System IVS With Four Fans supplier Side Mounted Outside Cabinet Intelligent Ventilation System IVS With Four Fans supplier Side Mounted Outside Cabinet Intelligent Ventilation System IVS With Four Fans supplier Side Mounted Outside Cabinet Intelligent Ventilation System IVS With Four Fans supplier

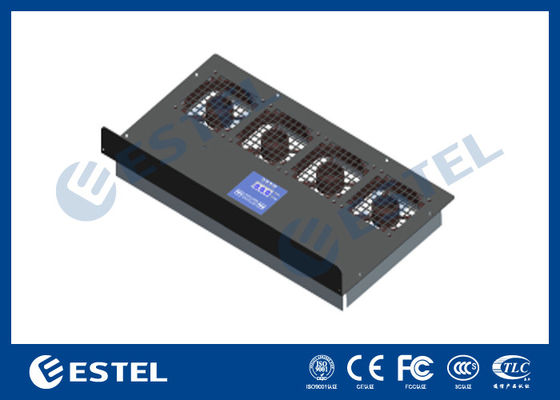

Large Image :  Side Mounted Outside Cabinet Intelligent Ventilation System IVS With Four Fans

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: TC06-560DCVS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 16,000 sets per month
Contact Now
Detailed Product Description
Installation: Side Mounted Model Number: TC06-560DCVS
Current: 1A Power Supply: DC48V
Volume: 560CFM Product Name: Intelligent Ventilation System



Side Mounted Outside Cabinet Intelligent Ventilation System With Four Fans



Quick Details:



Place of Origin: Guangdong China (Mainland) Fan On :Air Conditioner OFF
Brand Name: ESTEL Intelligent Ventilation System: Multiple fans power-on and start working
Model Number: TC06-560DCVS Current: 1A
Product Name: intelligent ventilation system Power Supply: DC48V
Certification:ISO9001, CE, 3C, FCC, TLC Air Volume: 560CFM
Application: outdoor telecom cabinet Installation Mode: Side Mounted



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 16,000 sets per month
Delivery Time: 7-10 working days after received your payment
Packaging Details:power-on Auto-Start off packed in carton firstly, and then reinforced with wooden case for outer packing



1. Specifications

System Working Principle



  Mains Normal Air Conditioner Failure Mains Failure
  Fan On Air Conditioner On Fan On Fan On After LVLD
Temperature Inside Cabinet <35ºC 35ºC - 40ºC >40ºC <35ºC ≥35ºC <35ºC ≥35ºC
Air Conditioner Off Off Power-on Auto-Start Off Off Off Off Off

Intelligent

Ventilation System

Single fan power-on and start working Multiple fans power-on and start working Off Single fan power-on and start working Multiple fans power-on and start working Single fan power-on and start working Multiple fans power-on and start working Off





2. Introduction of Intelligent Ventilation System

2.1 Working Principle



The system is an intelligent ventilation system providing air circulation, air filtration and cooling control for telecom room. The system itself doesn’t include any cooling element. It directly draws cold air into the telecom room from outside and exhaust hot air from telecom room to the outside to realize natural cooling. The system can be used standalone or integrated with air conditioner cooling device.



2.2 Technical Parameters and Application



  • Power Supply: DC48V;
  • Current: 1A;
  • Air Volume: 560CFM;
  • Noise: ≤55dB;
  • Application: applicable for various types of cabinets.



3. Function and Application



ET726 intelligent ventilation controller is a universal intelligent controller, controlling with highly integrated STC SCM. The controller, with the features of advanced performance, easy installation and setting, are widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.



4. Technical Parameter



  • LCD display measured temperature and set temperature;
  • Temperature measurement accuracy: 0.1 °C; display accuracy: 0.1 °C;
  • Intelligently select cooling mode or heating mode;
  • Direct ventilation function with protected mode;
  • Power supply: DC48V;
  • Power consumption:≤5W;
  • Working environment: -30°C~70°C; <90%RH;
  • Installation method: guide rail, hanging;
  • Dimension(L×W×H):150×190×45mm



5. Controller Instruction

5.1 Function and Application



ET726 intelligent ventilation controller is a universal intelligent controller, controlling with highly integrated STC SCM. The controller, with the features of advanced performance, easy installation and setting, are widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.



5.2 Technical Parameter



  • LCD display measured temperature and set temperature;
  • Temperature measurement accuracy: 0.1 °C; display accuracy: 0.1 °C;
  • Intelligently select cooling mode or heating mode;
  • Direct ventilation function with protected mode;
  • Power supply: DC48V;
  • Power consumption:≤5W;
  • Working environment: -30°C~70°C; <90%RH;
  • Installation method: guide rail, hanging;
  • Dimension(L*W*H):150mm×190mm×45mm



5.3 Operating Instruction



All the operations can be realized with four buttons. The following is the control board diagram:



Side Mounted Outside Cabinet Intelligent Ventilation System IVS With Four Fans



6. Wiring Diagram



Side Mounted Outside Cabinet Intelligent Ventilation System IVS With Four Fans



7. Packing and Shipping



Side Mounted Outside Cabinet Intelligent Ventilation System IVS With Four Fans



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
