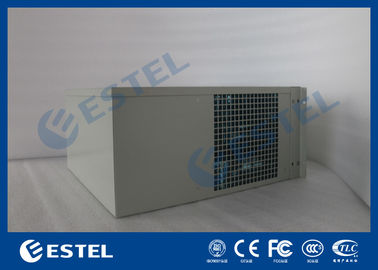

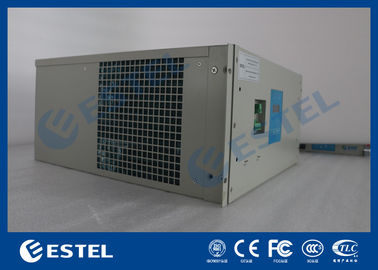

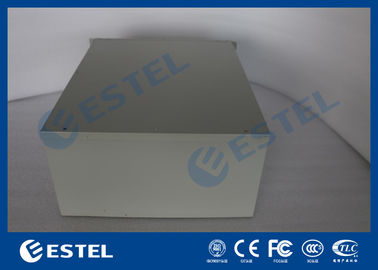

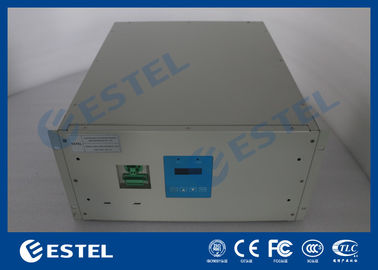

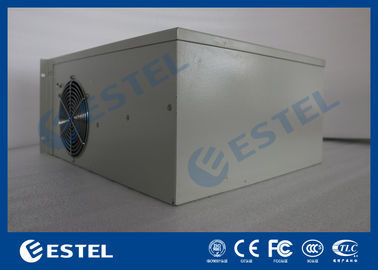

Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption

Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption
Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption

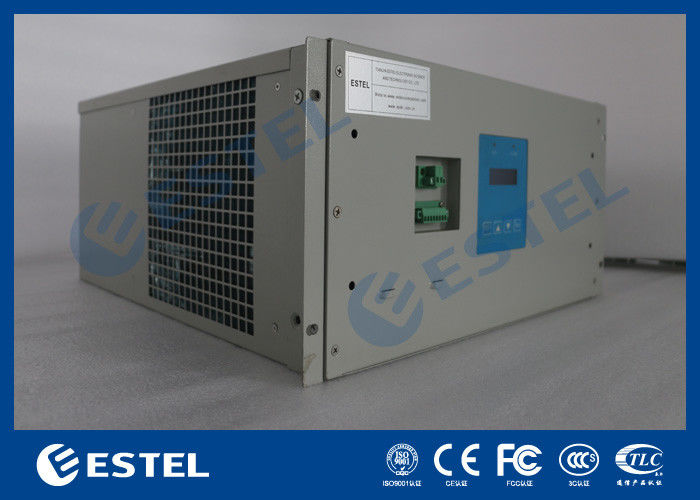

Large Image :  Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: HE06-65SEH/T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton + foam + wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 12,000 sets per month
Detailed Product Description
Cooling Method: Heat Pipe, Passive Cooling Installation Mode: Top Mounted
Protection Level: IP55 Cover Material: Galvanized Steel
Rated Input Power: 99W Rated Input Current: 2.05A
High Light:

cabinet heat exchanger

,

electric heat exchanger



Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption



Quick Details:



Place of Origin: Shenzhen, China (Mainland) Rated Heat Exchange Capacity: 65W/K
Brand Name: ESTEL Rated Heating Capacity:300/500W (optional)
Model: HE06-65SEH/T Input Voltage: DC48V
Product Name: Heat Pipe Heat Exchanger Rated Input Current: 2.05A
Certification: ISO9001, CE, 3C, FCC, TLC Rated Input Power: 99W
Cover Material: galvanized steel Working Temperature: -20°C ~ +55°C
Protection Level: IP55 Noise: 55dB
Installation Mode: top mounted Dimension H×W×D: 180×482.6×500 mm
Support OEM Cooling Method: heat pipe, passive cooling



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 12,000 sets per month
Delivery Time: 7-10 working days
Packaging Details: carton + foam + wooden case



1. Technical Parameters



Model HE06-65SEH/T
Performance Parameters
Rated Voltage (V) DC48V
Rated Current (A) 2.05
Heat Exchange Capacity (W) 650
Heater Power (W) 300
Rated Power (W) 99
Circulation Air Volume (m3/h) 450
Noise (dB(A)) 55
Refrigerant Mixed Liquid
Working Temperature -20°C ~ 55°C
Mechanical Parameters
Installation Mode Top Installed
Height (mm) 180
Width (mm) 482.6
Depth (mm) 500
Controller Parameters
Working Voltage (V) DC36~72
Working Temperature and Humidity -20°C ~ +80°C, <90%RH
Temperature Control Accuracy (°C) 0.1
Power Consumption (W) 5
Communication Mode Dry contact,RS485, RS232, GPRS



2. Description



The HE06-65SEH/T Mixed Working Fluid Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information.



3. Application



The cabinet heat exchanger is applicable for outdoor communication cabinet of the marginal network, access network, and 4G network, outdoor power cabinet, outdoor control cabinet, telecom wireless BS, Distributed BS, and mini computer rooms.



4. Features



  • Strong adaptability
  • High intelligence
  • High precision
  • High reliability
  • The heat exchange capacity can be set according to need
  • Low noise
  • Low energy consumption
  • With 4 way switching value detection
  • With 1 way room air conditioner control
  • Wide input voltage range: DC36 - 65V
  • With dry contact alarm output
  • Dust proof and water proof



5. Electrical Wiring Diagram



Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption 0

Wiring Ports:

0V -48V: power supply input (voltage input: DC36 - 65V)

A+ B- SGND: RS485 communication interface

AL1 AL2: general alarm output

F+ F- : auxiliary direct ventilation control output (output voltage: DC48V)



6. System Control Wiring Diagram



Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption 1

7. Packing and Shipping



Outdoor Equipment Enclosure Custom Heat Exchanger Low Power Consumption 2



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
