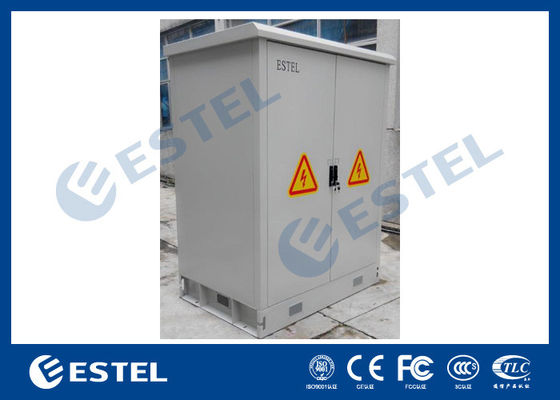

Model Number: ET151020 Cabinet Bottom: Exhaust Port
External Size: H×W×D 2000×1500×1000mm Door: With Hinge
Applicaiton: Outdoor Telecom Base Station Protection: Dustproof, Sunproof And Rainproof
High Light:

street cabinets telecoms

,

outdoor data cabinet

,

Dustproof Base Station Cabinet



Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption



Quick Details:



Place of Origin: Shenzhen, China (Mainland) External Size H×W×D 2000×1500×1000mm

Brand Name: ESTEL

Structure: single wall

Model Number: ET151020

Cabinet Layout: two compartments

Product Name: Outdoor Integrated Telecom Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: optional

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU, environment monitoring system



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 6,000 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension External Size H×W×D 2000×1500×1000mm
Layout Two compartments
Equipment Installation Method 19” standard rack
Door With two front doors, totally two doors; and anti-theft three point lock for outdoor cabinet (support padlock)
Material

1.Galvanized steel;

2 Single wall, thickness is 1.5mm

Structure Assembled
Ingress Protection IP55
Temperature Control Cooling Optional
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2



Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Size H×W×D 2000×1500×1000mm (2) 2 compartments: the left part and the right part are equipment compartments

(3) With two front doors, and special lock for outdoor cabinet (support padlock) ;

(4) Material: galvanized steel; 1.5mm thickness

2 Auxiliary Direct Ventilation Fans 4 PC 12038 DC48V
3 Environment Monitoring Unit 1 Set 2U, Model: SM2200
4 Water Sensor 1 PC
5 Smoke Sensor 1 PC
6 Temperature and Humidity Sensor 2 PC
7 Door Sensor 4 PC Two for controlling LED lamp, the other two for open door alarm
8 LED Lamp 2 PC DC48V
9 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4

10 Package 1 Set Wooden Case



2. Application



The Outdoor Telecom Cabinet is widely used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3. Features



3.1 The cabinet is dustproof, sunproof and rainproof, which is suitable for outdoor environment.

3.2 -48V LED lamps is installed inside the cabinet.

3.3 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.

3.4 All the cables used in the cabinet are made from flame retardant materials.

3.5 Material: hot dip galvanized steel

3.6 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

3.7 Cabinet load bearing: ≥600kg

3.8 Ingress Protection: IP55

3.9 Flame retardance: comply with GB5169.7 test A

3.10 Insulation resistance: the insulation resistance between grounding devices and cabinet

body parts is not lower than 2X104M/500V(DC).

3.11 Withstand voltage: the withstand voltage between grounding devices and cabinet body

parts is not lower than 3000V(DC)/1min.

3.12 Mechanical strength: each surface can bear upright pressure>980N; after the door is open, its outer end can bear upright pressure >200N.



4. Diagram

Cabinet Size : 1500mm×1000mm×2000mm (W×D×H)





Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 0



5. Description

5.1 Structure



The cabinet is made of 1.5mm hot dip galvanized steel, and consists of outer cabinet body and inner accessories. The cabinet includes two equipment compartments. It is easy for installation and with perfect sealing performance.



Door and Door Lock: The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock. There’s open door alarm sensor, which works together with the environment monitoring unit.



5.2 Components Installation



5.2.1 LED lamp, fans, smoke sensor and door sensor are installed at the top of the cabinet.



Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 1

Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 2



Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 3



5.2.2 Environment monitoring unit and PDU are installed on 19” rack.



Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 4



5.2.3 Water sensor is installed at the bottom of the cabinet.



Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 5



5.2.4 Two temperature and humidity sensors are installed at the side inside the cabinet.



Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 6



5.2.5 fan’s temperature switch on the top



Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 7

5.2.6 Cable Inlet

Feeder cable and other external cables all use bottom wiring method.

Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 8

5.2.7 Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 9

5.2.8 Door lock theft proof design



  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

 Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 10

  • Three point lock

Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 11

Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 12



5.2.9 Connection and Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.



Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 13



5.3.0 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



6. Packing and Shipping



Dustproof Base Station Outdoor Communication Cabinets Low Power Consumption 14
