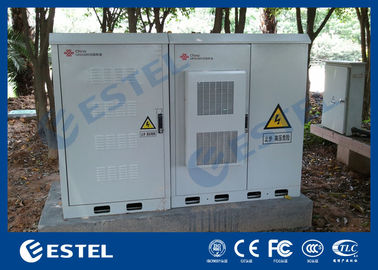

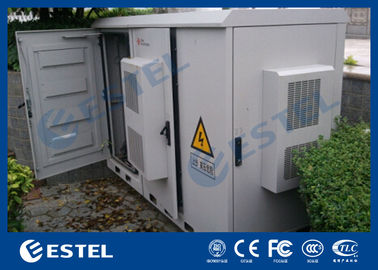

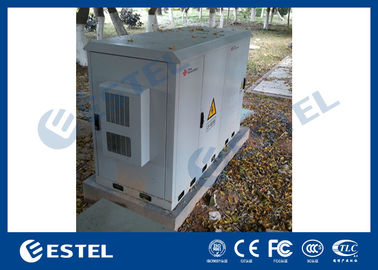

Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System

Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System
Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System

Large Image :  Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: DDTE024
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Detailed Product Description
Material: Galvanized Steel Heat Insulation: PEF
Coating: Anti-corrosion Outdoor Powder Coating Structure: Assembled
Environment Monitoring Unit: 1U Application: Wireless Communication Base Station
High Light:

BTS outdoor cabinet

,

outdoor data cabinet

,

Thermal Insulation Base Station Cabinet



Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System



Quick Details:



Place of Origin: Shenzhen, China (Mainland) Size: custom made

Brand Name: ESTEL

Structure: double wall, with insulation, sandwich structure

Model Number: DDTE024

Cabinet Layout: three compartments

Product Name: Outdoor Integrated Telecom Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: optional

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU, rectifier system, environment monitoring system



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension Custom made
Layout Three compartment
Equipment Installation Method 19” standard rack
Door With two front doors, two back doors and one side door, totally five doors; with anti-theft three point lock for outdoor cabinet (support padlock)
Material

1.Galvanized steel;

2.Double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

Structure Assembled
Ingress Protection IP55
Temperature Control Cooling Air conditioner and direct ventilation system
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2



(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) Size: custom made

(2) Three compartments

(3) With two front doors, two back doors and one side door, totally five doors; with anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 20mm heat insulation between two walls.

2 Air Conditioner 2 Set

(1)Cooling capacity: 1KW,

Power supply: AC220V,50HZ;

Model:TC06-100JFH/01

(2)Cooling capacity: 1.5KW,

Power supply: AC220V,50HZ;

Model:TC06-150JFH/01

3 Direct Ventilation System 4 PC DC48V
4 Environment Monitoring Unit 1 Set 1U, Model: SM2400
5 Water Sensor 2 PC
6 Smoke Sensor 2 PC
7 Door Sensor 6 PC Three for controlling LED lamp, the other three for open door alarm
8 Temperature and Humidity Sensor 2 PC
9 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4.

Height: 4U

10 Telecom Power System (Rectifier System) 1 Set Optional
11 Package 1 Set Wooden Case



2. Description



The cabinet, made of galvanized steel, is divided into equipment compartment, battery compartment, cable distribution compartment. The equipment compartment is separated from the battery compartment for heat insulation of the equipment space. The battery compartment is used for installing batteries. The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet also has roofs which is sun proof and water proof. There’re ventilations for releasing harmful gas generated by the batteries.

The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock. There’s open door alarm sensor, which works together with the environment monitoring unit.



2.1 Wire Routing Design



Feeder cable and other external cables all use bottom wiring method.





Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System 0



2.2 Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.



Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System 1





2.3 Door lock theft proof design



(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.



Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System 2



(2) Three point lock



Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System 3

2.4 Connection and Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.

Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System 4



2.5 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



3. Applications



The DDTE024 Outdoor Integrated Telecom Cabinet is a three compartment cabinet with air conditioner or heat exchanger. The three compartments can be battery compartment, equipment compartment, cable distribution compartment. The structure can be custom made. It is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



4. Features



  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment. The protection level is IP55.
  • Three cooling options for the cabinet: fans, heat exchanger or air conditioner.
  • -48V lamp is installed inside the cabinet.
  • The cabinet is installed with Environment Monitoring Unit, door alarm, temperature and humidity sensor, smoke sensor, water sensor etc., which can work together to monitor the inside environment of the cabinet.
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
  • All the cables used in the cabinet are made from flame retardant materials.
  • Cabinet size can be custom made.



5. Packing and Shipping

Thermal Insulation Base Station Cabinet With Two Air Condtiioner / Direct Ventilation System 5

6. Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
