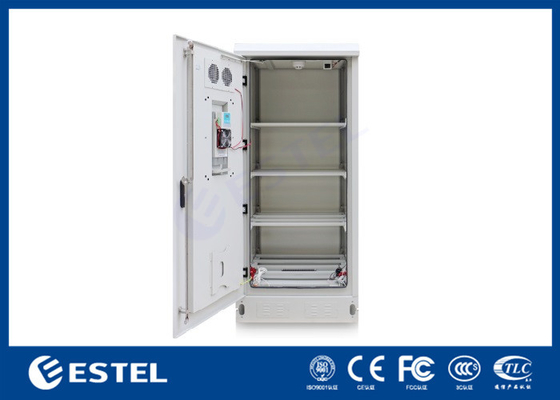

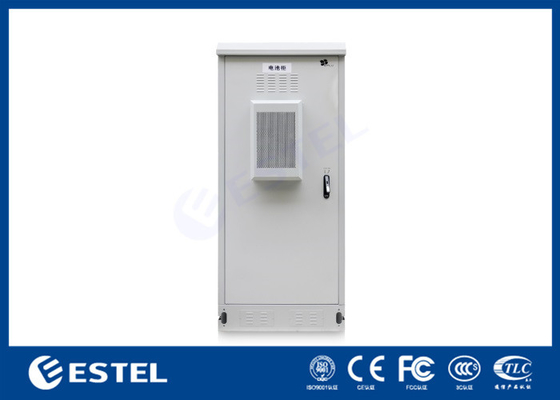

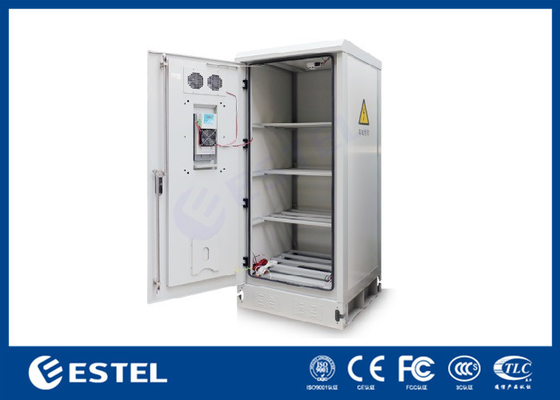

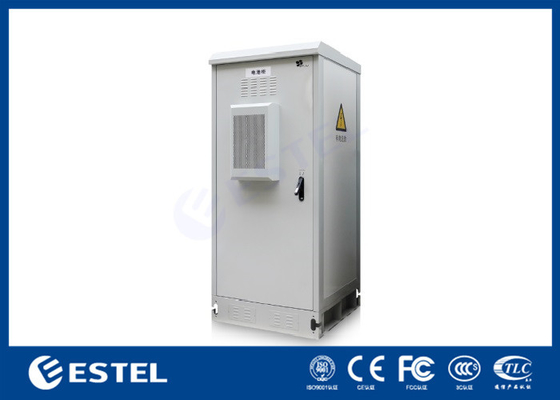

Four Shelf Outdoor Battery Cabinet With Cooling

Four Shelf Outdoor Battery Cabinet With Cooling
Four Shelf Outdoor Battery Cabinet With Cooling Four Shelf Outdoor Battery Cabinet With Cooling Four Shelf Outdoor Battery Cabinet With Cooling Four Shelf Outdoor Battery Cabinet With Cooling

Large Image :  Four Shelf Outdoor Battery Cabinet With Cooling

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET9090210-BA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Detailed Product Description
Material: Galvanized Steel Cabinet Lock: Anti-theft Three Point Lock
Protection Level: IP55 External Size: H×W×D 2100×900×900mm
Internal Size: H×W×D 1800×800×800mm Cooling: DC48V Peltier Air Conditioner And DC48V Fans
Coating: Anti-corrosion Outdoor Powder Coating Cabinet Layout: One Compartment, For Installing Batteries
High Light:

outdoor battery enclosure

,

telecom outdoor cabinet



Four Stories Outdoor Battery Cabinet , Outdoor Rack Cabinet With Air Conditioner



 Quick Details:



Place of Origin: Shenzhen, China (Mainland)

External Dimension: H×W×D 2100×900×900mm

Internal Dimension: H×W×D 1800×800×800mm

Brand Name: ESTEL Structure: double wall, with insulation, sandwich structure
Model Number: ET9090210-BA Cabinet Layout: one compartment, for installing batteries
Product Name: Outdoor Battery Cabinet Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Protection Level: IP55
Application: outdoor telecom base station Cable Inlet: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp
Heat Insulation: PEF Grounding Protection: copper bar
Color: grey (support custom made) Cooling: DC48V peltier air Conditioner and DC48V fans
Coating: anti-corrosion outdoor powder coating Other Cooling Options: heat exchanger



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Delivery Time: 10-15 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Dimension: H×W×D 2100×900×900mm

Internal Dimension: H×W×D 1800×800×800mm

Layout 1 compartment
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF
Ingress Protection IP55
Temperature Control Cooling Dc48V peltier air conditioner and DC48V fans
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Battery Cabinet 1 Set

(1)External Dimension: H×W×D 2100×900×900mm

Internal Dimension: H×W×D 1800×800×800mm

(2)One compartment: battery compartment

(3)With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) (4)Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; with 20mm PEF heat insulation between two walls.

2 Peltier Air Conditioner 1 Set

Cooling capacity: 200W,

Power supply: DC48V;

Model:TC06-20TEH/01

3 Auxiliary Direct Ventilation Fans 2 PC 12038 DC48V
4 Water Sensor 1 PC
5 Smoke Sensor 1 PC
6 Temperature and Humidity Sensor 1 PC
7 Door Sensor 2 PC One for controlling LED lamp, the other for open door alarm
8 LED Lamp 1 PC DC48V
9 Package 1 Set Wooden Case



2. Description

Dimension Diagram



Four Shelf Outdoor Battery Cabinet With Cooling 0



2.1 Cabinet Material



The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.



2.2 Cabinet Structure



The cabinet includes battery shelf for placing batteries. The cabinet includes one peltier air conditioner and fans, installed on front door.



2.3 Cabinet Door and Lock



The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.



2.3.1 Door lock theft proof design



  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

 Four Shelf Outdoor Battery Cabinet With Cooling 1

  • Three point lock



Four Shelf Outdoor Battery Cabinet With Cooling 2



2.4 Cable Inlet

Feeder cable and other external cables all use bottom wiring method.



Four Shelf Outdoor Battery Cabinet With Cooling 3

2.5 Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.



Four Shelf Outdoor Battery Cabinet With Cooling 4



2.6 Connection and Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.



Four Shelf Outdoor Battery Cabinet With Cooling 5



2.7 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



2.8 Diagram



Four Shelf Outdoor Battery Cabinet With Cooling 6



2.9 Door sensor, smoke senser and LED lamp install on the top.



Four Shelf Outdoor Battery Cabinet With Cooling 7





3. Feature

  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • Cabinet cooling: fans and air conditioner. (Other cooling option: heat exchanger). MTBF≥50000h
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
  • All the cables used in the cabinet are made from flame retardant materials.



4. Applications



The ET9090210-BA Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



5. Packing and Shipping



Four Shelf Outdoor Battery Cabinet With Cooling 8



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.



Four Shelf Outdoor Battery Cabinet With Cooling 9
