| Model Number: | DDTE082 | Application: | Outdoor Telecom Base Station |
|---|---|---|---|
| Proof: | Dustproof | External Dimension: | H×W×D 2195×900×900mm |
| Material: | Galvanized Steel | Coating: | Anti-corrosion Outdoor Powder Coating |
| One Compartment: | Equipment Compartment | ||
| High Light: | telecom equipment cabinet,outdoor telecom enclosure,Waterproof Outdoor Telecom Cabinets |
||

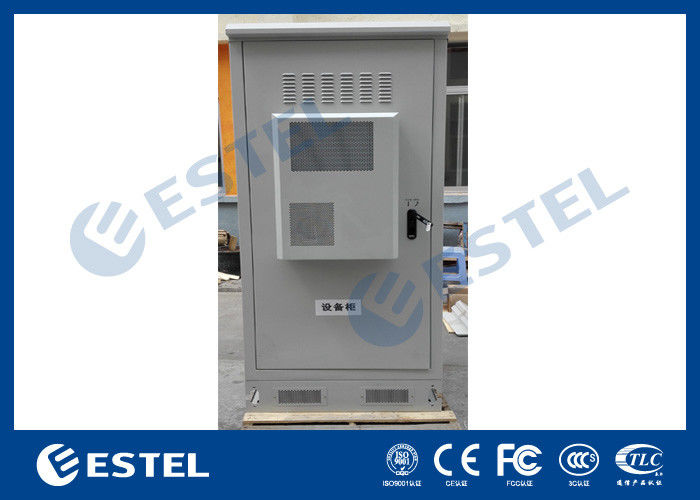

Waterproof Outdoor Telecom Cabinets , Outdoor Equipment Cabinet With Air Conditioner
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Size H×W×D 2195×900×900mm |
|
Brand Name: ESTEL |
Structure: sandwich structure, double wall, with insulation |
|
Model Number: DDTE082 |
Cabinet Layout: one compartment, for installing 19” equipment |
|
Product Name: Outdoor Telecom Equipment Cabinet |
Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 |
Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized steel (support custom made) | Illumination: DC48V LED lamp |
|
Heat Insulation: PEF |
Grounding Protection: copper bar |
|
Color: grey (support custom made) |
Cooling: AC220V Air Conditioner and DC48V Fans |
|
Coating: anti-corrosion outdoor powder coating |
Accessories Options: PDU, temperature control switch |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 6,000 sets per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: H×W×D 2195×900×900mm
|
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and DC48V fans |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: H×W×D 2195×900×900mm (2) One compartment: equipment compartment (3)With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate (5) With 20mm PEF heat insulation between two walls |
| 2 | Air Conditioner | 1 | Set |
Cooling capacity: 1.5KW, Power supply: AC220V, 50HZ, Model:TC06-150JFH/01 |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | 12038 DC48V |
| 4 | Door Sensor | 2 | PC | One for controlling LED lamp, the other for open door alarm |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 |
| 7 | 35°C temperature control switch | 1 | PC | |
| 8 | Package | 1 | Set | Wooden Case |
2. Description
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.
The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner and fans, installed on front door.
The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Three point lock
Feeder cable and other external cables all use bottom wiring method.
The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
Door hinges use inner hinge mode.
2.7 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
3. Applications
The DDTE082 Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
