| Product Name: | Outdoor Communications Cabinet | Cabinet External Size: | W×D×H 900×900×2200mm |
|---|---|---|---|
| 19 Inch Rack: | 42U | Color: | RAL7035 Grey |
| Material: | Galvanized Steel, Single Wall With 45mm EPS | Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) |
| Surface Treatment: | Outdoor Anticorrosion Powder Coating | Protection Level: | IP55 |
| Service: | OEM ODM | Cooling System: | AC Air Conditioner |
| Warranty: | 12 Month | Installation: | Floor Mounted |
Double Wall Floor Mounted Outdoor Electrical Enclosures Cabinets With Air Conditioner And Fan 42U
1. Floor Mounted Outdoor Cabinet Structure
(1) External Dimension W×D×H 9000×9000×2200mm
(2) One compartment, 42U free space
(3) One front door; with special lock for outdoor cabinet (support padlock)
(4) Material: Galvanized steel, 1.2mm thickness Left, right and back side : Sandwich structure panel, inner panel: 0.5mm, outer panel: 0.5mm; 45mm EPS between two panels Top cover: galvanized steel, inner panel:1.0mm, outer panel:1.2mm, 40mm PEF between two panels; Door and bottom: galvanized steel, inner panel:0.8mm, outer panel:1.5mm, 40mm PEF between two panels;Cabinet base: galvanized steel, 2.0mm thickness
(5) Surface finishing: Degreasing, pickling, phosphoric wash, cleaning, and power coated.
2. 42U Weatherproof Telecom Cabinet Features
- Material: good quality Galvanized steel
- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
- Cabinet load bearing: ≥400kg
- Ingress protection: IP55
- Flame retardance: comply with GB5169.7 test A
- Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
3. Double Wall Enclosure Table 1 Standard Compliance
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |

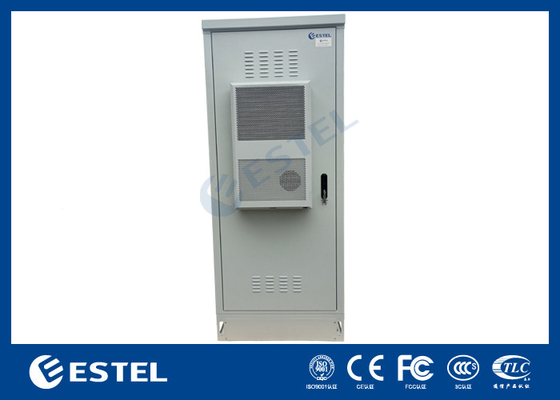

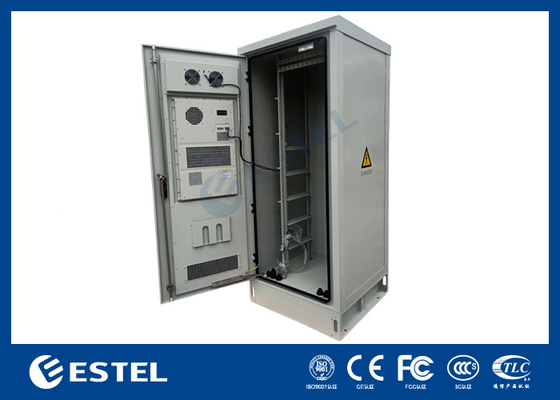

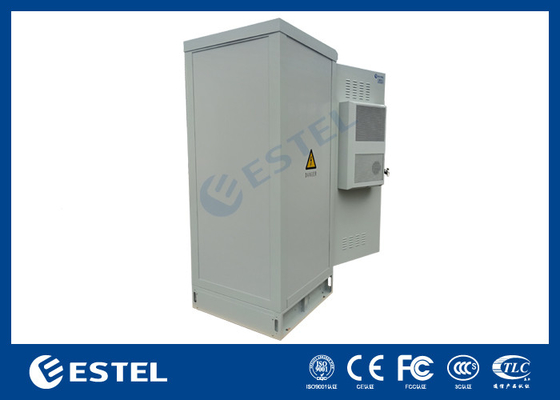

4. Floor Mounted Cabinet Pictures and Diagram
5. Cabinet with Air Condtioner Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W*D*H 900*900*2200mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” rack, 42U | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with 45mm EPS | |
| Heat Insulation | 45mm EPS | |
| Ingress Protection | IP55 | |
| Installation Way | Floor mounted, with installation accessories | |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 95% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
6. Cabinet With Air Conditioner Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Electrical Cabinet | 1 | Set |
(1) External Dimension: W*D*H 900*900*2200mm (2) One compartment: 19”, 42U (3)With one front door, and three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel, single wall with 45mm EPS |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 1500W, Power Supply: 220VAC 50HZ |
| 3 | Fan | 1 | PC | Two 220VAC fan |
| 4 | LED Lamp | 1 | PC | 48VDC |
| 5 | Package | 1 | Set | Wooden Case |
7. Cabinet LED Lamp
LED lamp is installed at the top of the cabinet.
9. Cabinet Air Cooling
Air conditioner
Cooling capacity: 1500W.
Power Supply: 220VAC 50HZ
Installed on front door.
10. Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
