Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized SteelG | Wall: | Single Wall Galvanized Steel 2.0mm |
|---|---|---|---|
| Compartment: | One Compartment | Door: | With One Front Door,one Rear Door |
| Type:: | OEM ODM | Cooling System: | Fan |
| Protection Level: | IP55 | Type: | Equipment Cabinet |
| Light:: | LED With Two Lamp Switch | Color:: | Grey/ Optional |
| High Light: | Outdoor Communication Cabinet 42U,19 Inch Telecom Cabinet IP55,Double Door 19 Inch Telecom Cabinet |
||
42U Outdoor Telecom Cabinet 19inch Communication Rack With Fan Double Door IP55
1.42U Telecom Cabinet Overview
The outdoor cabinets are widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G, smaller size outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub. We provide the Outdoor Cabinet, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.
2. Communication Rack Feature
1. Solid structure with high quality materials;
2. Customized solution design;
3. High protection level IP55, IP65
4. Single layer structure, for outdoor application;
5. Waterproof, sunproof and rainproof, anti-corrosion, durable;
6. Temperature controlling and good cooling solution,options: air conditioner, heat exchanger or fan ;
7. Scratch-proof surface with outdoor powder coating on demand;
8. Easy installation and maintenance;
9. The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
10. All the cables used in the cabinet are made from flame retardant materials.
3. Double Door Cabinet Table 1 Standard Compliance
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |
4.Cabinet Technical Parameters
| Dimension | 600*600*2175mm(W*D*H) |
| Space Capacity | 42U |
| Structure | Single compartment, single layer structure, two doors, one front door and one rear door |
| Material | High quality cold rolled steel |
| Cooling Way | Fan cooling Type,total 4 fans, on front door |
| Color | RAL7035 powder coating |
| Installation | Floor/Ground Mounting |
| Protection Level | IP55 |
| Accessories | LED lamp and switch |
| Application |
Communication base station |
Working Condition
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |

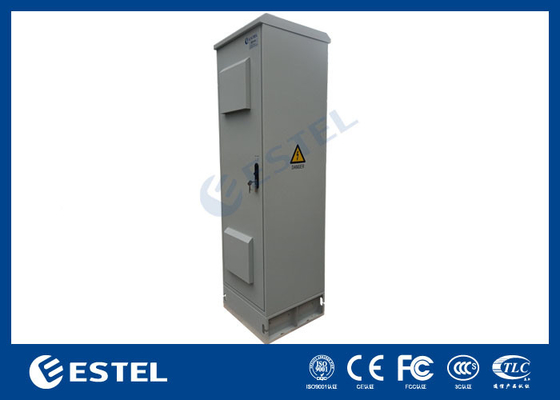

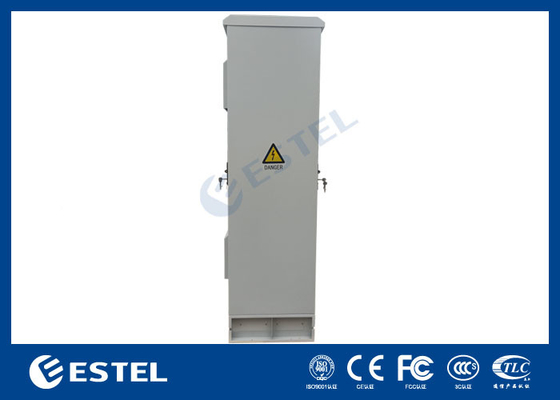

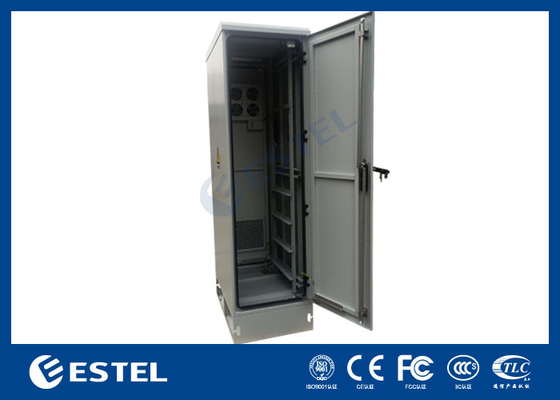

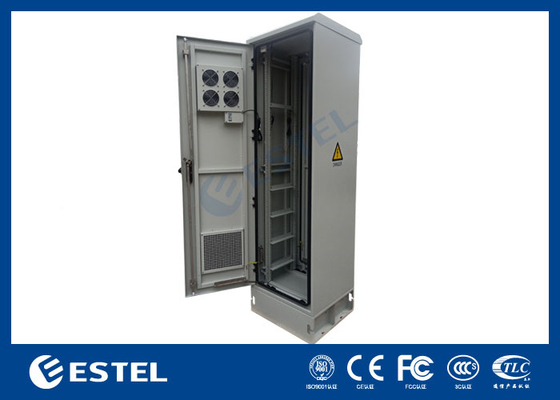

5. Floor Mounted Cabinet Pictures
6.Various cooling system for your choice
7.Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and strong to ensure safe transportation.
8. Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 5,000 sets per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | wooden case |
| Shipping: | by sea, by air, by courier, by land, by train, etc. |
