38U Height Outdoor Data Cabinet Floor Mounted 19 Inch Telecom Cabinet

Outdoor Data Cabinet 19 inch Rack 38U Height Floor Mounted Telecom Enclosure Standard

1. Outdoor data cabinet brief introduction

● Heavy duty outdoor construction

● 38 rack units (RU), standard 19” rail

● Front access (rear access optional)

● Anti-theft three-point locking system, support padlock

● Outdoor powder coating, anti-corrosion

● Standard Color: light grey, RAL7035. Custom color available

● Cable inlet at cabinet bottom

● Include grounding bar

● Include door stopper

● Include four wheels on the bottom

● Optional cooling solutions: fan ventilation, air conditioner, heat exchanger

2. How to design a outdoor data cabinet

Designing an outdoor data cabinet requires special considerations compared to indoor cabinets due to exposure to weather elements and environmental factors. Here are some important details to consider for an outdoor data cabinet:

Weatherproof Design: The outdoor data cabinet must be designed to be weatherproof and resistant to elements such as rain, snow, wind, and extreme temperatures. It should have IP (Ingress Protection) ratings indicating its level of protection against solid objects and liquids.

Material Selection: Choose materials that are durable and corrosion-resistant to withstand outdoor conditions. Common materials for outdoor data cabinets include stainless steel, aluminum, or weatherproof polymers.

Cooling and Ventilation: Implement effective cooling and ventilation systems to maintain optimal operating temperatures for the equipment housed inside the cabinet. Ventilation fans, air filters, and heat exchangers may be necessary to prevent overheating.

Security Features: Ensure that the outdoor data cabinet is secure against unauthorized access and tampering. Consider using locks, security cameras, tamper-proof seals, and alarm systems to enhance security.

Power Management: Implement a reliable power distribution system that can withstand outdoor conditions. Use proper grounding techniques, surge protection devices, and backup power solutions like batteries or solar panels if needed.

Cable Management: Organize and secure cables within the outdoor data cabinet to prevent damage and ensure efficient connectivity. Use waterproof cable glands, cable trays, and cable ties for proper cable management.

Environmental Monitoring: Consider integrating environmental monitoring systems to track temperature, humidity, and other environmental conditions inside the cabinet. This allows for proactive maintenance and timely response to any anomalies.

Lightning Protection: Install lightning protection measures to safeguard equipment from electrical surges caused by lightning strikes. This may include grounding systems, surge protectors, and lightning arrestors.

Remote Management: Incorporate remote monitoring and management capabilities to supervise and control the outdoor data cabinet from a centralized location. This enables real-time monitoring, alerts, and remote troubleshooting.

Compliance with Standards: Ensure that the outdoor data cabinet design complies with industry standards and regulations related to outdoor equipment installations, electrical safety, and environmental protection.

3. Outdoor data cabinet instructions

For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.

This cabinet is 2000mm High and 8000mm Wide and 1000mm Deep. This cabinet is the ultimate choice for outdoor racking requirements.

4. Outdoor data cabinet diagram

5. Standard compliance table

6. Outdoor data cabinet technical parameter

7. Cabinet pictures

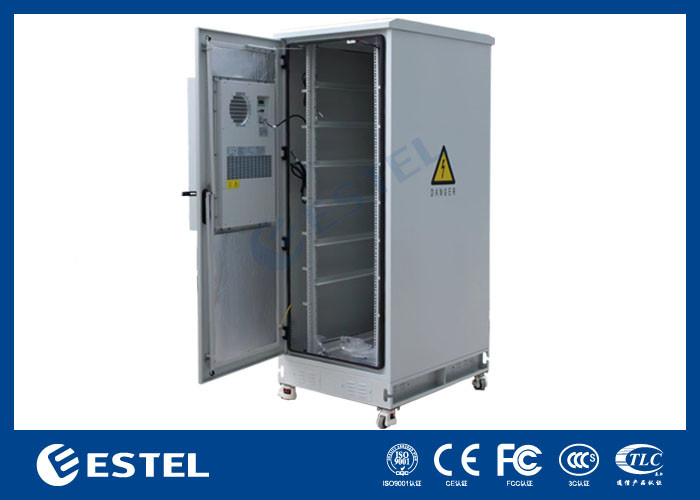

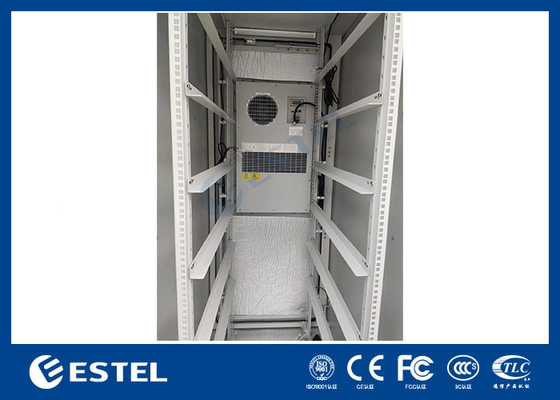

Inside

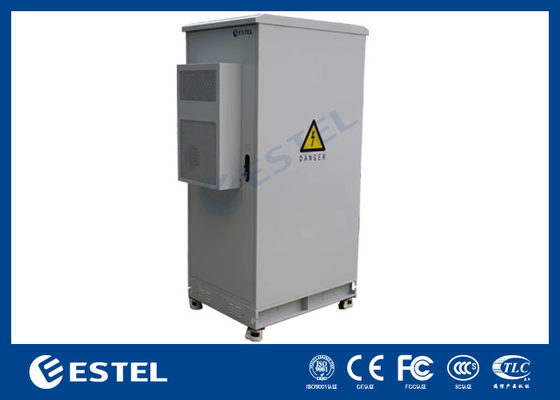

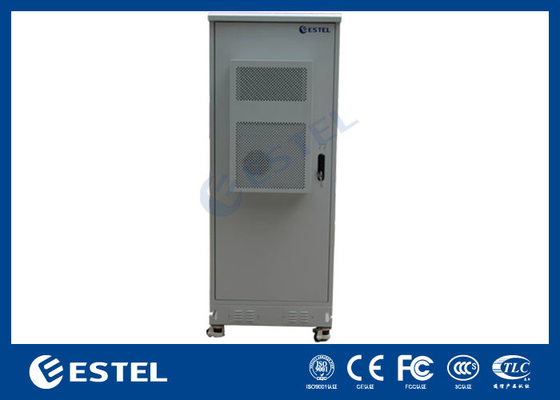

Outside:

8. Air conditioner function:

9. Various cooling system for your choice

• Natural ventilation cooling system
• DC/AC Air conditioner cooling system
• Heat exchanger cooling system
• Fan cooling system
• TEC cooling system
