Product Details:
Payment & Shipping Terms:
|
Protection Level: | IP55 | Application: | Telecommunication, Base Station, Electronic Ect, Outdoor Electronic Equipment, Environmental |
---|---|---|---|
Color: | RAL7035/ Optional | Size: | WDH: H1000mm×W650mm×D650mm |
Type: | Environmental Outdoor Cabinet | Service: | OEM ODM |
Cooling System: | Air Conditioner | Warranty: | 1 Year |
Material: | Galvanized Steel, 1.2mm Thickness | IP Level: | Ip55 |
Hinge: | Inner Hinge | Mounting Type: | Floor Mount |
High Light: | Outdoor Telecommunication Cabinet IP55,Floor Mount Telecommunication Cabinet,Galvanized Steel 19'' Rack |
16U Galvanized Steel Outdoor Telecommunication Cabinet 19 Rack With Air Conditioner IP55
1. Introduction Of 16U Outdoor Environmental Cabinet
ET6565100-EQ is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. customer's telecom equipments can be accommodated inside the cabinet. The cabinet can provide power for active telecom equipments and passive telecom equipments at the same time.
2. Main Features Of 16U Environmental Cabinet
3. Specification Of Telecom Cabinet
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension: W×D×H 650×650×1000mm |
Layout | 1 compartment | |
Equipment Installation Method | 19” rack ,16U | |
Door | With one front door and anti-theft three point lock for outdoor cabinet (support padlock) | |
Material |
Galvanized steel, 1.2mm thickness |
|
Structure | Assembled | |
Mounting type | Floor mounting | |
IP grade | IP55 | |
Temperature Control |
Cooling |
Air conditioner |
Lighting | LED lamp |
AC220V 50Hz |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Cabinet Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension:W×D×H 650×650×1000mm |
2 | Air conditioner | 2 | PC | AC220V 50Hz installed on the front door |
3 |
LED Lamp | 1 | PC | AC220V 50Hz |
4 |
LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
5 | Package | 1 | PC | Wooden Case |
5. Working condition
Item Technical Parameter
Working temperature range: -40℃~ +60℃
Sorage temperature range: -50℃~ +70℃
Transport temperature range: -50℃~ +70℃
Relative Humidity 5%-- 100%
Air Pressure 62kpa~ 101kpa (similar to altitude 0m ~ 5000m)
Radiation Intensity 1400* (1±5%) W/m2
6. Mounting And Fastening
· Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip stainless steel bolts.
· Door hings use inner hinge mode.

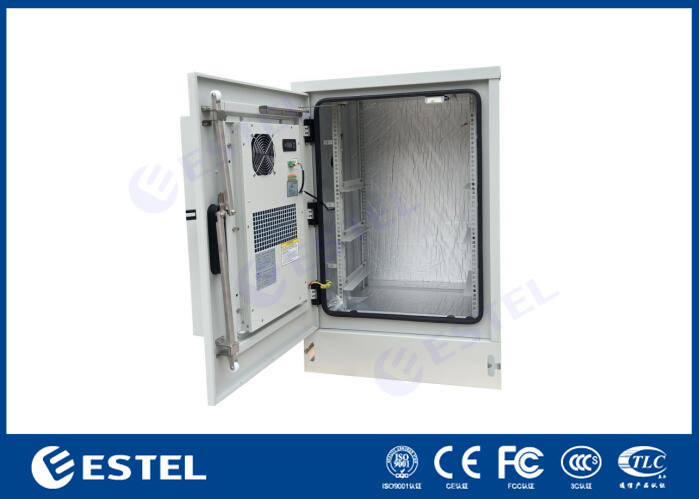

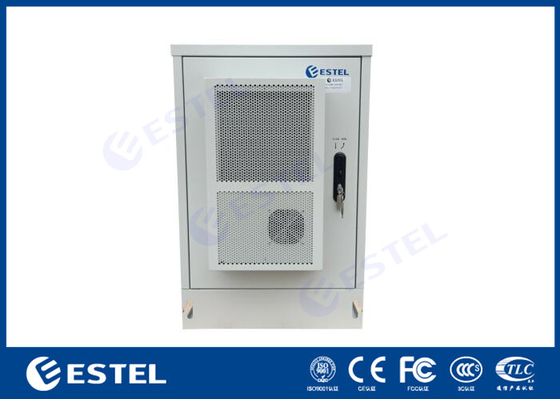

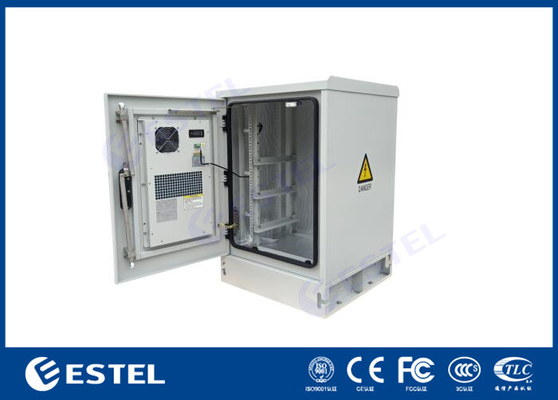

7. Cabinet Picture
8. Theft Proof Design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Anti-theft three-point locking system
9. FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air or express which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
