| Input Voltage: | AC220V | Application: | Transmission Device,Satellite Communication Ground Station |
|---|---|---|---|
| Input Frequency: | 45Hz,50Hz,65Hz | Maximum Input Current: | 7.5A |
| Output Voltage: | 42VDC,53.5VDC,58VDC | Power Factor: | 0.99 |
| Ripple (peak To Peak Value): | 200mV | Input Voltage Range: | 90Vdc, 390Vdc |
| High Light: | 1000W Industrial Power Supply,1000W Telecom Power Supply,Telecommunication Power Supply System |
||

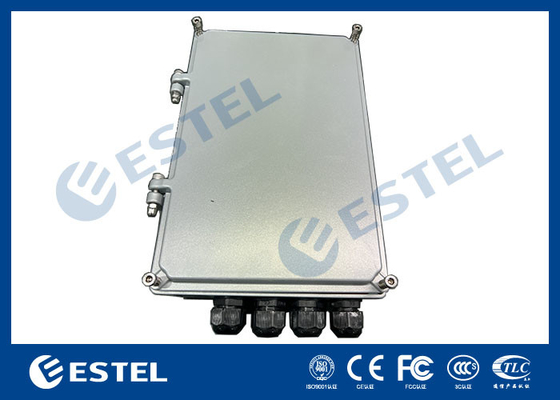

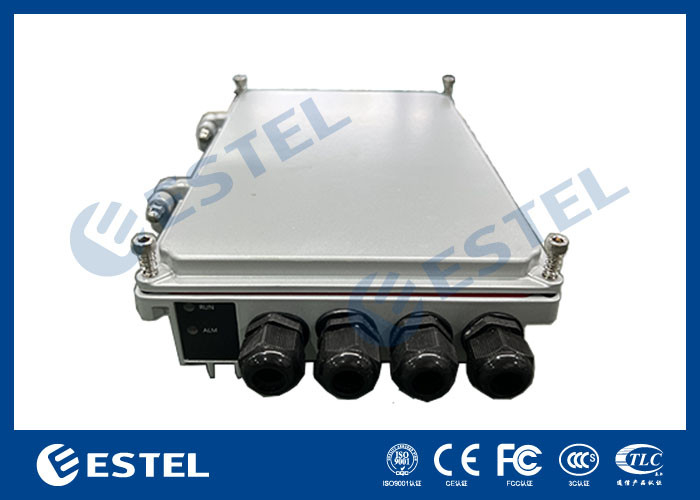

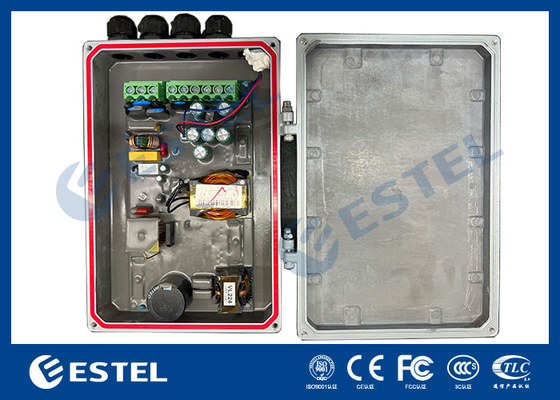

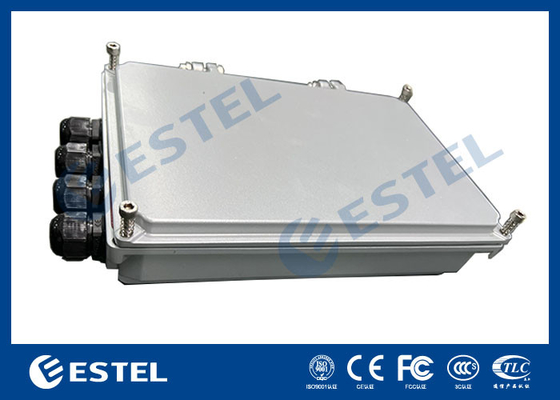

1000W Custom Remote Module Power Supply Industries With Short Circuit Protection
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | Input Voltage: AC220V |
| Brand Name: ESTEL | Output Voltage: 42VDC,53.5VDC,58VDC |
| Model Number: EVWPS54301000 | Output Power: 1000W |
| Product Name: Remote Module Power Supply | Input Frequency: 45Hz,50Hz,65Hz |
| Certification: ISO9001, CE, 3C, FCC, TLC | Input Current: 7.5A |
| Application: transmission device,Satellite communication ground station | Power Factor: 0.99 |
1. Description
The EVWPS54301000 industrial power supply is controlled by the INPUT air switch and then undergoes lightning protection before entering the rectifier module. The INPUT protects the power supply from overload and short circuit.
The user's load is connected to the DC output terminal of the power system, which controls the breaking of the customer's equipment and provides overload and short-circuit protection.
2. Technical Parameters
| Ambient Conditions | |||||
| Parameter | Min | Typical | Max | Unit | Note |
| Operating temperature | -22 | 55 | °C | ||
| Storage temperature | -40 | 80 | °C | ||
| Operating relative humidity | 10 | 90 | % | Relative humidity,non-condensing | |
| Altitude | 3000 | m | |||
| Atmospheric pressure | 70 | 106 | KPa | ||
| Cooling | nature cooling | ||||
| Input | |||||
| Parameter | Min | Typical | Max | Unit | Note |
| Input voltage range | 90 | 220 | 280 | Vac | |
| Maxmium Input current | 7.5 | A | |||
| Input frequency | 45 | 50 | 65 | Hz | |
| Power factor | 0.99 | Rated input/rated load | |||
| Basic output characteristics | ||||||
| Parameter | Min | Typical | Max | Unit | Note | |
| Output voltage | 42 | Vdc | ||||
| 53.5 | ||||||
| 58 | ||||||
| Output current range | 0 | 20 | A | |||
| Ripple (peak to peak value) | 200 | mV | At rated input/output, With 10UF electrolytic capacitor, and a 0.1 uF film capacitor, the bandwidth of oscilloscope is 20MHZ | |||
| Load regulation | ±1 | % | ||||
| Voltage stabilization accuracy | ±1 | % | ||||
| Other output characteristics | |||||
| Parameter | Min | Typical | Max | Unit | Note |
| Output power | 1000 | W | Full load output | ||
| Output efficiency | 94 | % | 220V ac or 310Vdc input | ||
| Temperature coefficient | 0.02 | %/°C | |||
| Turn-on/off overshoot | ±5 | % | |||
| Dynamic response overshoot | ±5 | % | 25% ~ 50%-25% or 50% ~ 75%-50% load change, load mutation rate is 0.1 A/ūs, in part outside of the realm of the output voltage stabilized accuracy | ||
| Dynamic response recovery time | 200 | ūS | |||
| Turn-on output delay | 1 | 8 | S | Rated input voltage, rated load | |
| Protection | |||||||
| Parameter | Min | Typical | Max | Unit | Note | ||
| AC input overvoltage protection | protection point | 285 | 305 | Vac | With 15A test, self-recovery, return difference is not less than 5V | ||
| recovery point | 280 | ||||||
| DC input overvoltage protection | protection point | 220 | 285 | 390 | Vdc | ||
| recovery point | 396 | ||||||
| AC input undervoltage protection | protection point | 85 | Vac | With 4A test, self-recovery, return difference is not less than 5V | |||
| recovery point | 90 | ||||||
| DC input undervoltage protection | protection point | 120 | Vdc | ||||
| recovery point | 128 | ||||||
| Output overvoltage protection point | 58.5 | 59 | 61.5 | V | Locked. (Output external overvoltage, the module will not lock). | ||
| Output current limit protection | Io*1.05 | Io*1.1 | Io*1.15 | A | self-recovery | ||
| Short circuit protection | Can be short-circuited for a long time; hiccups after detecting short-circuit | self-recovery | |||||
| Power supply over temperature protection | Can automatically recover when the ambient temperature is 65℃ | ℃ | |||||
| Safety and insulation grade | ||
| Parameter | Requirement | Note |
| Input – output | 3000Vac/10mA//1min | No flashover, no breakdown |
| Input – earth | 1500Vac/10mA//1min | |
| Output – earth | 500Vac/10mA//1min | |
| Grounding resistance | ＜0.1Ω | |
| Insulation resistance | ≥10MΩ | Under normal atmosphere, relative humidity: 90%, testing voltage: 500Vdc conditions, the insulation resistance of input to output, input to earth and output to earth shall be no less than 10MΩ. |
| Leakage current | ≤3.5mA | |
| Mechanical specifications | |
| L×W×H (mm) | As the following diagram |
| Weight (kg) | ≤5Kg |
